CJ1W-OD212 16-Point PNP Transistor Output Module 0.5A | Omron

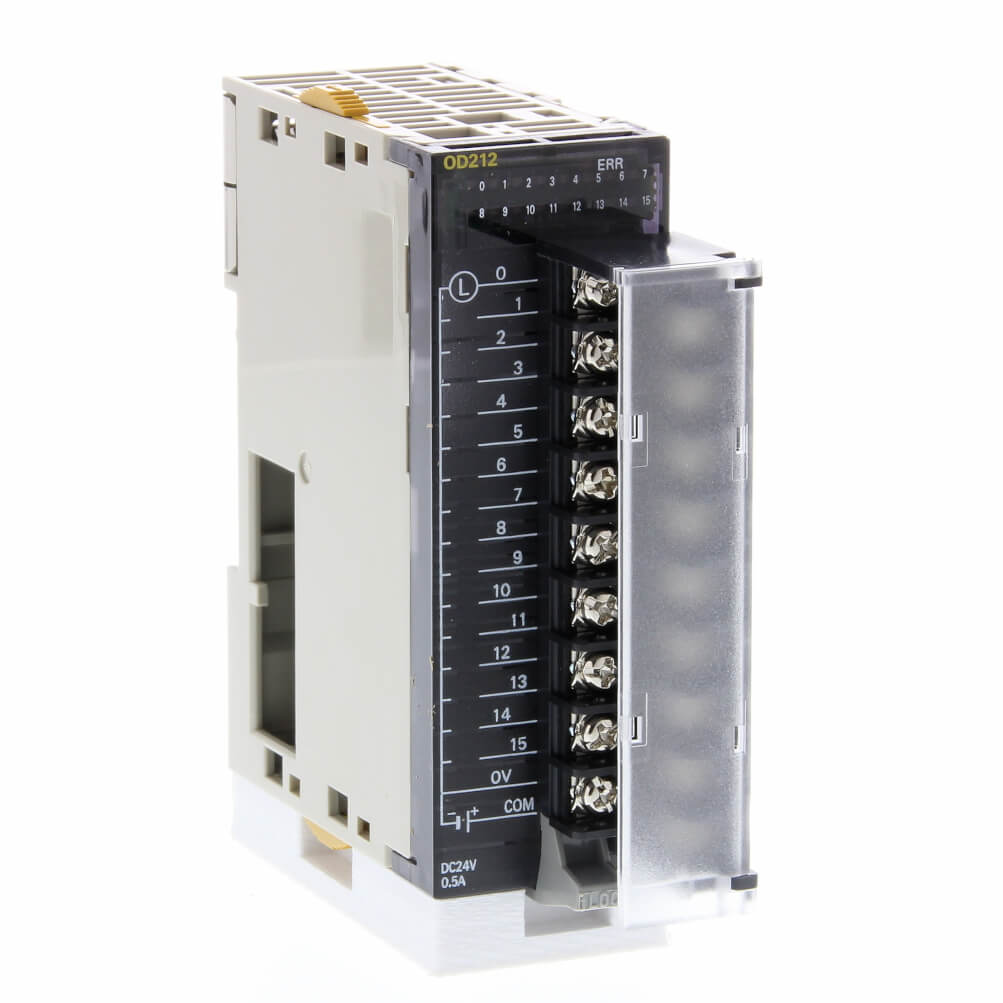

The Original New Omron CJ1W-OD212 is a 16-point PNP transistor output module for the SYSMAC CJ series PLC system. Designed for high-speed switching and reliable actuator control, it provides 16 sourcing outputs rated at 0.5 A per point with built-in load short-circuit protection. The module features a removable screw terminal block for simplified wiring and maintenance. Part of the CJ-series I/O system, it is fully compatible with CJ1, CJ2, and NJ series CPU units.

Core Engineering Highlights:
16 PNP (sourcing) transistor outputs | 0.5 A per point / 5.0 A per unit | 20.4–26.4 V DC output voltage range | 0.5 ms ON / 1.0 ms OFF response time | Load short-circuit protection with automatic restart | Internal current consumption: 100 mA max. @ 5 V DC | Removable screw terminal block | 90 x 31 x 89 mm | 120 g weight

Key Features:

• Original New Omron CJ1W-OD212 module

• 16 PNP (sourcing) transistor outputs for 24 V DC loads

• 0.5 A per point / 5.0 A per unit output capacity

• 20.4–26.4 V DC operating load voltage range

• 0.5 ms max. ON response time / 1.0 ms max. OFF response time

• Load short-circuit protection: detection current 0.7 to 2.5 A, automatic restart after error clearance

• Removable screw terminal block for easy wiring and maintenance

• 1 word allocation in I/O memory

• 16 points / 1 common circuit arrangement

• Internal current consumption: 100 mA max. @ 5 V DC

• External power supply: 20.4–26.4 V DC, 40 mA min.

• ERR indicator lights when overcurrent is detected

• DIN rail mounting for control cabinet installation

• CE, UL, cULus, NK, Lloyd's certified

Applications:

• High-speed switching of solenoids, relays, and actuators

• Conveyor and material handling systems

• Packaging machinery and assembly lines

• Factory automation and machine control

• OEM equipment requiring reliable PNP transistor outputs

• General industrial automation and process control

Technical Specifications:

System Compatibility:

• Compatible with Omron SYSMAC CJ series PLCs (CJ1, CJ2)

• Compatible with NJ series controllers

• Uses CJ-series I/O bus

• Mounts on CPU rack or expansion rack

• CJ1W-OD212 replaces CQM1-OD212 (requires full system migration to CJ series)

Related Products:

• CJ1W-ID211 – 16-point DC input module

• CJ1W-OD211 – 16-point NPN transistor output module (sinking)

• CJ1W-OC211 – 16-point relay output module

• CJ1W-OD232 – 32-point PNP transistor output module (MIL connector)

• CJ1W-OD212(SL) – Same specifications with screwless clamp terminal

• CJ1W-BC103 – 3-slot CPU rack

• CJ1W-PA205R – Power supply unit, 100-240 V AC, 25 W
