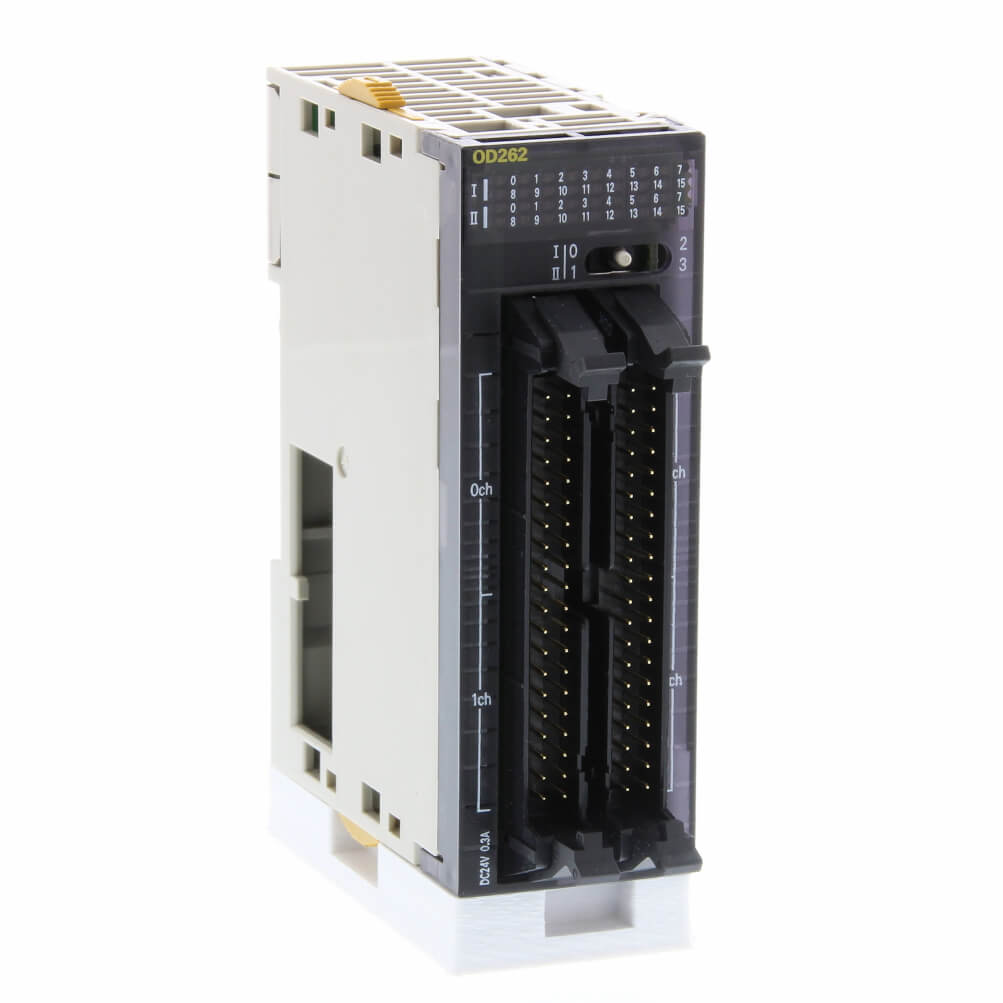

Omron CJ1W-OD262 CJ Series 64‑Point PNP Transistor Output Unit MIL Connector

Omron CJ1W‑OD262 is a high‑density digital output unit for SYSMAC CJ‑series PLC systems. 64 PNP (sourcing) transistor outputs rated at 0.3 A per point for driving external loads such as solenoids, indicator lights, relays, and small actuators. 16 points per common (4 A per common total). MIL connector interface for high‑density wiring with 2 × 40‑pin connectors. DIN rail mounting. Suitable for general output expansion, high‑speed output tasks, and space‑constrained machine control panels in industrial automation.

Applications:

• High‑density output expansion for CJ‑series PLC systems

• Actuator control in packaging machinery and material handling

• Solenoid and relay switching in factory automation

• Signal output for high‑speed industrial processes and production lines

Core Specifications:

• Number of outputs: 64 (PNP transistor, sourcing)

• Rated output voltage: 24 V DC (permitted range 12 to 24 V DC / 10.2 to 26.4 V DC)

• Output current: 0.3 A per point, 1.6 A per common (16 points/common), 6.4 A per unit total

• Output ON delay: 1 ms max.

• Output OFF delay: 1 ms max.

• Residual voltage (ON): ≤ 1.5 V

• Leakage current (OFF): ≤ 0.1 mA

• Isolation: Photocoupler isolation between internal circuits and outputs

• Short‑circuit protection: ✔

• External connection: 2 × MIL40 connectors (40‑pin, not included)

• Word allocation: 4 words

• Internal current consumption: 0.17 A at 5 V DC

• Mounting: DIN rail (35 mm)

• Protection rating: IP20

• Dimensions (W × H × D): 31 mm × 90 mm × 83.6 mm

• Weight: approx. 110 g

• Operating temperature: 0 °C … 55 °C

• Certifications: CE, cULus, NK, Lloyd, RoHS

Advanced Specifications:

• Protection circuits: Short‑circuit protection, overcurrent protection

• Output status indicators: LEDs for each output point

• Isolation method: Photocoupler isolation

• Dielectric strength: refer to product manual

• Insulation resistance: refer to product manual

• Storage temperature: –20 °C … 75 °C

• Operating humidity: 10 % … 90 % (non‑condensing)

System Integration:

• This output unit belongs to the Omron SYSMAC CJ series.

• Compatible with CJ1, CJ2 and NJ series CPU units (CJ1W‑OD262 / OD263 for CJ/NJ controllers).

• Installs on CPU Rack or Expansion Rack via CJ I/O Bus.

• Requires MIL40 connectors and compatible cables (XW2Z‑100K series) or terminal block conversion units (XW2D‑40G6) for field wiring – not included with the unit.

• PNP output configuration requires external 24 V DC power supply for loads.

Related Products:

• XW2Z‑100K – I/O connecting cable, MIL40 connector, 1 m length (2 cables required)

• XW2D‑40G6 – Connector terminal block conversion unit (slim type) for MIL40 interface

• CJ1W‑ID262 – 64‑point DC input unit, same MIL40 connector interface

• CJ1W‑OD231 – 32‑point PNP transistor output unit (lower density)

• CJ1W‑OD261 – 64‑point PNP transistor output unit with Fujitsu/OTAX connector
