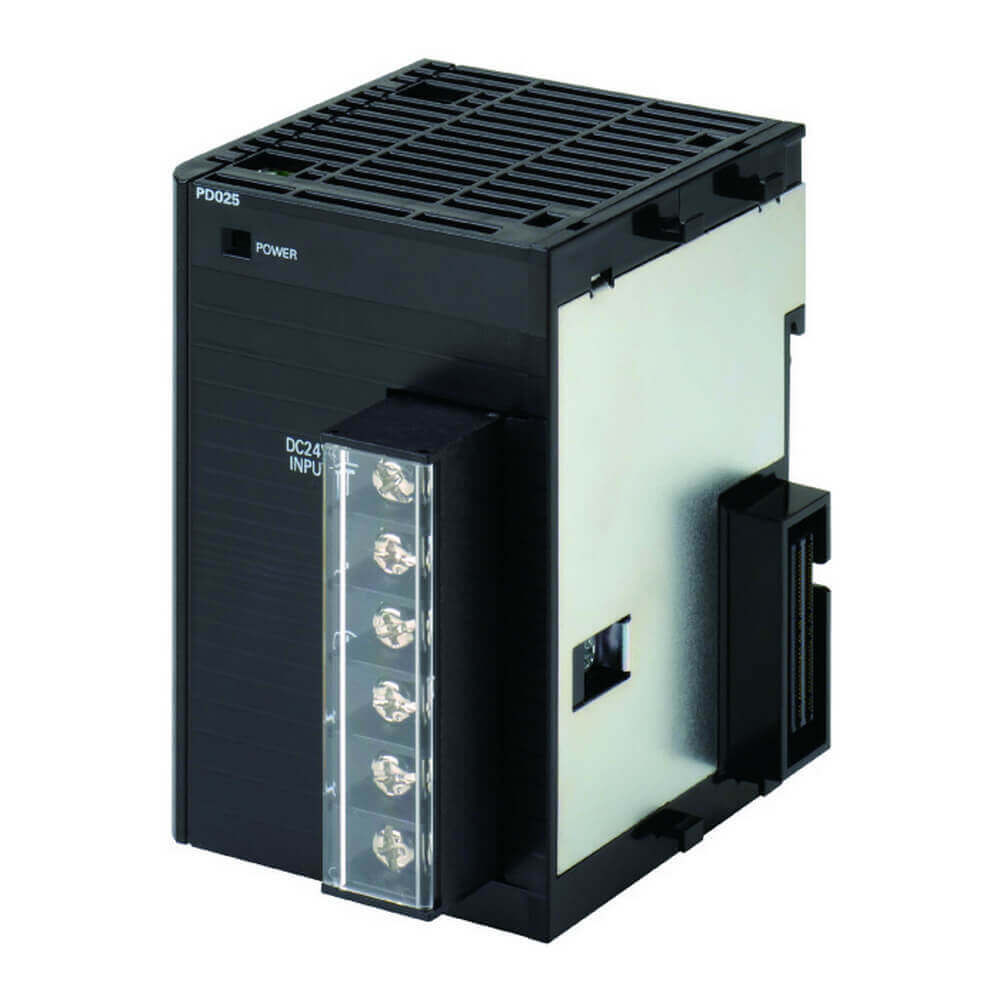

Omron CJ1W-PD025 CJ Series DC Power Supply Unit 24V 25W

Omron CJ1W-PD025 is a DC power supply unit for SYSMAC CJ series PLC systems. Converts 24 V DC input to backplane power (5 V DC and 24 V DC) for CPU and I/O racks. Provides 25 W total output power. Mounts to the left of the CPU unit on the CPU rack (first slot). Intended for industrial automation systems requiring DC power supply in machine control panels.

Applications:

• Rack power supply for CJ series CPU and I/O racks

• 24 V DC powered automation cabinets and control panels

• Machine automation and industrial control systems

• Replacement of existing CJ1W-PD025 power supplies

Core Specifications:

• Input voltage: 24 V DC (range 21.6‑26.4 V DC)

• Output power: 25 W total

• Output voltages: 5 V DC (backplane), 24 V DC (internal)

• Output current: 5 V DC: 5 A, 24 V DC: 0.8 A

• RUN output: No

• Replacement notification function: No

• Mounting: DIN rail (35 mm)

• Connection: Screw terminal block

• Protection rating: IP20

• Dimensions (W × H × D): 60 mm × 90 mm × 81.6 mm

• Weight: approx. 200 g

• Operating temperature: 0 °C … 55 °C

System Integration:

• This power supply unit belongs to the Omron SYSMAC CJ series.

• Installs to the left of the CPU unit on the CPU rack (first slot).

• Compatible with CJ series CPU racks, I/O racks, CPU units, I/O units and Special I/O Units.

• Cannot be used with Machine Automation Controller NJ‑series CPU units.

Related Products:

• CJ1W‑PA205R – AC power supply unit, 100‑240 V AC, 25 W, with RUN output

• CJ1W‑PA202 – AC power supply unit, 100‑240 V AC, 14 W

• CJ1W‑PD022 – DC power supply unit, 24 V DC, 19.6 W
