CJ1W-SRM21 CJ Series CompoBus/S Master Unit | Omron

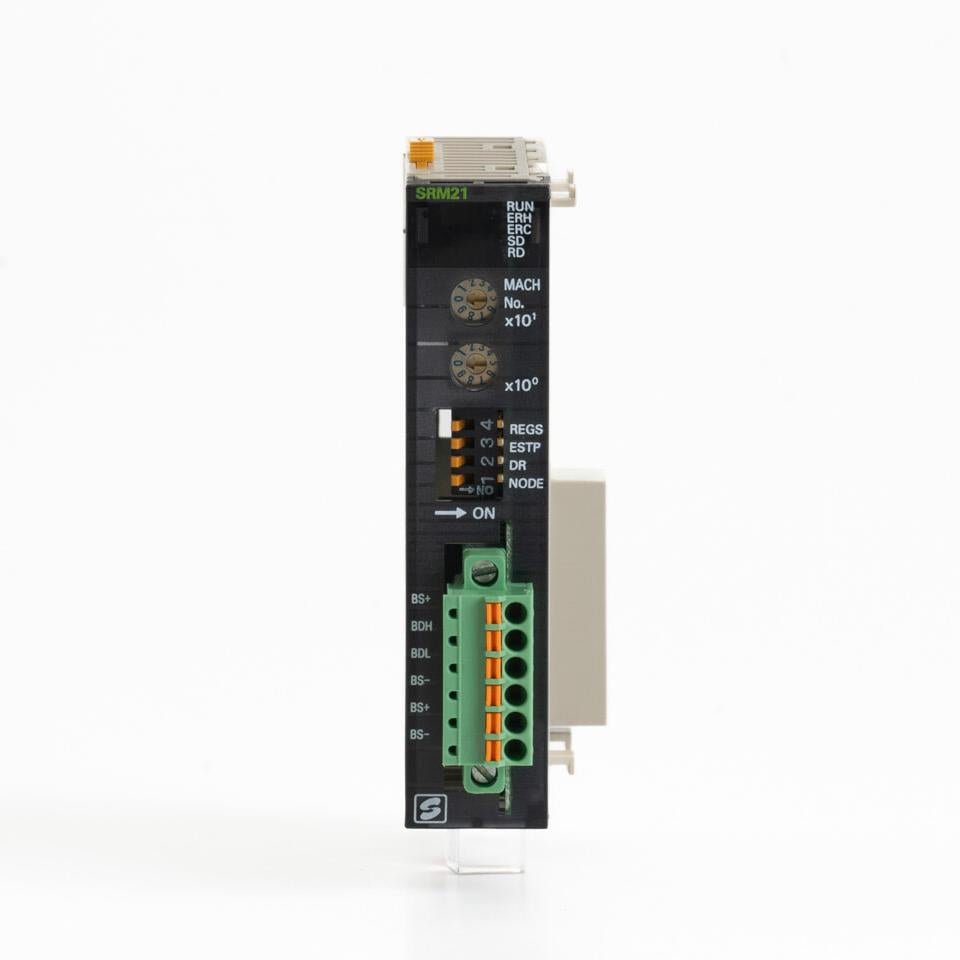

The Original New Omron CJ1W-SRM21 is a CompoBus/S Master Unit for the SYSMAC CJ series programmable logic controller (PLC) platform, designed to reduce wiring between sensors, actuators, and the PLC by serving as the communication master for a high-speed remote I/O system. As a CJ-series Special I/O Unit, it supports up to 256 I/O points and 32 slave devices per master unit. Providing two selectable communications modes—High‑speed Communication Mode (750 kbps) and Long‑distance Communication Mode (93.75 kbps)—it offers flexibility for distributed I/O control in machine automation, packaging machinery, and material handling systems. The unit mounts on a DIN rail via a spring terminal and supports CE, cULus, NK, and Lloyd‘s certifications.

⚠️ Important Product Status Note:

This product has been discontinued by Omron. The end-of-order date was August 2022. The recommended replacement is the CJ1W-CRM21. This product remains available for maintaining existing installations while supplies last. For new designs, please consider the recommended replacement model.

Core Engineering Highlights:
256 (128 inputs / 128 outputs) or 128 (64 inputs / 64 outputs) I/O points (switch‑selectable) | 32 slaves per master | Communications cycle time: 0.5 ms at 750 kbps | Communications distance: up to 500 m at 93.75 kbps | Two communication modes: High‑speed (750 kbps) and Long‑distance (93.75 kbps) | Supports 2‑conductor VCTF, 4‑conductor VCTF, and Special Flat Cable | Manchester coding with error control (Manchester code check, frame length check, parity check) | 20 words allocated for 256 I/O (8 input, 8 output, 4 status) / 10 words for 128 I/O (4 input, 4 output, 2 status) | Weight: 0.09 kg (0.19 lbs) | IP20 protection | 0°C to +55°C operating temperature

Key Features:

• Original New Omron CJ1W-SRM21 module

• CompoBus/S Master Unit for high-speed ON/OFF remote I/O bus

• Supports up to 256 I/O points (128 inputs and 128 outputs) or 128 I/O points (64 inputs and 64 outputs) via switch selection

• Supports up to 32 slave devices per master unit

• Two communication modes: High‑speed Communication Mode (750 kbps) and Long‑distance Communication Mode (93.75 kbps)

• Communications cycle time as fast as 0.5 ms

• Communications distance up to 500 m in long‑distance mode

• Free wiring with any branching method up to 200 m in long‑distance mode

• Supports up to 40 Master Units per CPU

• Node address: 8 addresses per node

• Status information: Communications Error Flags and Participation Flags

• DIN rail mounting with spring terminal

Applications:

• Connecting remote I/O slaves (sensors, actuators, limit switches, pilot lamps) in machine automation

• Factory automation systems requiring distributed I/O points

• Packaging machinery and material handling systems

• Assembly lines and conveyor control with remote I/O modules

• High-speed remote I/O bus systems for sensors and actuators

Technical Specifications:

Communications Distance:

System Compatibility:

• Compatible with Omron SYSMAC CJ1, CJ2, and CS1 series CPU units

• Not compatible with Machine Automation Controller NJ‑series CPU units

• Uses CJ-series I/O bus and mounts on CPU rack or expansion rack

• When using as a replacement for the discontinued CQM1-SRM21-V1, the entire I/O system must be replaced with CJ‑series hardware

• I/O power supply voltage: 24 V DC (from connected slaves, not supplied by master unit)

• Compatible with CompoBus/S remote I/O slave units: SRT2 series, SRT1 series, DRT2 series

• Programming software: CX-Programmer (CX-One) / Sysmac Studio

Related Products:

• CJ1W-CRM21 – CompoBus/S Master Unit (recommended replacement)

• CS1W-CRM21 – Recommended substitute (alternative for CJ1W-SRM21)

• CJ1W-SRM21 – Current model (obsolete, no longer manufactured)

• CJ1W-PA205R – Power supply unit for CJ series CPU rack

• SRT1 Series / SRT2 Series – CompoBus/S remote I/O slave units

• CJ1W-DRM21 – DeviceNet Master Unit for CJ series
