CJ2M-MD211 Pulse I/O Module NPN 10 Inputs 6 Outputs MIL Connector | Omron

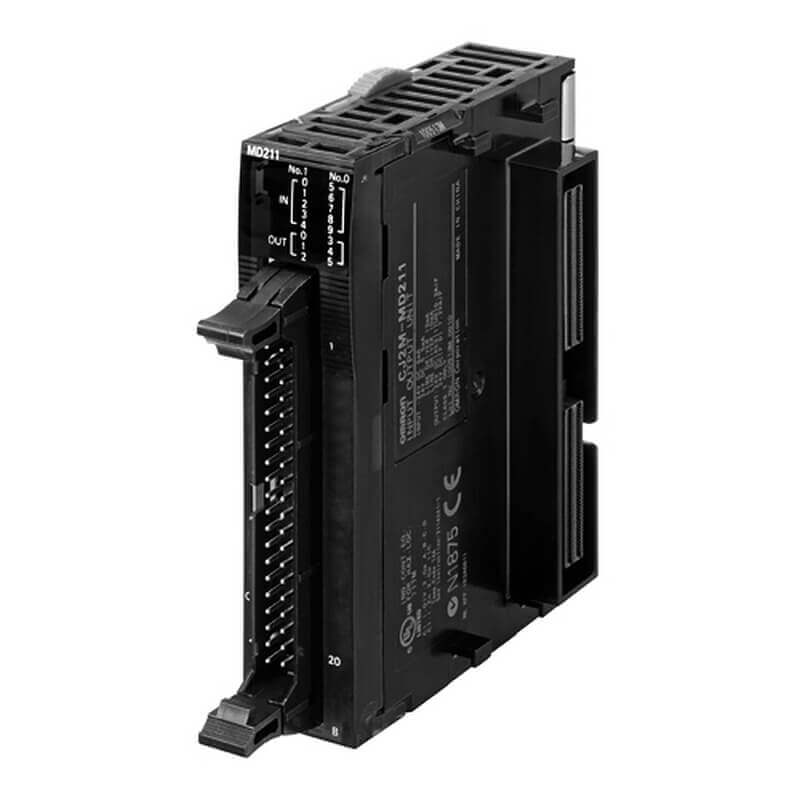

The Original New Omron CJ2M-MD211 is a dedicated pulse I/O module for CJ2M CPU units, providing high-speed positioning and motion control capabilities in a compact 20 mm width. Featuring 10 NPN inputs (four configurable as interrupt/quick-response inputs and two as high-speed counter inputs) and 6 NPN outputs (two pulse outputs, two PWM outputs, and two standard transistor outputs), this module enables multi-axis positioning, high-speed counting, and PWM control for demanding machine automation applications. The MIL 40‑pin connector (not included) provides high-density wiring for space‑efficient control panels.

Core Engineering Highlights:
10 NPN inputs (4 interrupt/quick-response + 2 high-speed counter inputs) | 6 NPN outputs (2 pulse, 2 PWM, 2 standard) | 2 kHz max pulse output frequency | Up to 4 axes positioning (2 modules max) | High-speed counter: 50 kHz differential / 100 kHz single-phase | MIL 40‑pin connector interface | 90 × 20 × 66.3 mm | 70 g | CJ CPU Bus connection | CPU hardware V2.0 or higher required

Key Features:

• Original New Omron CJ2M-MD211 module

• NPN (sinking) output type

• 10 input points: 4 interrupt inputs (30 μs min pulse width), 4 quick-response inputs, and 2 high-speed counter inputs

• 6 output points: 2 pulse outputs for stepper/servo positioning, 2 PWM outputs for analog‑type control, 2 standard transistor outputs

• Maximum pulse output frequency: 2 kHz

• High-speed counter: up to 50 kHz (differential phase) / 100 kHz (single phase)

• Counter modes: phase difference (×4), pulse + direction, up/down pulse, increment pulse

• 32‑bit count value with linear and circular (ring) modes

• MIL 40‑pin connector interface for high-density wiring

• Input time constant: 0, 0.5, 1, 2, 4, 8, 16, 32 ms (selectable in PLC system settings, default 8 ms)

• Detachable I/O terminal block

• Compact 20 mm width for space-saving installation

• Up to 2 pulse I/O modules per CJ2M CPU unit

• CE, UL, CSA, NK, LR, DNV, BV, KR, ABS certified

Applications:

• Stepper motor and servo motor positioning control (up to 4 axes with 2 modules)

• High-speed counting for encoder feedback in motion control

• PWM control for variable speed drives and analog-type actuators

• Interrupt input for high-speed event response

• Quick-response input for time-critical signal detection

• Packaging machinery and assembly automation

• Material handling and conveyor systems

• Legacy CJ1M system upgrades (replaces CQM1H-PLB21 and CJ1M pulse I/O functionality)

Technical Specifications:

System Compatibility:

• Compatible with Omron CJ2M CPU units (hardware version 2.0 or higher required)

• Maximum of 2 pulse I/O modules per CJ2M CPU unit

• Requires 40‑pin MIL connector (XG4M-4030-T, not included)

• Compatible with CJ-series power supplies, I/O modules, and CPU racks

• Programming and configuration via CX‑Programmer (CX-One software suite)

• CJ2M CPU hardware V2.0 or later supports CJ2M-MD211/MD212 parameter settings

Accessories (not included, order separately):

• XG4M-4030-T – MIL 40-pin connector (pressure-welded type)

• XW2D-40G6 – Connector-terminal block conversion unit (slim type)

• XW2B-40G4 – Flat cable connector type, M3 screws, 40 poles

• XW2Z-100K / 200K – I/O connecting cables for MIL connector

Related Products:

• CJ2M-MD212 – Pulse I/O module, PNP (sourcing) output type

• CJ2M-CPU11 to CPU15 – CJ2M CPU units (hardware V2.0 or higher)

• CJ2M-CPU31 to CPU35 – CJ2M CPU units with built-in EtherNet/IP

• CJ1W-TER01 – End cover for CJ-series systems

• CJ1W-PA205R – Power supply unit for CJ-series CPU rack

• XG4M-4030-T – MIL 40-pin connector (pressure-welded type)
