CP1W-40EDT1 CP Series I/O Expansion Unit 24 Inputs 16 PNP Outputs | Omron

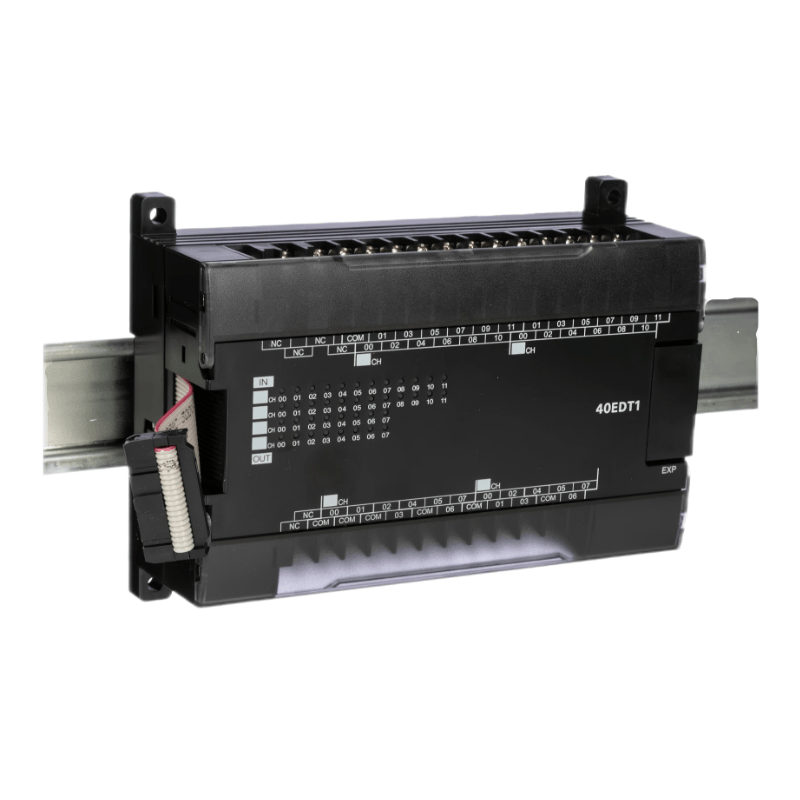

The Original New Omron CP1W-40EDT1 is a digital I/O expansion unit for the CP series programmable logic controller (PLC) platform, designed to expand the I/O capacity of CP1E, CP1L, and CP1H CPU units. It provides 24 digital inputs (24 V DC, PNP/NPN configurable) and 16 PNP transistor outputs (0.3 A per point) in a single compact module. The unit connects directly to the right side of the CPU or to other CP1W expansion units, enabling scalable I/O expansion for machine automation, conveyor systems, packaging equipment, and general factory automation applications.

Core Engineering Highlights:
24 digital inputs (24 V DC, PNP/NPN configurable) | 16 PNP transistor outputs (0.3 A per point) | 0–32 ms configurable input response time | 4.5–30 V DC permitted output voltage | 150 mm width | 90 mm height | 50 mm depth | 320 g weight | IP20 protection | 0°C to +55°C operating temperature

Key Features:

• Original New Omron CP1W-40EDT1 expansion unit

• 24 digital inputs (24 V DC, PNP/NPN configurable)

• 16 PNP transistor outputs (sourcing, 0.3 A per point)

• Input response time configurable: 0–32 ms (PLC settings)

• Output voltage range: 4.5–30 V DC

• Removable screw terminal block for easy wiring

• Direct connection to CP1E, CP1L, CP1H CPU units

• Up to 3 expansion units can be connected to CP1H CPU (max 160 I/O points)

• DIN rail mounting for control cabinet installation

• IP20 protection for control cabinet environments

• 0°C to +55°C operating temperature

• CE, UL, CSA certified

• RoHS compliant

Applications:

• Digital signal acquisition from sensors, pushbuttons, and limit switches

• High-speed output control for solenoids, relays, and indicator lights

• Conveyor and material handling systems

• Packaging machinery and assembly lines

• Factory automation and machine control panels

• OEM equipment requiring CP series I/O expansion

Technical Specifications:

System Compatibility:

• Compatible with Omron CP1E CPU units

• Compatible with Omron CP1L CPU units

• Compatible with Omron CP1H CPU units

• Connects directly to the right side of the CPU unit or to other CP1W expansion units

• Up to 3 CP1W expansion units can be connected to CP1H CPU (max 160 I/O points)

• Uses CP1W expansion bus

• Programming software: CX-Programmer (CX-One) / Sysmac Studio
