CP1W-AD041 4-Channel Analog Input Module ±10V/0-20mA 1/6000 | Omron

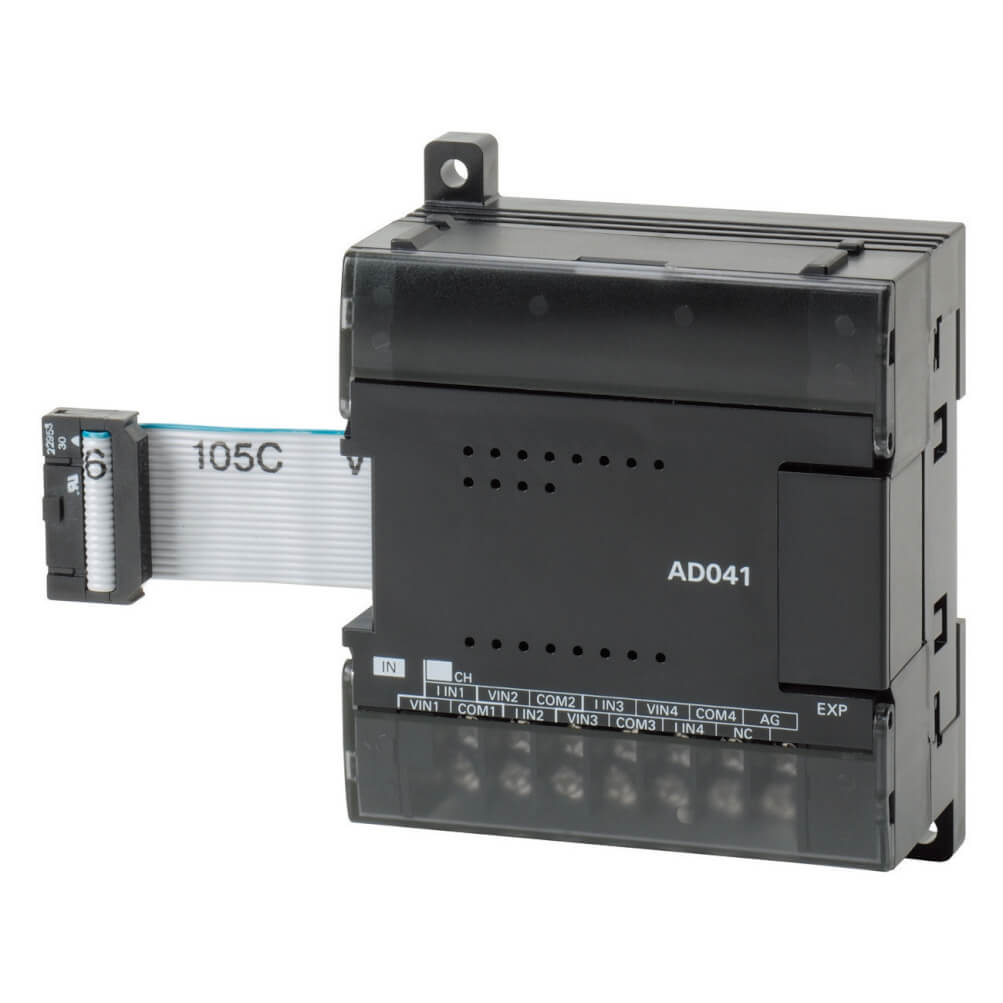

The Original New Omron CP1W-AD041 is a 4-channel analog input expansion unit for CP series PLC systems (CP1E, CP1L, CP1H). It accepts voltage (±10V, 0-10V, 0-5V, 1-5V) or current (0-20mA, 4-20mA) signals with a resolution of 1/6000 (13-bit). This module enables precise analog signal acquisition from sensors and transmitters in industrial automation, process control, and machine monitoring applications.

Core Engineering Highlights:
4 analog inputs | 13-bit resolution (1/6000) | Voltage (±10V, 0-10V, 0-5V, 1-5V) and Current (0-20mA, 4-20mA) inputs | ±15V max rated input | Photocoupler isolation between I/O and internal circuits | 4 words I/O allocation | 90 × 86 × 50 mm | 200 g

Key Features:

• Original New Omron CP1W-AD041 module

• 4 analog input channels configurable for voltage or current signals

• Resolution: 1/6000 (full scale)

• Voltage input ranges: –10 to +10V, 0 to 10V, 0 to 5V, 1 to 5V

• Current input ranges: 0 to 20mA, 4 to 20mA

• Max rated input: ±15V

• Photocoupler isolation between analog inputs and internal logic

• 4 words allocated in I/O memory

• LED indicators for module status

• Removable screw terminal block

• DIN rail mounting

• CE, cULus, Lloyd's Register certified

Applications:

• Analog signal acquisition from pressure, flow, and level transmitters

• Temperature and process variable monitoring

• Machine automation and data acquisition

• OEM equipment requiring analog input expansion

• CP series PLC system I/O capacity expansion

Technical Specifications:

System Compatibility:

• Compatible with Omron CP1E, CP1L, CP1H series PLCs

• Connects to the right side of CP series CPU units

• Requires CP series CPU unit with analog input expansion support

Related Products:

• CP1W-AD042 – 4-channel analog input, 1/12000 resolution (higher precision)

• CP1W-DA041 – 4-channel analog output module

• CP1W-DA021 – 2-channel analog output module

• CP1W-MAD42 – 4 analog inputs + 2 analog outputs combination module

• CP1W-20EDR1 – Digital I/O expansion unit (12 inputs / 8 relay outputs)
