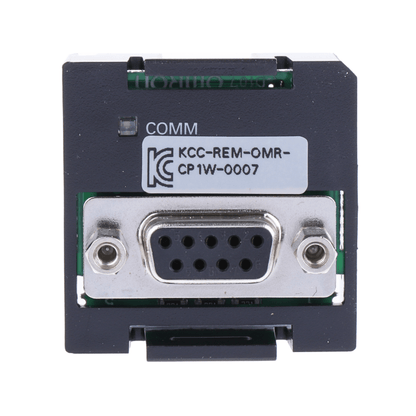

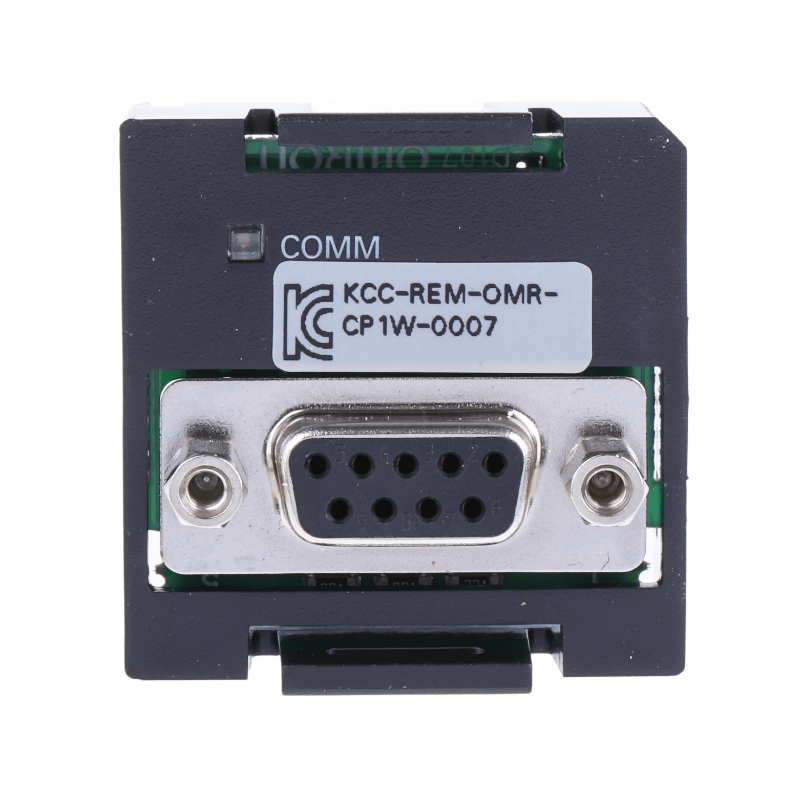

The Original New Omron CP1W-CIF01 is an RS-232C serial communication option board for the CP series programmable logic controller (PLC) platform, designed to add a single RS-232C port to compatible CPU units. Installed directly into the Option Board slot of CP1H, CP1L, CP1E, and CJ2M-CPU3x controllers, it enables point-to-point serial communication with HMIs, PCs, barcode readers, VFDs, temperature controllers, and other serial instruments. Supporting Host Link, NT Link, No-protocol, and Serial Gateway communication modes with baud rates up to 115.2 kbps, this compact board draws power directly from the CPU and requires no external power supply or additional DIN rail footprint. It provides a 15 m maximum transmission distance via a 9-pin D-sub female connector, making it suitable for control panel and machine-level serial integration in factory automation and OEM applications.

Core Engineering Highlights:
1 RS-232C port (9-pin D-sub female) | 15 m max transmission distance | Baud rates: 0.3–115.2 kbps (selectable) | Host Link, NT Link, No-protocol, Serial Gateway communication modes | Point-to-point communication | 0.3/0.6/1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2 kbps supported | Modbus protocol support | 9-pin D-sub female connector | 35 × 35 × 13.5 mm | IP20 protection | 0°C to +55°C operating temperature | Plugs directly into CPU option board slot

Key Features:

• Original New Omron CP1W-CIF01 option board

• Adds one RS-232C serial port to compatible CP series and CJ2M-CPU3x CPU units

• Supports Host Link (1:1 and 1:N via NT-AL001), NT Link (1:N), Serial Gateway, and No-protocol communication modes

• Baud rates: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps

• 15 m maximum transmission distance

• 9-pin D-sub female connector

• Mounts in Option Board slot 1 or 2 of compatible CPU units

• Powered directly from the CPU unit – no external power supply required

• Modbus protocol support

• Compact 35 × 35 × 13.5 mm design for space-saving installation

• IP20 protection for control cabinet environments

• 0°C to +55°C operating temperature

• RoHS compliant

Applications:

• Serial connection to HMIs, PCs, and barcode readers

• Communication with VFDs, temperature controllers, and weighing indicators

• Point-to-point serial communication with legacy instruments

• Host Link or NT Link communication with Omron HMIs

• OEM equipment requiring CP series RS-232C expansion

• Programming and monitoring of CP series PLCs via serial interface

Technical Specifications:

System Compatibility:

• Compatible CPU units: CP1H (all models), CP1L (L and M types, excluding CP1L-E), CP1E (N and NA types; not compatible with CP1E E-type basic models), CJ2M-CPU3x, CP2E-N

• Compatible with G9SP safety controllers

• Can be mounted in Option Board slot 1 or 2 (for CPU units with 30, 40 or 60 I/O points)

• Up to two option boards can be mounted per CPU unit when using Slot 1 and Slot 2

• Programming software: CX-Programmer (CX-One) / Sysmac Studio

• Note: Do not use the 5 V power from pin 6 of the RS-232C port for anything other than the NT-AL001 Link Adapter, CJ1W-CIF11 RS-422A Converter, or NV3W-M@20L Programmable Terminal

Related Products:

• CP1W-CIF11 – RS-422A/485 serial option board (non-isolated, 50 m max)

• CP1W-CIF12-V1 – RS-422A/485 serial option board (isolated, 500 m max)

• CP1W-CIF41 – Ethernet option board (10/100BASE-TX, FINS)

• NT-AL001 – RS-232C to RS-422A/485 link adapter

• CP1W-ADB21 – 2-channel analog input option board

• CP1W-DAB21V – 2-channel analog output option board
