CP1W-CIF11 RS-422A/485 Serial Communication Option Board 50m | Omron

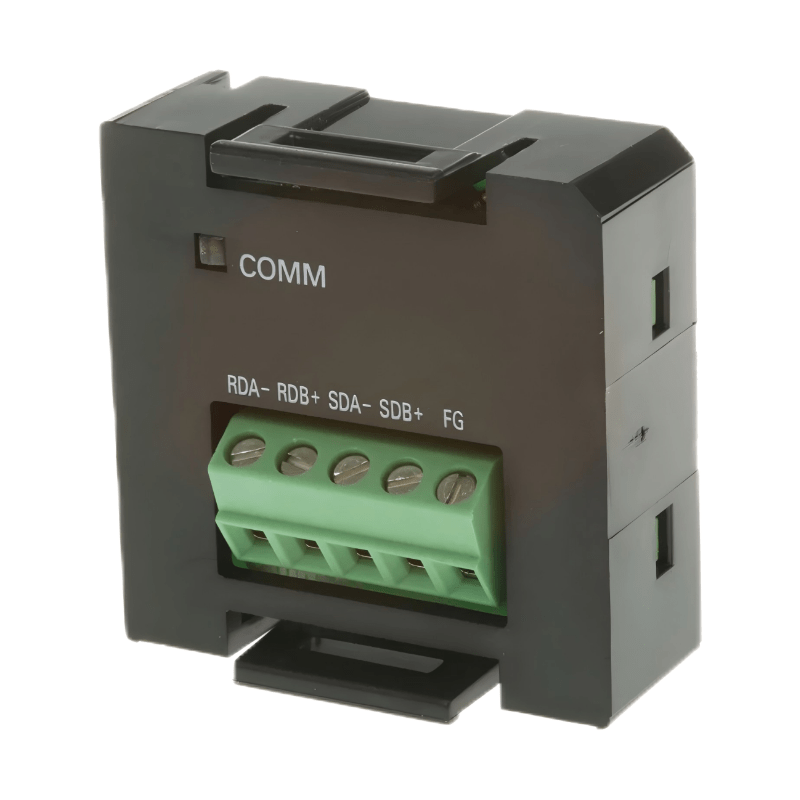

The Original New Omron CP1W-CIF11 is a serial communication option board designed to add RS-422A/485 interface capability to compatible Omron CP series PLC CPU units. Installed in either Option Board slot of CP1H, CP1L, CP1E, and CJ2M-CPU3x controllers, this non-isolated board supports both 4-wire RS-422A for long-distance point-to-point communication and 2-wire RS-485 for multi-drop networks up to 32 stations. It supports Host Link, NT Link (1:N), Serial PLC Link, Serial Gateway, Modbus-RTU, and No-protocol modes. Powered directly from the PLC; no external power required. Non-isolated design provides a maximum transmission distance of 50 m.

Core Engineering Highlights:
RS-422A / RS-485 serial communication (selectable via DIP switch) | Non-isolated | 50 m maximum transmission distance | 300 bps to 115.2 kbps selectable baud rate | Removable 6-pin terminal block | DIP switch configurable | Mounts in Option Board slot 1 or 2 | Compatible with CP1H, CP1L, CP1E, CJ2M-CPU3x | IP20 protection | 0°C to +55°C operating temperature

Key Features:

• Original New Omron CP1W-CIF11 module

• Adds one RS-422A or RS-485 serial port to compatible CPU units

• Selectable 4-wire RS-422A (point-to-point, up to 50 m) or 2-wire RS-485 (multi-drop, up to 32 stations)

• Supports Host Link, NT Link (1:N), Serial PLC Link (1:1), Serial Gateway (CompoWay/F master, Modbus-RTU master), Modbus-RTU easy master, and No-protocol mode

• Baud rates: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115.2 kbps

• Removable 6-pin terminal block with ferrules for secure wiring

• DIP switch configuration for RS-422/485 selection, termination resistor, and line settings

• Powered directly from PLC backplane (5 V DC, 0.22 A; 24 V DC, 0.02 A)

• Compact design fits in Option Board slot 1 or 2 of compatible CPU units

• 50 m maximum transmission distance (non-isolated)

• RoHS compliant

Applications:

• Connecting CP series PLCs to inverters, HMIs, and barcode readers

• Multi-drop RS-485 networks with Modbus-RTU devices

• PC link (1:1) and NT link (1:N) communication with Omron HMIs

• Serial gateway and custom protocol communication

• Modbus-RTU communication with third-party devices

Technical Specifications:

System Compatibility:

• Compatible CPU units: CP1H (all models), CP1L (L and M types, excluding CP1L-L10), CP1E (N and NA types; not compatible with CP1E E-type basic models), CJ2M-CPU3x

• Requires CX-Programmer version 8.1 or higher (CX-One version 3.1 or higher) for configuration

Related Products:

• CP1W-CIF01 – RS-232C serial option board (point-to-point)

• CP1W-CIF12 – RS-422A/485 isolated option board (500 m transmission distance)

• CP1W-CIF41 – Ethernet option board (10/100BASE-TX, FINS)

• CP1W-ADB21 – 2-channel analog input option board

• CP1W-DAB21V – 2-channel analog output option board
