CP1W-CIF41 Ethernet Option Board 10/100Mbps RJ45 | Omron

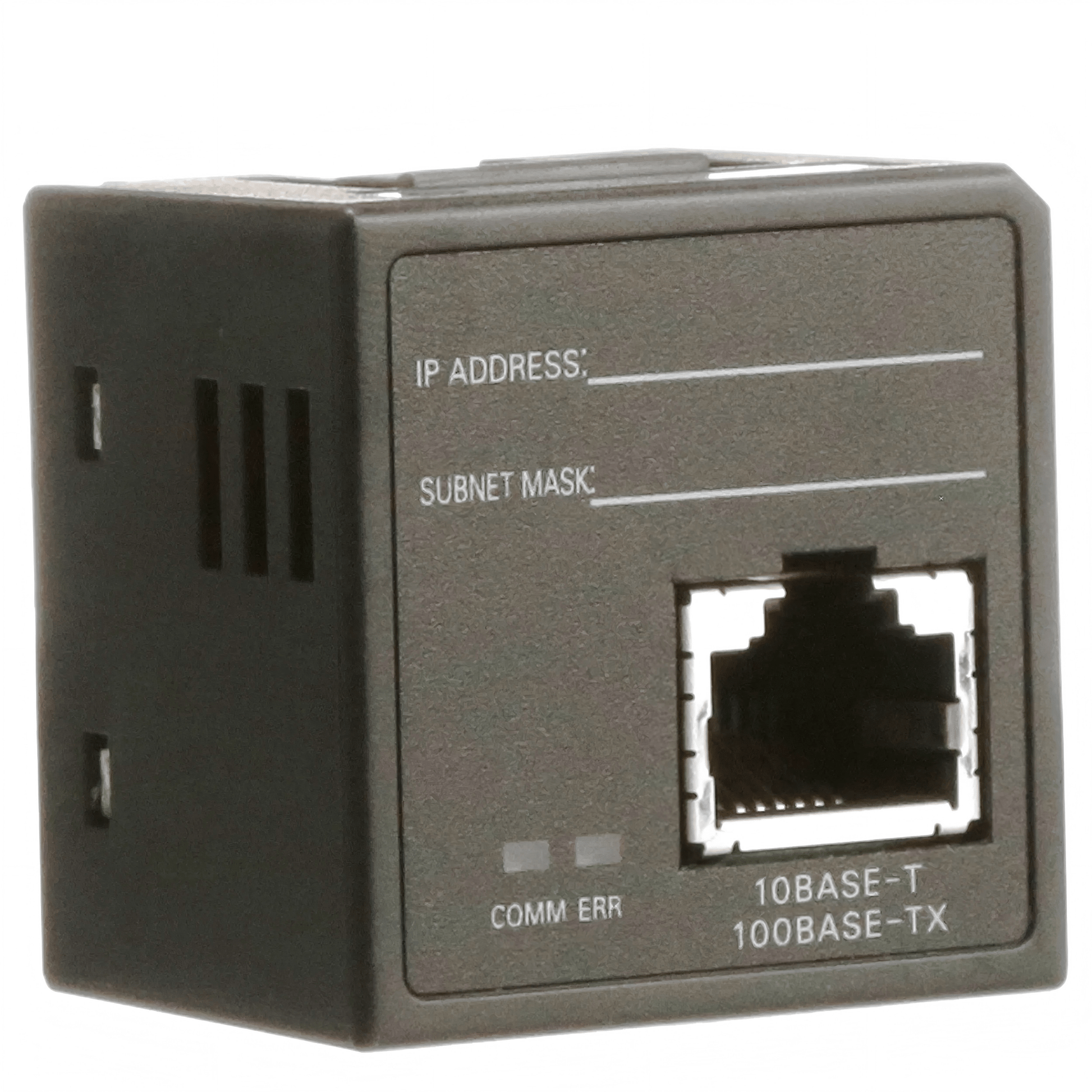

The Original New Omron CP1W-CIF41 is an internal Ethernet option board designed for Omron CP1 series PLCs, adding a 10/100Base-TX Ethernet port via an RJ45 connector. It enables FINS message communication over TCP/IP and UDP/IP protocols, allowing programming, monitoring, and data exchange between CP1 PLCs and networked devices. This compact module integrates seamlessly into CP1H, CP1L (excluding CP1L-L10 and CP1L-E), CP1E (version 2.0 or higher), and G9SP safety controllers.

Core Engineering Highlights:
10/100Base-TX Ethernet (Auto-MDIX) | RJ45 connector | TCP/IP, UDP, FINS protocol support | FINS/UDP & FINS/TCP communication | Default IP address: 192.168.250.1 | 8 KB buffer size | 254 max nodes | Transmission distance: 100 m | Web browser configuration | 500 V AC isolation | 0°C to +55°C operating temperature

Key Features:

• Original New Omron CP1W-CIF41 Ethernet option board

• Adds a single 10/100Base-TX Ethernet port to CP1 series PLCs via RJ45 connector

• Supports FINS message communication over TCP/IP and UDP/IP protocols

• Enables programming, monitoring, and data exchange between CP1 PLCs and networked devices

• Web browser configuration for IP address and network parameters

• Default IP address: 192.168.250.1; default password: "ETHERNET"

• CX-Programmer version 8.1 or higher required

• CX-Integrator version 2.33 or higher required when routing tables need to be set

• Compact 35 mm × 35 mm × 30 mm design for space-saving installation

• 500 V AC isolation between Ethernet port and internal circuits

• 8 KB buffer size

• Supports up to 254 nodes on the Ethernet network

• Transmission distance: 100 m between hub and node

• RoHS compliant

Applications:

• Factory automation network integration for CP1 series PLCs

• Remote programming and monitoring of PLC systems

• Data exchange between PLCs and SCADA/HMI systems

• Multi-controller communication in machine control applications

• Legacy CP1 system Ethernet upgrade

Technical Specifications:

System Compatibility:

• Compatible with Omron CP1H CPU units (supports up to 2 boards with Ver.2.0 or higher)

• Compatible with Omron CP1L (excluding CP1L-L10 and CP1L-E)

• Compatible with Omron CP1E version 2.0 or higher (N30/N40/N60/NA20)

• Compatible with G9SP safety controllers

• Up to 2 CP1W-CIF41 boards can be installed (Ver.2.0 only or Ver.1.0 + Ver.2.0)

• CX-Programmer version 8.1 or higher required

• CX-Integrator version 2.33 or higher required for routing tables

Limitations:

• No I/O table setting support; parameters must be configured via web browser

• No Mail/FTP/Socket/SNTP/Internet maintenance functions

• No SEND/RECV/CMND instructions support

• FINS/TCP: server only, max 2 connections

Related Products:

• CP1W-CIF01 – RS-232C serial communication option board

• CP1W-CIF11 – RS-422A/485 serial communication option board

• CP1W-CIF12-V1 – RS-422A/485 isolated serial communication option board

• CP1W-ADB21 – 2-channel analog input option board

• CP1W-DAB21V – 2-channel analog output option board

• CS1W-CIF31 – USB to serial conversion cable
