CP1W-MAD42 Analog I/O Expansion Unit 4AI/2AO 1/12000 | Omron

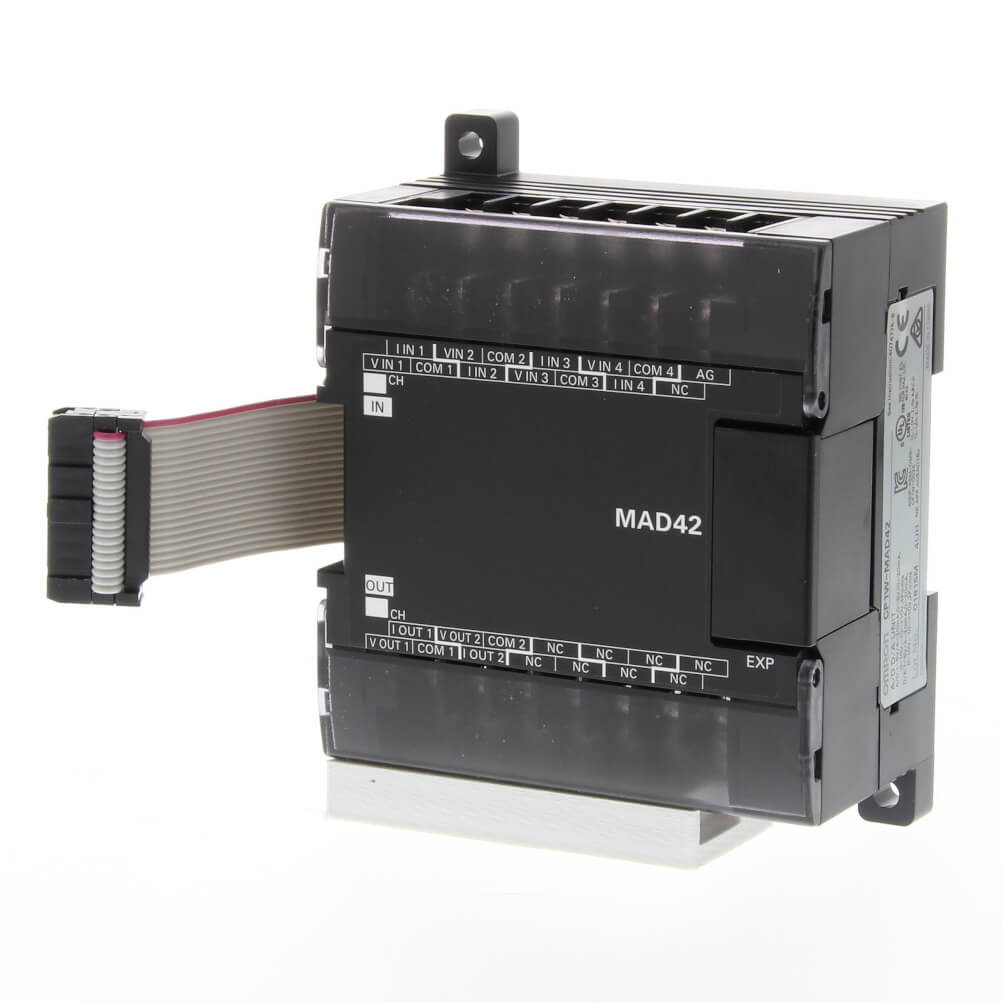

The Original New Omron CP1W-MAD42 is a 4-input, 2-output analog I/O expansion unit designed for CP series PLC systems (CP1E, CP1L, CP1H). It accepts voltage (±10V, 0-10V, 0-5V, 1-5V) or current (0-20mA, 4-20mA) signals with 1/12000 resolution, and provides two configurable analog outputs for precise control of actuators, drives, and process instrumentation. The module features photocoupler isolation between I/O and internal circuits, open-circuit detection for 1-5V and 4-20mA ranges, and a rapid 1 ms per channel conversion time.

Core Engineering Highlights:
4 analog inputs + 2 analog outputs | 1/12000 resolution (14-bit) | Voltage: ±10V, 0-10V, 0-5V, 1-5V | Current: 0-20mA, 4-20mA | 1 ms per channel conversion time | Open-circuit detection (1-5V / 4-20mA) | Photocoupler isolation | 18-point detachable screw terminal block | 86 × 90 × 50 mm | 260 g | 0°C to 55°C operating temperature

Key Features:

• Original New Omron CP1W-MAD42 module

• 4 analog input channels, individually configurable for voltage or current

• 2 analog output channels for precise actuator and process control

• 1/12000 resolution (14-bit) for high-precision measurement

• Voltage input ranges: –10 to +10V, 0–10V, 0–5V, 1–5V

• Current input ranges: 0–20mA, 4–20mA

• Voltage output ranges: –10 to +10V, 0–10V, 1–5V

• Current output ranges: 0–20mA, 4–20mA

• Open-circuit detection for 1–5V and 4–20mA input ranges

• 1 ms per channel conversion time (6 ms for all points)

• Photocoupler isolation between I/O and internal circuits

• 18-point detachable screw terminal block (M3 screws)

• LED indicators for module status

• DIN rail mounting

• CE, UL, CSA, NK, DNV, BV, KR, ABS certified

• RoHS and REACH compliant

Applications:

• Analog signal acquisition from pressure, flow, level, and temperature transmitters

• Speed and position control for variable frequency drives and servo systems

• Process control and machine automation

• OEM equipment requiring analog I/O expansion

• CP series PLC system I/O capacity expansion

Technical Specifications:

System Compatibility:

• Compatible with Omron CP1E, CP1L, CP1H series PLCs

• Connects to the right side of CP series CPU units

• Expansion I/O connecting cable included

• Requires CP series CPU unit with analog I/O expansion support

Wiring Notes:

• When using current inputs, voltage input terminals must be short-circuited with current input terminals

• Input range selection via DIP switches under the terminal block

• Detachable terminal block allows pre-wiring and quick module replacement

Related Products:

• CP1W-MAD44 – 4 analog inputs / 4 analog outputs (higher density)

• CP1W-AD041 – 4-channel analog input module (1/6000 resolution)

• CP1W-DA041 – 4-channel analog output module

• CP1W-20EDR1 – Digital I/O expansion unit (12 inputs / 8 relay outputs)

• CP1W-CN811 – I/O expansion cable (0.8 m)
