CP1W-TS102 4-Channel RTD Input Module Pt100/JPt100 | Omron

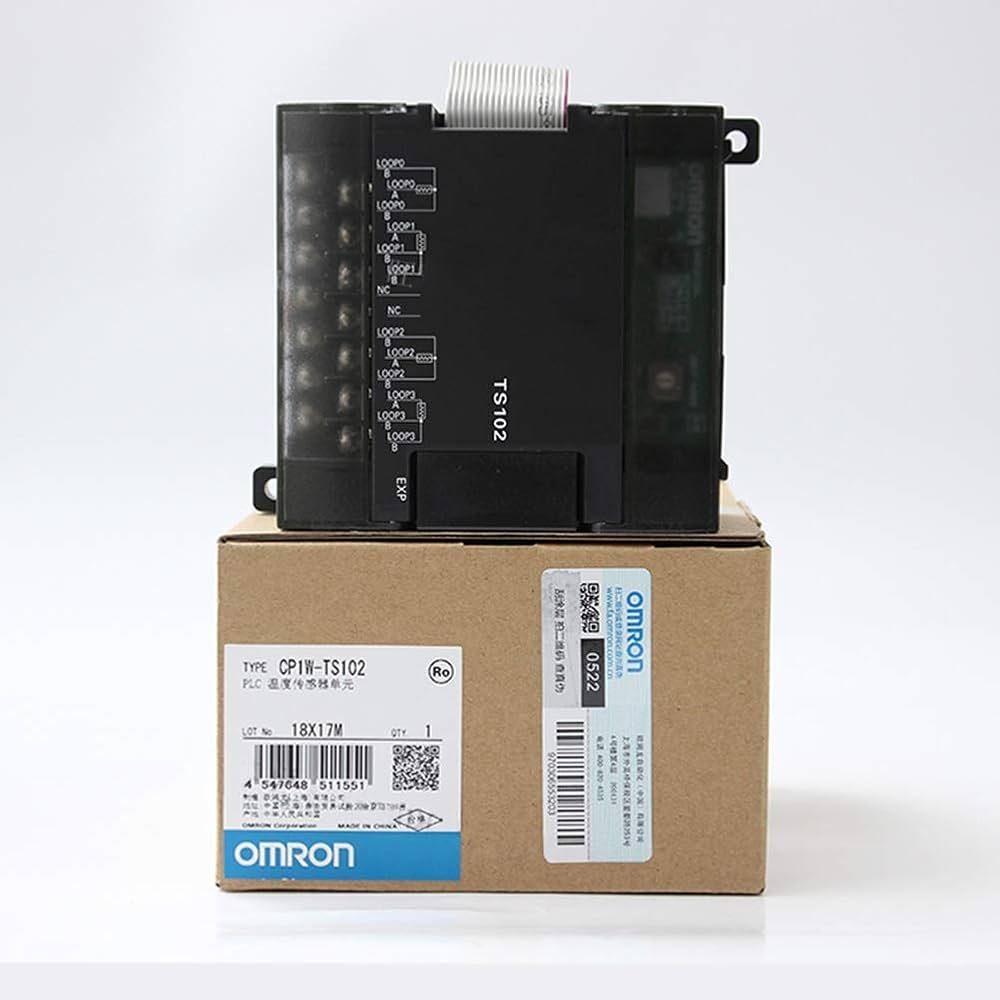

The Original New Omron CP1W-TS102 is a 4-channel temperature sensor unit for CP series PLC systems (CP1E, CP1L, CP1H). It accepts Pt100 or JPt100 platinum resistance thermometer (RTD) inputs, converting temperature measurements into 12-bit binary data for precise process monitoring and control. All four inputs must use the same sensor type and input range. No output words are allocated; four input words are used for data storage.

Core Engineering Highlights:
4 RTD input channels (Pt100/JPt100) | 12-bit resolution | –200.0°C to +650.0°C measuring range | Photocoupler isolation | 4 input words allocated | 90 × 86 × 50 mm | 250 g | 0°C to +55°C operating temperature | Removable screw terminal block | CE, UL, CSA certified

Key Features:

• Original New Omron CP1W-TS102 module

• 4 input channels for Pt100 or JPt100 platinum resistance thermometers

• 12-bit resolution for temperature measurement

• Measuring range: –200.0°C to +650.0°C (Pt100/JPt100)

• All four inputs must use the same sensor type and input range

• Photocoupler isolation between inputs and internal circuits

• 4 input words allocated (no output words)

• Removable screw terminal block for easy wiring

• DIP switch for temperature unit selection (°C/°F)

• Rotary switch for input range selection

• LED indicators for module status

• DIN rail mounting for space-efficient installation

• CE, UL, CSA certified

• RoHS compliant

• IP20 protection rating

Applications:

• Temperature monitoring in industrial heating and cooling processes

• Machine automation and condition monitoring (bearing, winding temperatures)

• HVAC system temperature measurement

• Food and beverage processing temperature control

• Pharmaceutical and chemical process temperature monitoring

• OEM equipment requiring RTD temperature input expansion

Technical Specifications:

System Compatibility:

• Compatible with Omron CP1E, CP1L, CP1H series PLCs

• Connects to the right side of CP series CPU units

• Allocates 4 input words in order of connection (no output words)

• All four inputs must use the same sensor type and input range

Related Products:

• CP1W-TS101 – 2-channel RTD input module (Pt100/JPt100)

• CP1W-TS001 – 2-channel thermocouple input module

• CP1W-TS002 – 4-channel thermocouple input module

• CP1W-AD041 – 4-channel analog input module (voltage/current)

• CP1W-MAD42 – 4 analog inputs + 2 analog outputs combination module

• CP1W-CN811 – I/O expansion cable (0.8 m)
