Omron CS1W-CN713 CS Series I/O Connecting Cable 0.7m

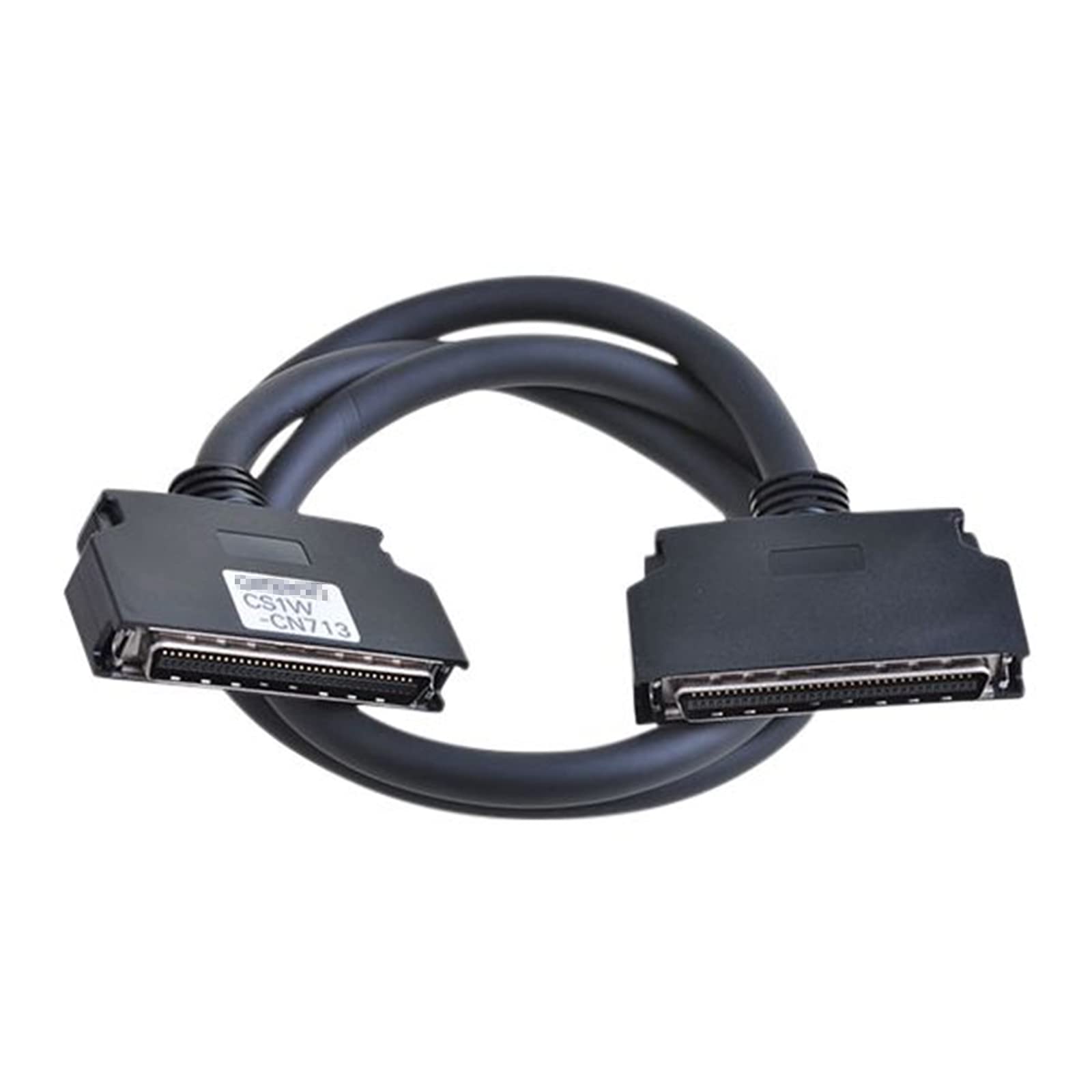

Omron CS1W-CN713 is a dedicated I/O connecting cable designed for SYSMAC CS series PLC systems. It connects the I/O Control Unit on the CPU Rack to the I/O Interface Unit on the expansion rack, enabling system expansion with additional I/O racks. 0.7 m length with rectangular female connectors on both ends. Compatible with CS1, CJ1, CJ2, and NJ series PLCs. Intended for building multi-rack configurations in industrial automation systems requiring expanded I/O capacity beyond the main CPU rack.

Applications:

• Connecting CPU rack to expansion rack in CS/CJ series PLC systems

• Multi‑rack configuration for large I/O count applications

• Expanding I/O capacity for machinery, conveyors and production lines

• Replacement of existing I/O connecting cables in system maintenance

Technical Specifications:

• Product type: I/O connecting cable (expansion rack cable assembly)

• Cable length: 0.7 m (2.30 ft)

• Connection type: Rectangular female connectors on both ends

• Compatible series: CS1, CJ1, CJ2, NJ series PLCs

• Applicable units: CS1W-IC101 I/O Control Unit (CPU rack) to CS1W-II101 I/O Interface Unit (expansion rack)

• Shielding: Unshielded

• Operating temperature: 0 °C … 55 °C

• Storage temperature: –20 °C … 75 °C

• Weight: approx. 0.26 kg

• RoHS compliant

System Integration:

• This cable belongs to the Omron CS1 Series I/O connecting cable family.

• It connects the I/O Control Unit (CS1W-IC101) mounted on the CPU rack to the I/O Interface Unit (CS1W-II101) on the expansion rack.

• One I/O Control Unit is required when connecting one or more expansion racks to a CS/CJ/NJ series controller; up to 3 expansion racks can be connected to a single CPU.

• For each additional expansion rack, install one I/O Interface Unit on the expansion rack and connect it to the I/O Control Unit on the CPU rack via this cable.

Standards & Compliance:
Refer to manufacturer official documentation for certification and compliance details (CE, Lloyd, NK, RoHS compliant).

Related Products:

• CS1W-IC101 – I/O Control Unit (mounts on CPU rack, right side of CPU unit)

• CS1W-II101 – I/O Interface Unit (mounts on expansion rack, leftmost slot)

• CS1W-CN223 – I/O connecting cable, 2 m length

• CS1W-CN323 – I/O connecting cable, 3 m length

• CS1W-CN523 – I/O connecting cable, 5 m length

• CS1W-BI083 – 8‑slot I/O rack

• CS1W-BI103 – 3‑slot I/O rack
