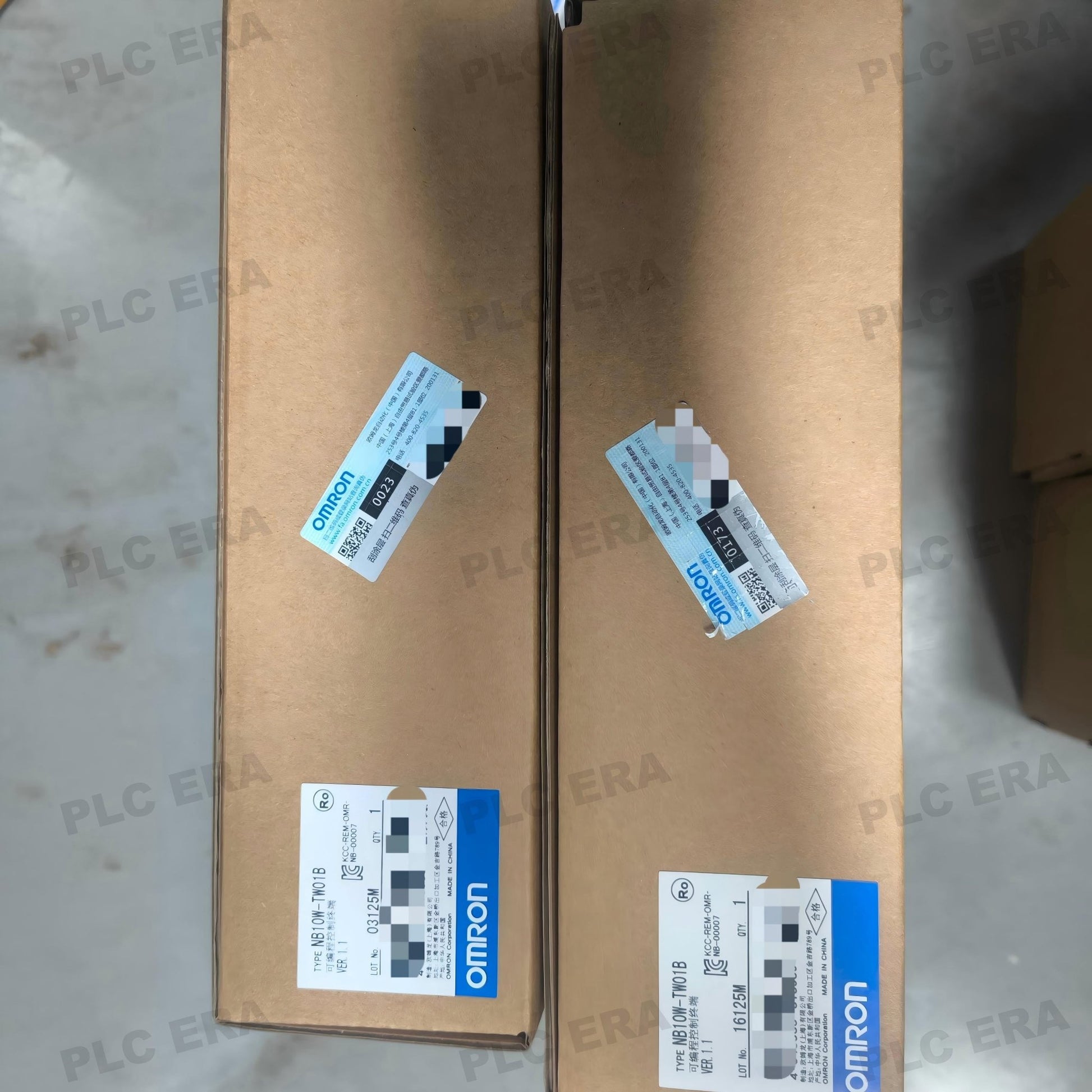

NB10W-TW01B 10.1-inch Touch Screen HMI WVGA Ethernet USB Host | Omron

The Original New Omron NB10W-TW01B is a 10.1-inch widescreen touch screen HMI from the NB Series, designed for small to mid-sized machine automation applications. Featuring a TFT LCD color display with 800 x 480 WVGA resolution, 65,536 colors, and LED backlight with 50,000 hours typical lifetime, it delivers clear and reliable visualization for operator control and monitoring. Equipped with Ethernet, USB Host, USB Slave, and dual serial communication ports (RS-232C/422A/485), this HMI provides flexible connectivity for integration with PLCs and other automation devices. The IP65 front panel rating ensures dust-tight and water-resistant operation in industrial environments.

⚠️ Important Product Status Note:

This product has been discontinued by Omron as of March 31, 2025. The recommended replacement is the NB10W-TW01B-V1 which offers the same 10.1" WVGA TFT display and 800×480 resolution with enhanced capabilities. Final shipments end September 2025, with repair support available until March 2030. This product remains available for maintaining existing installations while supplies last. For new designs, please consider the recommended replacement model.

Core Engineering Highlights:
10.1-inch TFT LCD widescreen display | 800 x 480 resolution (WVGA) | 65,536 colors | LED backlight (50,000 hours) | Analog resistive touch panel | Ethernet 10/100 BASE-T | USB Host + USB Slave | Dual serial ports (RS-232C/422A/485) | 128 MB internal memory | IP65 front panel protection | 24V DC power supply (20.4–27.6V) | 0°C to +50°C operating temperature

Key Features:

• Original New Omron NB10W-TW01B HMI

• 10.1-inch TFT LCD widescreen display with WVGA (800 x 480) resolution

• 65,536 colors for clear, detailed visualization

• LED backlight with 50,000 hours typical lifetime at 25°C

• Analog resistive touch panel for reliable operation

• 128 MB internal memory (including system area)

• Embedded real-time clock (battery-backed, 5 years typical at 25°C)

• Ethernet 10/100 BASE-T port for network connectivity

• USB Host (type A) for external storage, mouse, or keyboard

• USB Slave (type B) for PC connection

• Dual serial communication ports: COM1 (RS-232C) and COM2 (RS-232C/422A/485)

• IP65 front panel protection (dust-tight and water-resistant)

• Panel mount design with black frame

• 8 online languages and 16 password levels

• 14W typical power consumption

• 24V DC power supply (20.4–27.6V DC)

Applications:

• Machine operator interface and control panels

• Production line monitoring and data entry

• Packaging machinery and material handling equipment

• OEM machine automation systems

• HVAC and building automation

• Industrial machinery and process control

Technical Specifications:

System Compatibility:

• Compatible with Omron CP, CJ, CS series PLCs

• Supports Modbus RTU, Modbus TCP/IP, Omron Host Link, and third-party PLC protocols

• Programming software: NB-Designer Ver1.3 or higher (free download)

• Supported protocols: Modbus RTU, Modbus TCP/IP, Omron Host Link, and other third-party PLC protocols

Related Products:

• NB10W-TW01B-V1 – Recommended replacement (active product with same 10.1" display)

• NB10W-KBA04 – Protective sheet set (5 sheets) for NB10W series

• XW2Z-200T – NB to PLC RS-232C connection cable, 2m

• XW2Z-500T – NB to PLC RS-232C connection cable, 5m

• NB7W-TW01B – 7-inch version with Ethernet and USB Host

• NB5Q-TW01B – 5.6-inch version with Ethernet and USB Host

• NB3Q-TW01B – 3.5-inch version with Ethernet and USB Host
