NX-DA3603 4-Channel Analog Output Unit ±10V 1/8000 12mm | Omron

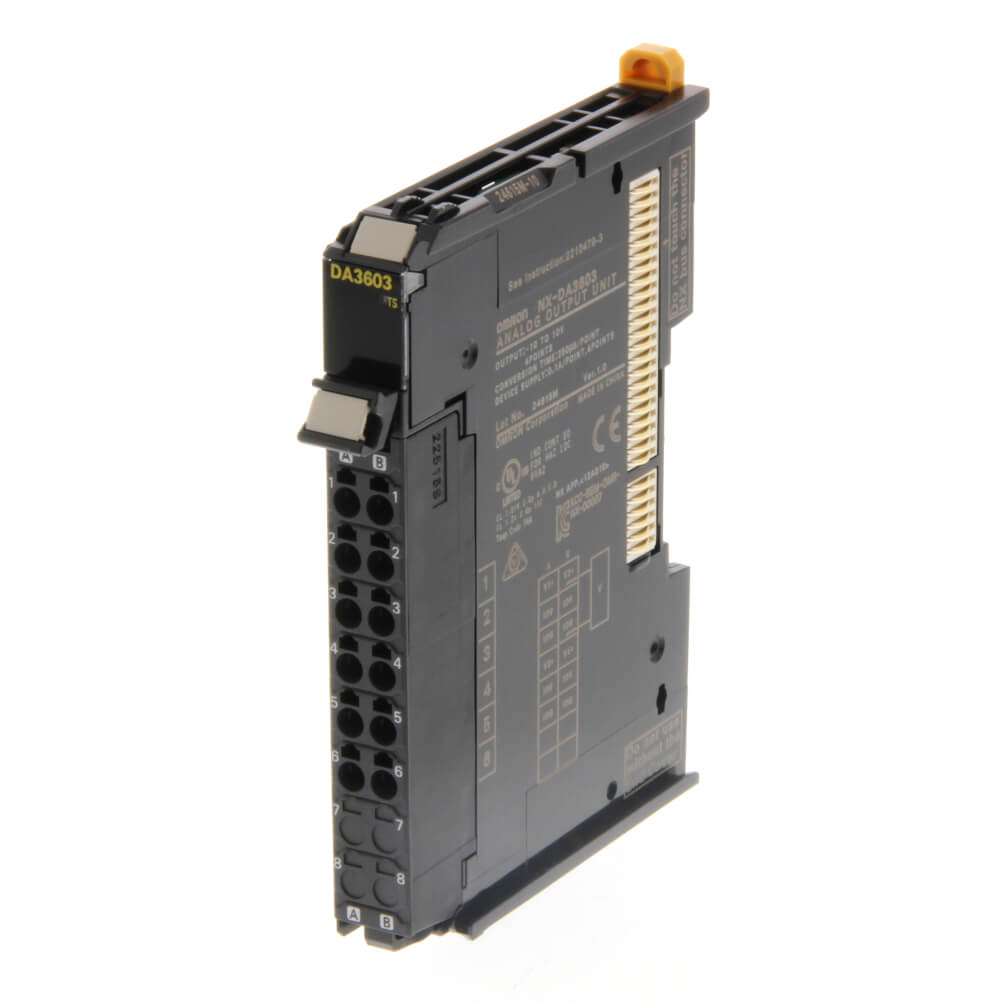

The Original New Omron NX-DA3603 is a 4-channel analog output unit for the NX series I/O system, designed for precise voltage output control in industrial automation and machine control applications. It provides four analog outputs with a ±10 V range, 1/8000 (13‑bit) resolution, and a fast 250 µs per channel conversion time. The 12 mm slim form factor, screwless push-in terminal block, and Free-Run refreshing method ensure high-density panel mounting and easy installation. Part of the NX series for EtherCAT communication coupler systems.

Core Engineering Highlights:
4 analog voltage outputs (±10 V) | 1/8000 (13-bit) resolution | 250 µs/ch conversion time | 1 ms/unit total conversion | Free-Run refreshing | ±0.3% accuracy at 25°C (±0.5% at 0–55°C) | 5 kΩ min load resistance | 1.25 W max power consumption | 12 mm width | IP20 protection | 0°C to +55°C operating temperature | Screwless push-in terminal block (12 terminals) | 70 g weight

Key Features:

• Original New Omron NX-DA3603 module

• 4 analog voltage outputs, ±10 V range

• 1/8000 (13‑bit) resolution for precise analog control

• 250 µs per channel conversion time

• ±0.3% overall accuracy at 25°C; ±0.5% at 0–55°C

• Free-Run refreshing method

• 5 kΩ minimum load resistance

• 0.5 Ω or less output impedance

• Output conversion range: -5 to 105% of full scale

• Screwless push-in terminal block (12 terminals) for tool‑free wiring

• 12 mm slim design for high-density panel mounting

• Detachable I/O connector for easy maintenance

• I/O power supply via NX bus

• 1.25 W max power consumption

• 70 g lightweight design

• DIN rail mounting for space-efficient installation

• IP20 protection for control cabinet environments

• CE, cULus, C-Tick, KC, Lloyd, NK certified

• RoHS compliant

Applications:

• Speed reference control for variable frequency drives and servo drives

• Valve positioning and actuator control

• Analog signal generation for process control

• Machine automation and OEM equipment

• SCADA system analog output expansion

• Precision voltage output for test and measurement systems

Technical Specifications:

System Compatibility:

• Compatible with Omron NX series EtherCAT Coupler Units (NX-ECC20×)

• Compatible with NX series EtherNet/IP Coupler Units (NX-EIC202)

• Compatible with NX series CPU Units (NX1P2, NX102, etc.)

• Supports Free-Run refreshing only

• Mounts on 35 mm DIN rail

Related Products:

• NX-ECC203 – NX series EtherCAT Coupler Unit, 2 ports, 125 µs cycle time

• NX-EIC202 – NX series EtherNet/IP Coupler Unit, 2 ports, local safety support

• NX-AD3603 – 4-channel analog input unit (complementary)

• NX-DA3605 – 4-channel analog output unit with 1/30000 resolution (higher precision)

• NX-PF0630 – Additional I/O power supply unit, 4 A, 5-24 V DC

• NX-PF0730 – Additional I/O power supply unit, 10 A, 5-24 V DC

• NX-PD1000 – Additional NX unit power supply, 24 V DC, 10 W

• NX-TBA122 – Replacement screwless push-in connector with 12 wiring terminals (marked A+B)

• NX-AUX02 – Terminal block coding pins for 10x NX I/O units
