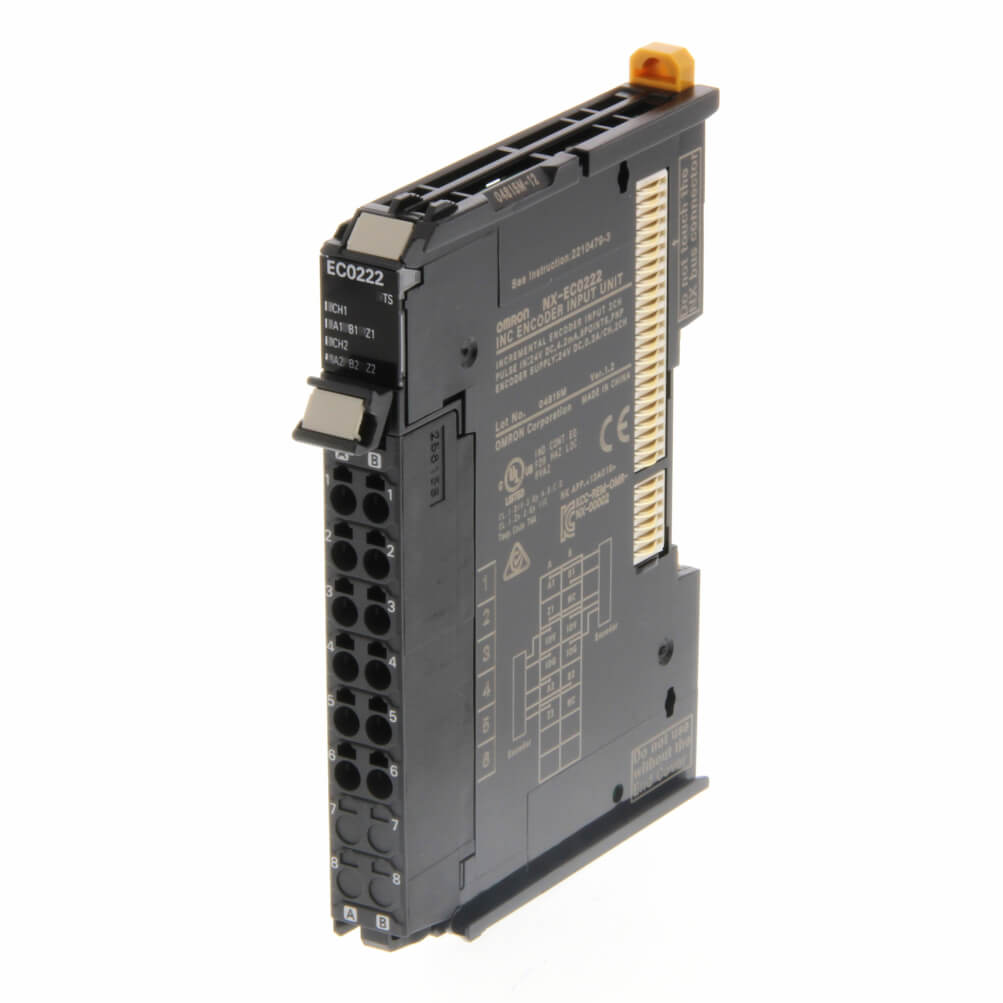

NX-EC0222 2-Channel Incremental Encoder Input Unit 500kHz 12mm | Omron

The Original New Omron NX-EC0222 is a 2-channel incremental encoder input unit for the NX series I/O system, designed for high-speed position and speed feedback in motion control and precision automation applications. It accepts PNP encoder signals with a maximum single-phase input frequency of 500 kHz (phase differential x4: 125 kHz) and a Phase Z reference pulse frequency of 125 kHz. The unit supports Free-Run, Synchronous, and Task period prioritized refreshing methods, ensuring flexible integration with various control architectures. The 12 mm slim form factor and screwless push-in terminal block enable high-density panel mounting and tool‑free wiring. Part of the NX series for EtherCAT communication coupler systems.

Core Engineering Highlights:
2 incremental encoder input channels (PNP) | 500 kHz max single-phase input frequency | Phase differential pulse input x4: 125 kHz | Phase Z reference pulse: 125 kHz | Free-Run, Synchronous, Task period prioritized refreshing | 32-bit counter range: -2,147,483,648 to 2,147,483,647 pulses | Ring or linear counter modes| Pulse rate and period measurement| Screwless push-in terminal block | 12 mm width | IP20 protection | 0°C to +55°C operating temperature

Key Features:

• Original New Omron NX-EC0222 unit

• 2 encoder input channels for PNP incremental encoders (24 V DC)

• Max. single-phase input frequency: 500 kHz

• Phase differential pulse input x4: 125 kHz

• Phase Z reference pulse: 125 kHz

• Counter range: -2,147,483,648 to 2,147,483,647 pulses

• Counter modes: Ring counter or linear counter

• Counter controls: Gate control, counter reset, counter preset

• Latch function: 2 external input latches and 1 internal latch

• Measurements: Pulse rate measurement and pulse period measurement

• Pulse input methods: Phase differential pulse (multiplication x2/4), pulse + direction inputs, up/down pulse inputs

• Signal processing: Free-Run, Synchronous, or Task period prioritized refreshing

• Screwless push-in terminal block (12 terminals) for tool‑free wiring

• 12 mm slim design for high-density panel mounting

• Detachable I/O connector for easy maintenance

• Photocoupler isolation for reliable signal integrity

• 100 g lightweight design

• DIN rail mounting for space-efficient installation

• IP20 protection for control cabinet environments

Applications:

• High-speed position feedback for servo and stepper motor control

• Speed and distance measurement in conveyor systems

• Positioning control in packaging and material handling equipment

• Motion control in CNC machines and robotics

• High-precision counting and measurement applications

• Factory automation and machine control systems

• Distributed I/O architectures with NX series EtherCAT couplers

Technical Specifications:

System Compatibility:

• Compatible with Omron NX series EtherCAT Coupler Units (NX-ECC20×)

• Compatible with NX series EtherNet/IP Coupler Units (NX-EIC202)

• Compatible with NX series CPU Units (NX1P2, NX102, etc.)

• Supports incremental encoders with PNP (sourcing) outputs

• Mounts on 35 mm DIN rail

• Programming and configuration with Sysmac Studio automation software

Related Products:

• NX-ECC203 – NX series EtherCAT Coupler Unit, 2 ports, 125 µs cycle time

• NX-EIC202 – NX series EtherNet/IP Coupler Unit, 2 ports, local safety support

• NX-EC0112 – 1-channel incremental encoder input unit (NPN)

• NX-EC0122 – 1-channel incremental encoder input unit (PNP)

• NX-EC0212 – 2-channel incremental encoder input unit (NPN)

• NX-EC0222 – 2-channel incremental encoder input unit (PNP, current model)

• NX-PF0630 – Additional I/O power supply unit, 4 A, 5-24 V DC

• NX-PF0730 – Additional I/O power supply unit, 10 A, 5-24 V DC

• NX-PD1000 – Additional NX unit power supply, 24 V DC, 10 W

• NX-TBA122 – Replacement screwless push-in connector with 12 wiring terminals (marked A+B)

• NX-AUX02 – Terminal block coding pins for 10x NX I/O units
