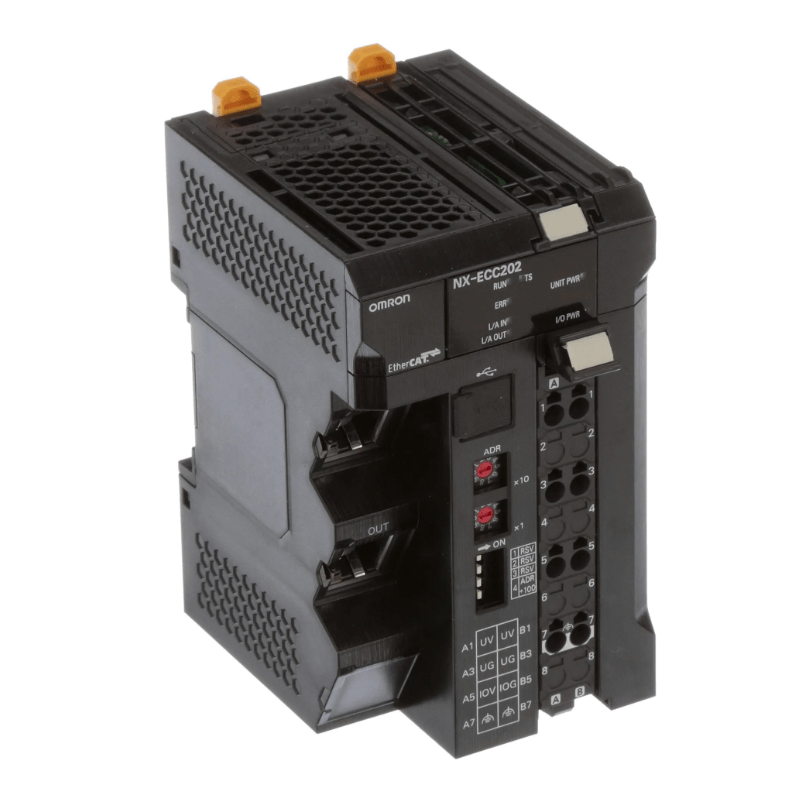

NX-ECC202 NX Series EtherCAT Coupler Unit 2 Ports 10A | Omron

The Original New Omron NX-ECC202 is an EtherCAT coupler unit for the NX series I/O system, designed to connect up to 63 NX I/O units to an EtherCAT network as a single slave node. Supporting a communications cycle from 250 to 4,000 μs and delivering a maximum I/O power supply current of 10 A, it meets the demands of high‑performance distributed I/O applications. The coupler features a USB port for configuration via Sysmac Studio and is delivered with an end cover, making it suitable for machine automation, factory integration, and real‑time control systems.

Core Engineering Highlights:
2 x RJ45 EtherCAT ports (100BASE‑TX) | 10 A maximum I/O power supply current | Supports up to 63 NX I/O units per coupler | 250 μs to 4,000 μs communications cycle | 24 V DC unit power supply (20.4 to 28.8 V DC) | 10 W max NX Unit power supply capacity | I/O power supply: 5 to 24 V DC (4.5 to 28.8 V DC) | 1.45 W power consumption | USB port for configuration | IP20 protection | 0°C to +55°C operating temperature

Key Features:

• Original New Omron NX‑ECC202 coupler unit

• 10 A maximum I/O power supply current – supports high‑power I/O configurations

• Connects up to 63 NX I/O units (digital, analog, safety)

• High‑speed EtherCAT communication with 250 μs minimum cycle time (DC Mode)

• 2 x RJ45 EtherCAT ports (100BASE‑TX)

• Supports Distributed Clock (DC) for synchronized I/O refreshing

• USB port for programming and configuration via Sysmac Studio

• Screwless push‑in terminal block for tool‑free wiring

• DIN rail mounting with 46 mm width

• Supports multiple refreshing methods: Free‑Run, Synchronous I/O, Time stamp, Task period prioritized

• Comprehensive diagnostics and status LEDs

• Delivered with end cover

Applications:

• Machine automation and high‑speed control systems

• Factory network integration for distributed I/O

• Real‑time data communication with EtherCAT master controllers

• Packaging machinery, robotics, and process control systems

• High‑power I/O configurations requiring 10 A supply current

Technical Specifications:

Power Supply Specifications:

Environmental & Physical:

System Compatibility:

• Connects to an EtherCAT master (e.g., Omron NJ/NX/NY series CPU units) via two RJ45 ports

• Up to 63 NX I/O units (digital, analog, safety) can be connected to a single coupler

• Configuration and diagnostics performed using Sysmac Studio automation software via USB port

• Supports mixed use of standard and high‑performance NX units

• Compatible with NJ/NX/NY series controllers

Related Products:

• NX‑ECC201 – 4 A I/O power supply version (lower current capacity)

• NX‑ECC203 – 125 μs minimum cycle time, 1.25 W power consumption

• NX‑ID5442 – 16‑point PNP digital input unit

• NX‑OD5256 – 16‑point PNP digital output unit

• NX‑PF0630 – Additional I/O power supply unit (4 A, 5‑24 V DC)

• NX‑PF0730 – Additional I/O power supply unit (10 A, 5‑24 V DC)

• NX‑PD1000 – Additional NX unit power supply (24 V DC, 10 W)
