NX-ECC203 NX Series EtherCAT Coupler Unit 2 Ports 125μs | Omron

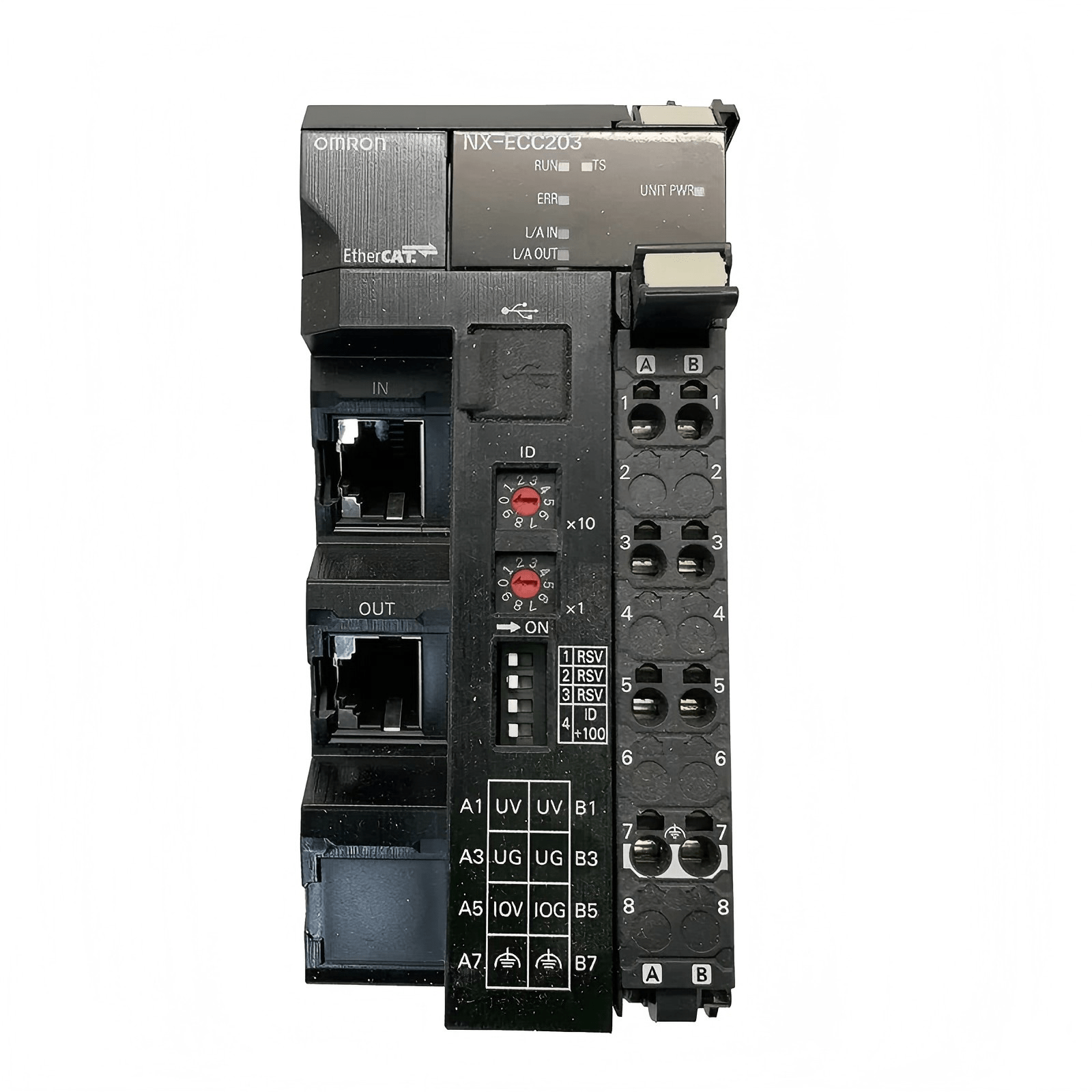

The Original New Omron NX-ECC203 is a high-performance EtherCAT coupler unit for the NX series I/O system, designed to connect up to 63 NX I/O units to an EtherCAT network as a single slave node. Featuring a 125 μs minimum communications cycle, 10 A maximum I/O power supply current, and support for task period prioritized refreshing, the NX-ECC203 is suitable for high-speed, high-precision machine automation and motion control applications. The unit includes a built-in 2-port switch for flexible network topologies, screwless push-in terminals for tool‑free wiring, and is delivered with an end cover.

Core Engineering Highlights:
EtherCAT Slave (2 ports) | 125 μs to 10,000 μs communications cycle in DC Mode | Up to 63 connectable NX Units | 10 A max I/O power supply current | 1.25 W power consumption (NX Unit power) | 1 μs max I/O jitter | Screwless push-in connector | 46 mm width | 0°C to +55°C operating temperature | IP20 protection

Key Features:

• Original New Omron NX-ECC203 module

• EtherCAT slave communication with 2 ports (built‑in switch)

• Connects up to 63 NX I/O units (standard and high-performance units can be mixed)

• Supports communications cycle: 125 μs to 10,000 μs in DC Mode (depends on EtherCAT master and unit configuration)

• Maximum I/O power supply current: 10 A

• Supports multiple refreshing methods: Free-Run, Synchronous I/O, Time stamp, and Task period prioritized (NX-ECC203 only)

• I/O jitter performance: Inputs 1 μs max., Outputs 1 μs max.

• Send/receive PDO data sizes: 1,024 bytes max. (input/output)

• Mailbox data size: 256 bytes (input/output)

• Node address setting range: 1 to 512 (rotary switches or Sysmac Studio)

• Unit power supply: 24 V DC (20.4 to 28.8 V DC), 10 W max. NX Unit power supply capacity

• Screwless push‑in terminal block for tool‑free wiring

• DIN rail mounting; delivered with end cover

Applications:

• High-speed, high-precision remote I/O for EtherCAT networks

• Machine automation and motion control systems

• Factory automation and production line monitoring

• Multi-axis synchronized control systems

• Distributed I/O architectures requiring real‑time performance

Technical Specifications:

System Compatibility:

• Compatible with Omron NJ/NX/NY series controllers (EtherCAT master)

• Supports up to 63 NX series I/O units (digital, analog, safety, etc.)

• Works with Sysmac Studio automation software (version 1.44 or later recommended)

• Requires unit version 1.5 or later for task period prioritized refreshing

• Supports mixed use of standard and high-performance NX units

Related Products:

• NX-PD1000 – NX bus power supply unit, 24 V DC input, 12 mm wide

• NX-PF0730 – NX I/O power feed unit, 5-24 V DC input, 10 A, 12 mm wide

• NX-AUX02 – Terminal block coding pins for NX I/O units

• NX-TBC082 – Replacement screwless push-in connector, 8 terminals

• XS6W-6PUR8SSxxxCM-YF – EtherCAT patch cables, PUR, yellow, various lengths

• NX-ID5442 – 16-point PNP digital input unit

• NX-OD5256 – 16-point PNP digital output unit

• NX-ECC202 – 250 μs minimum cycle time version (alternative)
