NX-EIC202 NX Series EtherNet/IP Coupler Unit 2 Ports 10A | Omron

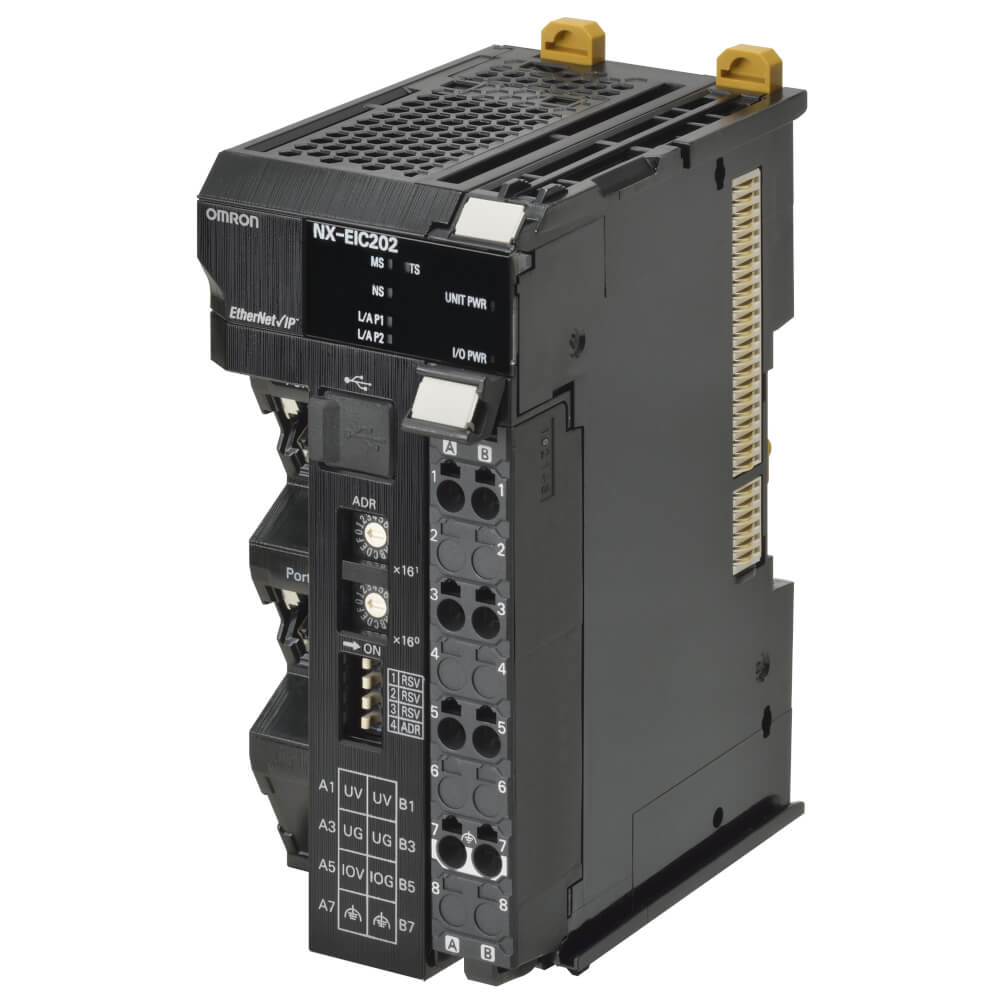

The Original New Omron NX-EIC202 is an EtherNet/IP coupler unit for the NX series I/O system, designed to connect up to 63 NX I/O units to an EtherNet/IP network as a single slave node. Featuring two RJ45 Ethernet ports with a built‑in Layer 2 switch, it supports line, tree, and star network topologies. The coupler provides up to 504 bytes of I/O data per connection, supports local safety integration with mixed standard and safety I/O units, and delivers a maximum I/O power supply current of 10 A. Screwless push‑in terminal blocks for unit and I/O power supply, plus included end cover, simplify wiring and installation. The NX-EIC202 is configurable via Sysmac Studio and provides USB connectivity for fast, direct PC connection. It is part of the NX series for EtherNet/IP communication coupler systems.

Core Engineering Highlights:
2 EtherNet/IP ports (built‑in switch) | 63 connectable NX Units | 504 bytes max I/O connection size (input/output) | 10 A max I/O power supply current | 8 connections max | 100 Mbps link speed | 4–1000 ms RPI (refresh cycle) | 24 V DC unit power supply (20.4–28.8 V DC) | 10 W NX Unit power supply capacity | USB port for Sysmac Studio connection | IP20 protection | 0°C to +55°C operating temperature | 46 × 100 × 71 mm (W × H × D) | 150 g weight

Key Features:

• Original New Omron NX-EIC202 module

• EtherNet/IP coupler unit with 2 RJ45 ports for line, tree, and star topologies

• Connects up to 63 NX I/O units (standard and high-performance units can be mixed)

• Supports local safety integration — mix standard and safety I/O units in a single system

• Maximum I/O power supply current: 10 A

• NX bus I/O data size: 512 bytes max. input/output

• EtherNet/IP I/O connection size: 504 bytes max. input/output

• 8 message buffers for server

• Power supply voltage: 24 V DC (20.4–28.8 V DC)

• NX Unit power supply capacity: 10 W max.

• NX Unit power supply efficiency: 70%

• Screwless push‑in terminal blocks for unit and I/O power supply

• USB port for direct connection to Sysmac Studio

• Free‑Run refreshing method

• Delivered with end cover

• DIN rail mounting for control cabinet installation

• IP20 protection for control cabinet environments

• 0°C to +55°C operating temperature range

• RoHS compliant

Applications:

• EtherNet/IP network connectivity for NX series I/O and safety modules

• Factory automation and industrial control systems

• Mixed standard and safety I/O in one slave terminal

• Machine automation requiring high‑density I/O expansion

• Distributed I/O architectures with EtherNet/IP

• Multi‑vendor integration via EtherNet/IP

Technical Specifications:

System Compatibility:

• Compatible with Omron NX series I/O units (digital, analog, safety, etc.)

• Supports up to 63 NX units per coupler (standard and high‑performance units can be mixed)

• Supports local safety integration — mix standard and safety I/O units in a single system

• Configuration via Sysmac Studio automation software

• USB port for direct PC connection (USB 2.0 B‑type connector)

• DIN rail mounting for control cabinet installation

Related Products:

• NX‑PD1000 – NX bus power supply unit, 24 V DC input, 12 mm wide

• NX‑PF0730 – NX I/O power feed unit, 5‑24 V DC, 10 A, 12 mm wide

• NX‑ID5442 – 16‑point PNP digital input unit

• NX‑OD5256 – 16‑point PNP digital output unit

• NX‑SID800 – 8‑point PNP safety input unit

• NX‑SOD400 – 4‑point PNP safety output unit

• NX‑AUX01 – DIN rail insulation spacers, set of 3 pcs

• NX‑AUX02 – Terminal block coding pins (for 10x NX I/O units)

• XS6W‑6LSZH8SSxxxCM‑B – Ethernet patch cables (Cat.6A, LSZH, various lengths)

• W4S1‑05D – 5‑port enhanced Ethernet switch
