NX-ID5442 16-Point PNP Digital Input Module 24V 12mm | Omron

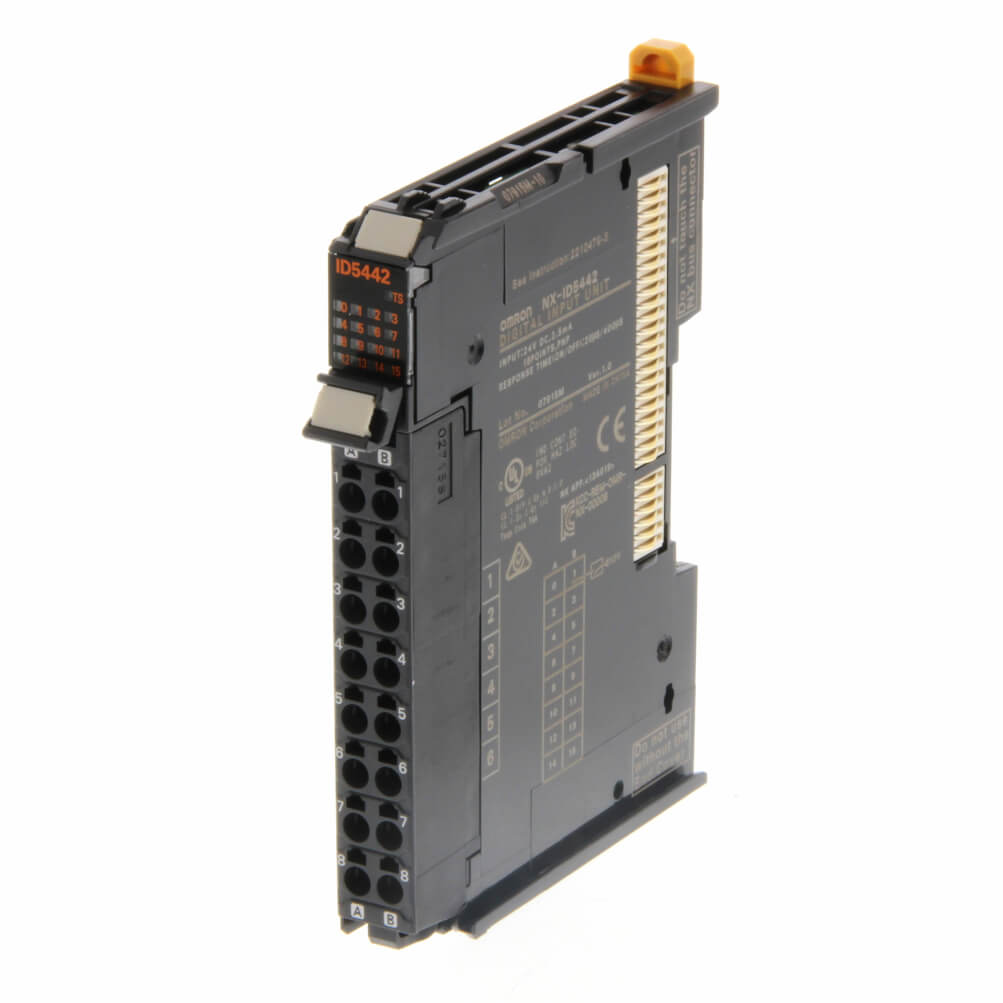

The Original New Omron NX-ID5442 16-Point PNP Digital Input Module is a high-density digital input unit for the NX series I/O system. Designed for machine automation and factory control applications, it provides 16 PNP (sourcing) inputs for 24 V DC signals with a fast 20 µs ON / 400 µs OFF response time. The screwless push-in terminal block enables tool‑free wiring for fast installation and maintenance. Part of the NX series for EtherCAT communication coupler systems.

Core Engineering Highlights:
16 PNP digital inputs | 24 V DC (15–28.8 V permitted) | 2.5 mA typical input current | 20 µs ON / 400 µs OFF response time | Screwless push-in terminal block | 12 mm width for high-density mounting | IP20 protection | 0°C to +55°C operating temperature

Key Features:

• Original New Omron NX-ID5442 module

• 16 PNP (sourcing) digital inputs for 24 V DC signals

• 15–28.8 V DC permitted input voltage range

• 2.5 mA typical input current at 24 V DC

• 20 µs max. ON / 400 µs max. OFF response time

• Screwless push-in terminal block for tool‑free wiring

• 12 mm slim design for high-density panel mounting

• Removable terminal block for simplified maintenance

• Signal processing: Free running, Standard speed, Synchronous

• 1-wire connection method

• LED indicators for each input point

• DIN rail mounting for space-efficient installation

• 65 g lightweight design

Applications:

• Digital signal acquisition from sensors, pushbuttons, and limit switches

• Conveyor and material handling equipment

• Packaging machinery and assembly lines

• Factory automation I/O expansion

• OEM equipment requiring high-density digital inputs

Technical Specifications:

System Compatibility:

• Compatible with Omron NX series EtherCAT Coupler Units (NX-ECC20×) and EtherNet/IP Coupler Units (NX-EIC202)

• Requires NX series communication coupler unit or NX series CPU unit for operation

• Supports up to 63 NX I/O units per coupler

• Compatible with NJ/NX/NY series controllers

• Mounts on 35 mm DIN rail

Related Products:

• NX-ECC203 – NX series EtherCAT Coupler Unit, 2 ports, 125 µs cycle time

• NX-EIC202 – NX series EtherNet/IP Coupler Unit, 2 ports, local safety support

• NX-OD5256 – 16-point PNP digital output unit (complementary)

• NX-ID5442 – 16-point PNP digital input unit (current model)

• NX-AUX02 – Terminal block coding pins for NX I/O units

• NX-PC0010 – I/O power connection unit, IOG

• NX-PC0020 – I/O power connection unit, IOV

• NX-PC0030 – I/O power connection unit, IOV+IOG

• NX-TBA162 – Replacement screwless push-in terminal block

• NX-PF0630 – Additional I/O power supply unit, 4 A, 5-24 V DC

• NX-PF0730 – Additional I/O power supply unit, 10 A, 5-24 V DC
