NX-OD5121 16-Point NPN Digital Output Module 0.5A 12mm | Omron

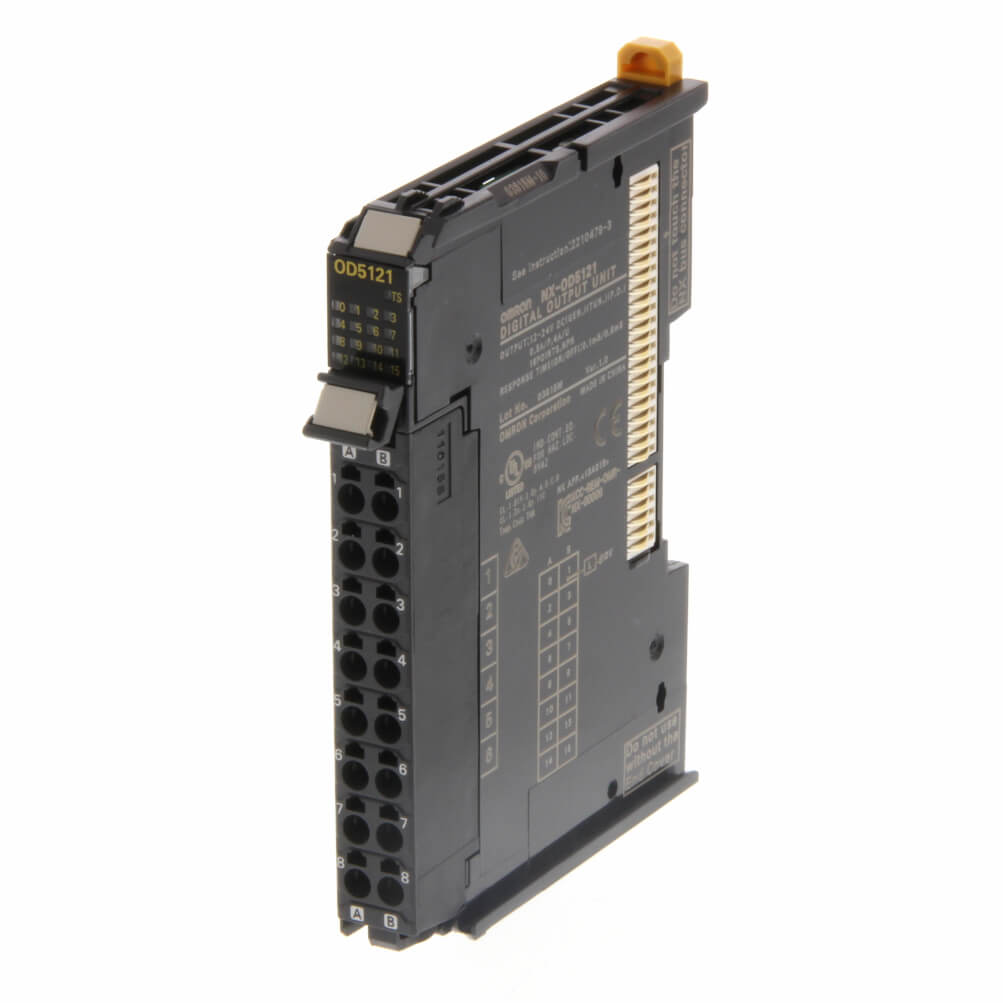

The Original New Omron NX-OD5121 is a 16‑point NPN (sinking) transistor output module for the NX series I/O system. Designed for general‑purpose output expansion, it provides 16 solid‑state outputs rated at 0.5 A per point. The module features a 12 mm width, a screwless push‑in terminal block for tool‑free wiring, and short‑circuit protection. Part of the NX series for EtherCAT and EtherNet/IP communication coupler systems, it supports both free‑run and synchronous I/O refreshing.

Core Engineering Highlights:
16 NPN transistor outputs (sinking) | 0.5 A per point, 4.0 A per unit | 0.1 ms ON / 0.8 ms OFF response time (resistive load) | Screwless push‑in terminal block | 12 mm width | Short‑circuit protected outputs | IP20 protection | 0 °C to +55 °C operating temperature | 70 g weight | Active product with full factory support

Key Features:

• Original New Omron NX‑OD5121 module

• 16 NPN (sinking) transistor outputs for 24 V DC loads

• 0.5 A per point, 4.0 A per unit output capacity

• 0.1 ms turn‑on / 0.8 ms turn‑off response time (resistive load)

• 12 V to 24 V DC operating voltage

• Screwless push‑in terminal block for tool‑free wiring

• Short‑circuit protected outputs for reliable operation

• 12 mm slim design for high‑density panel mounting

• 1‑wire connection method

• Standard speed signal processing with free‑running and synchronous modes

• LED indicators for each output point

• Removable terminal block for simplified maintenance

• DIN rail mounting for space‑efficient installation

• IP20 protection rating

• CE, cULus, C‑Tick, KC, Lloyd, NK approved

Applications:

• Solenoid valve and relay actuation in machine control systems

• Conveyor and material handling equipment

• Packaging machinery and assembly lines

• Factory automation I/O expansion

• OEM equipment requiring high‑density transistor outputs

Technical Specifications:

System Compatibility:

• Compatible with Omron NX series EtherCAT Coupler Units (NX‑ECC20×) and EtherNet/IP Coupler Units (NX‑EIC202)

• Requires NX series communication coupler unit or NX series CPU unit for operation

• Supports up to 63 NX I/O units per coupler

• Compatible with NJ/NX/NY series controllers

• Mounts on 35 mm DIN rail

Related Products:

• NX‑ECC203 – NX series EtherCAT Coupler Unit, 2 ports, 125 µs cycle time

• NX‑EIC202 – NX series EtherNet/IP Coupler Unit, 2 ports, local safety support

• NX‑ID5442 – 16‑point PNP digital input unit (complementary)

• NX‑OD5256 – 16‑point PNP digital output unit (sourcing)

• NX‑PF0630 – Additional I/O power supply unit, 4 A, 5‑24 V DC

• NX‑PF0730 – Additional I/O power supply unit, 10 A, 5‑24 V DC

• NX‑PD1000 – Additional NX unit power supply, 24 V DC, 10 W

• NX‑TBA162 – Terminal block spare part for NX series

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Omron and NX Series are trademarks of Omron Corporation.
