NX-OD5256 16-Point PNP Digital Output Module 0.5A 12mm | Omron

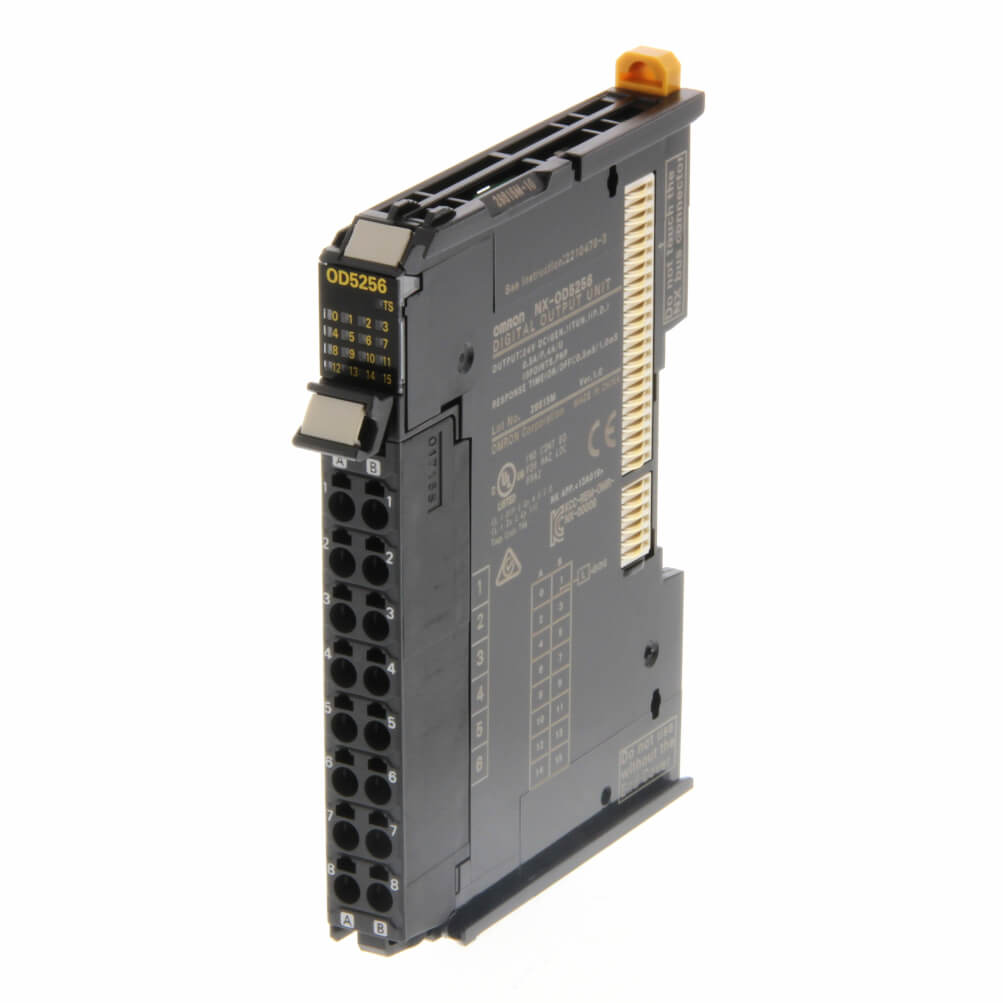

The Original New Omron NX-OD5256 16-Point PNP Digital Output Module is a high-density transistor output unit for the NX series I/O system. Designed for machine automation and factory control applications, it provides 16 PNP (sourcing) outputs rated at 0.5 A per point with short-circuit protection. The screwless push-in terminal block enables tool‑free wiring for fast installation and maintenance. Part of the NX series for EtherCAT communication coupler systems.

Core Engineering Highlights:
16 PNP transistor outputs (sourcing) | 0.5 A per point, 4 A per unit | 0.5 ms ON / 1.0 ms OFF response time | Screwless push-in terminal block | 12 mm width for high-density mounting | Short-circuit protected outputs | IP20 protection | 0°C to +55°C operating temperature

Key Features:

• Original New Omron NX-OD5256 module

• 16 PNP (sourcing) transistor outputs for 24 V DC loads

• 0.5 A per point, 4.0 A per unit output capacity

• 0.5 ms turn-on / 1.0 ms turn-off response time (resistive load)

• Screwless push-in terminal block for tool‑free wiring

• Short-circuit protected outputs for reliable operation

• 12 mm slim design for high-density panel mounting

• Removable terminal block for simplified maintenance

• Standard speed signal processing with free-running and synchronous modes

• 1-wire connection method

• LED indicators for each output point

• DIN rail mounting for space-efficient installation

• 70 g lightweight design

• IP20 protection rating for control cabinet environments

Applications:

• Solenoid valve and relay actuation in machine control systems

• Conveyor and material handling equipment

• Packaging machinery and assembly lines

• Factory automation I/O expansion

• OEM equipment requiring high-density transistor outputs

Technical Specifications:

System Compatibility:

• Compatible with Omron NX series EtherCAT Coupler Units (NX-ECC20×) and EtherNet/IP Coupler Units (NX-EIC202)

• Requires NX series communication coupler unit or NX series CPU unit for operation

• Supports up to 63 NX I/O units per coupler

• Compatible with NJ/NX/NY series controllers

• Mounts on 35 mm DIN rail

Related Products:

• NX-ECC203 – NX series EtherCAT Coupler Unit, 2 ports, 125 µs cycle time

• NX-EIC202 – NX series EtherNet/IP Coupler Unit, 2 ports, local safety support

• NX-ID5442 – 16-point PNP digital input unit (complementary)

• NX-OD5256-1 – Same outputs, screw connector, 30 mm wide, 5 A/NX Unit

• NX-OD5256-5 – Same outputs, MIL20 connector (not included), 30 mm wide

• NX-PF0630 – Additional I/O power supply unit, 4 A, 5-24 V DC

• NX-PF0730 – Additional I/O power supply unit, 10 A, 5-24 V DC

• NX-PD1000 – Additional NX unit power supply, 24 V DC, 10 W

• NX-TBA162 – Terminal block spare part for NX series
