NX-PF0630 Additional I/O Power Supply Unit 4A 5-24V DC 12mm | Omron

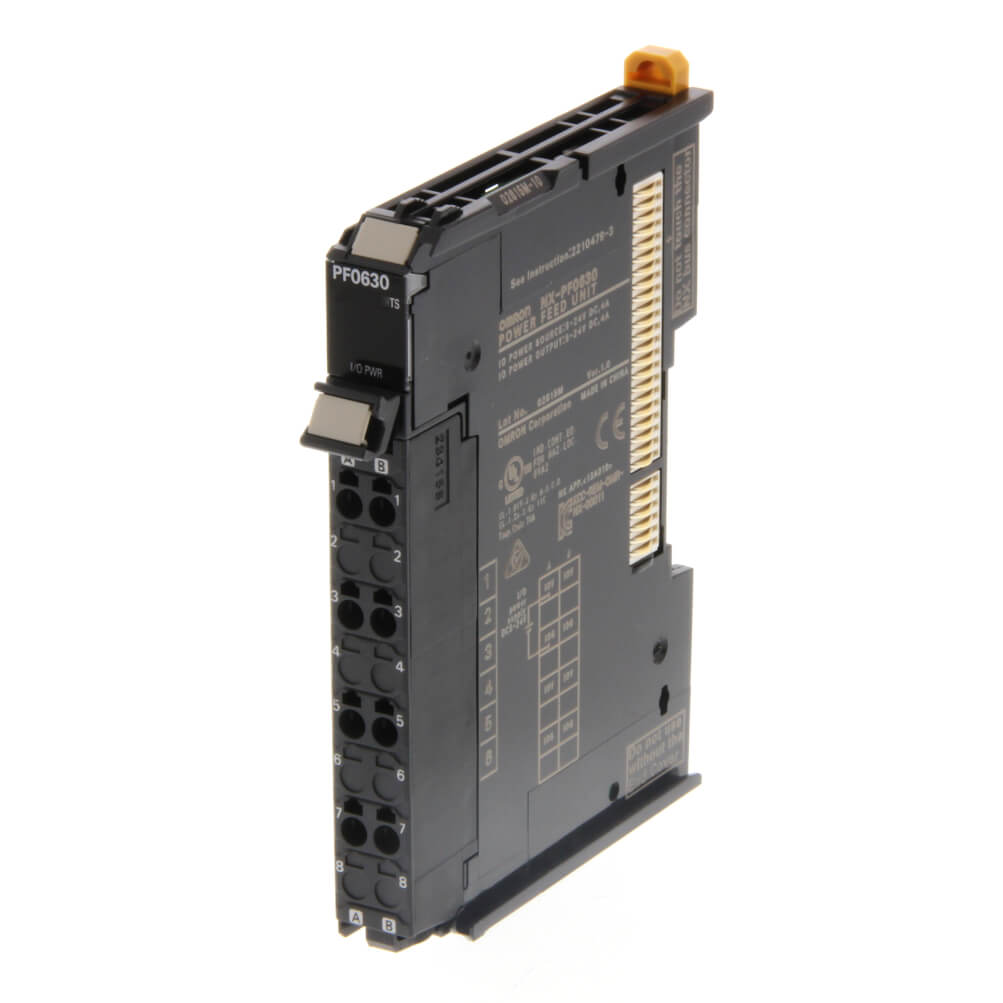

The Original New Omron NX-PF0630 is an additional I/O power supply unit for the NX series I/O system. It supplies I/O power to connected NX I/O units through the NX bus when the built-in power capacity of the EtherCAT Coupler Unit or CPU Unit is insufficient. With a maximum output current of 4 A and an input voltage range of 5 to 24 V DC, this unit supports moderate I/O configurations and enables functional partitioning of I/O power into separate groups. The 12 mm width and screwless push-in terminal block ensure high-density mounting and tool‑free wiring. Part of the NX series system units.

Core Engineering Highlights:
Additional I/O power supply unit | 5–24 V DC input (4.5–28.8 V DC permissible) | 4 A maximum I/O power supply current | 8 screwless push-in terminals (4 IOV + 4 IOG) | 12 mm width | IP20 protection | 65 g weight | 0°C to +55°C operating temperature | No-isolation design

Key Features:

• Original New Omron NX-PF0630 unit

• Additional I/O power supply when built‑in coupler or CPU power capacity is exceeded

• 5–24 V DC wide input voltage range (4.5–28.8 V DC permissible)

• 4 A maximum I/O power supply current

• 8 screwless push-in terminals: 4 IOV (V+) terminals and 4 IOG (V-) terminals

• 12 mm slim design for high-density panel mounting

• Screwless push-in terminal block for tool‑free wiring

• DIN rail mounting for space-efficient installation

• 65 g lightweight design

• IP20 protection for control cabinet environments

• 0°C to +55°C operating temperature

• No-isolation design

• 510 V AC dielectric strength between isolated circuits

Applications:

• Additional I/O power supply when built‑in coupler power capacity is exceeded

• Splitting I/O power into separate groups for isolation or load management

• NX I/O system expansion in machine control panels

• Factory automation, material handling, and packaging machinery I/O configurations

• Moderate NX configurations requiring additional I/O power

Technical Specifications:

Important Usage Notes:

• When connected to the CPU Rack of an NX1P2 CPU Unit, the maximum I/O power supply current is limited to 4 A regardless of unit specifications.

• Refer to the hardware user's manual for the CPU Unit to which NX Units are connected for restrictions on the CPU Rack.

• Use a voltage appropriate for the I/O circuits of the NX Units and connected external devices.

System Compatibility:

• Compatible with Omron NX series I/O system

• Used with NX series EtherCAT Coupler Units (NX-ECC20×)

• Used with NX series EtherNet/IP Coupler Units (NX-EIC202)

• Compatible with NX series CPU Units (NX1P2, NX102, etc.)

• Mounts on 35 mm DIN rail

• Can be connected to CPU Unit, Communication Control Unit, or Communications Coupler Unit

Related Products:

• NX-PF0730 – Additional I/O power supply unit, 10 A, 5-24 V DC (higher capacity)

• NX-PD1000 – Additional NX Unit power supply, 24 V DC, 10 W

• NX-PC0010 – I/O power connection unit, IOG terminals

• NX-PC0020 – I/O power connection unit, IOV terminals

• NX-PC0030 – I/O power connection unit, IOV+IOG terminals

• NX-TBA082 – Replacement screwless push-in terminal block, 8 terminals

• NX-AUX02 – Terminal block coding pins (10 units)

• NX-ECC203 – NX series EtherCAT Coupler Unit, 2 ports, 125 µs cycle time

• NX-ID5442 – 16-point PNP digital input unit

• NX-OD5256 – 16-point PNP digital output unit
