NX-RS1201 Load Cell Input Unit 1 Channel 24-bit 125µs 12mm | Omron

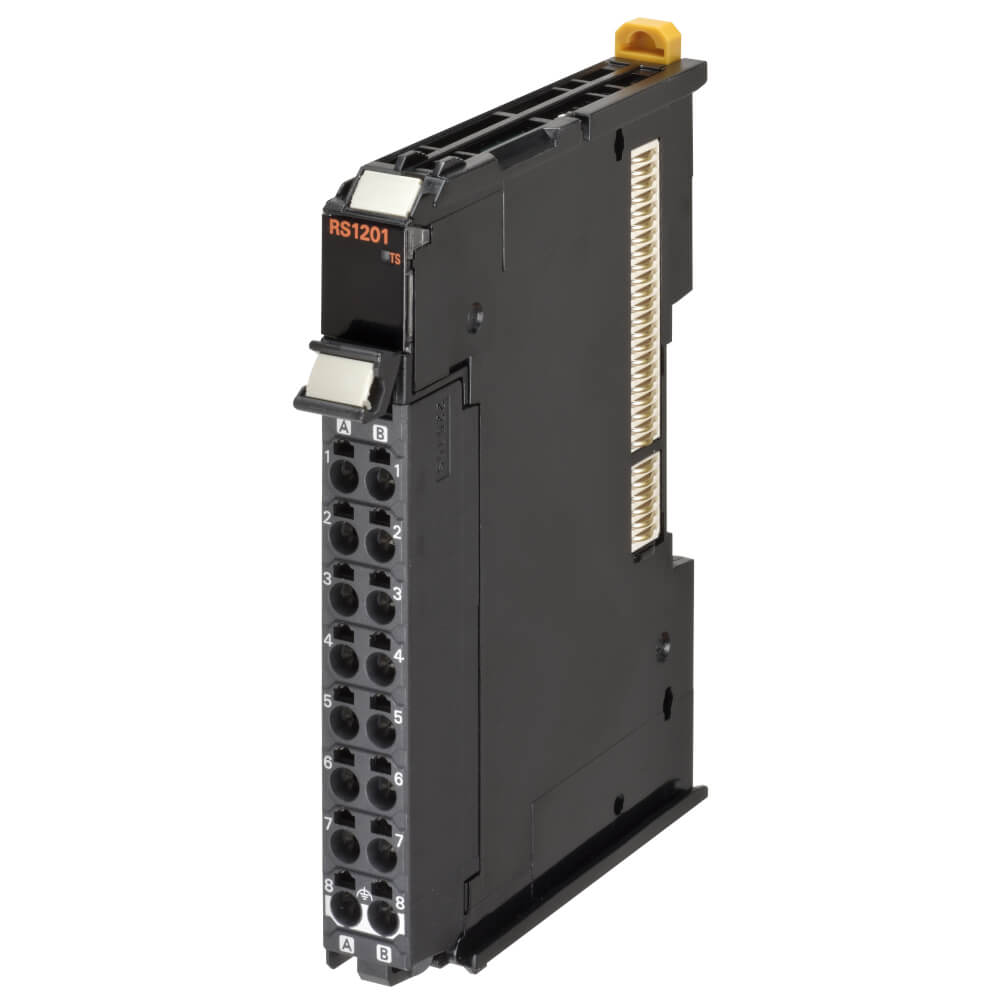

The Original New Omron NX-RS1201 is a 1-channel load cell input unit for the NX series I/O system, designed to convert analog signals from strain-gauge load cells into high-resolution digital weight or force values. Featuring a 24-bit A/D converter, a fast 125 µs conversion cycle, and differential input with -5.0 to 5.0 mV/V range, it delivers precise, high-speed measurements for industrial weighing and force measurement applications. The 12 mm wide module uses screwless push-in terminal blocks for tool‑free wiring. Part of the NX series for EtherCAT communication coupler systems, it enables cost‑saving weighing and measurement systems using load cells.

Core Engineering Highlights:
1 load cell input channel | 24-bit A/D converter resolution | 125 µs conversion cycle | -5.0 to 5.0 mV/V input range | Differential input circuit | 5V DC ±10% load cell excitation voltage | 4-wire or 6-wire load cell connection | Free-run, synchronous, and task period prioritized I/O refreshing | Screwless push-in terminal block (NX-TBC162) | 12 mm width for high-density mounting | IP20 protection | 0°C to +55°C operating temperature

Key Features:

• Original New Omron NX-RS1201 module

• 1 load cell input channel with 24-bit A/D converter

• 125 µs conversion cycle for high-speed measurement

• -5.0 to 5.0 mV/V input range for load cell signals

• Differential input circuit for improved noise immunity and measurement stability

• 5V DC ±10% load cell excitation voltage (max. 60 mA)

• Supports 4-wire and 6-wire load cell connections

• Three I/O refreshing methods: Free-run, Synchronous, Task period prioritized

• Screwless push-in terminal block for tool‑free wiring

• Terminal block coding pins for misinsertion prevention

• Digital filtering and calibration functions

• LED indicators for module status and input signal monitoring

• 12 mm slim width for high-density panel mounting

• NX series I/O system compatible with EtherCAT and EtherNet/IP couplers

• IP20 protection rating

• CE, UL, CSA, NK, DNV, BV, KR, ABS certified

• RoHS compliant

Applications:

• Industrial weighing and force measurement systems

• Load cell signal acquisition for silo, tank, and hopper weighing

• Packaging machinery weight inspection and checkweighing

• Filling and dosing systems

• Material handling and conveyor belt scales

• Process control and quality assurance

• OEM equipment requiring high-precision load cell input

• Distributed I/O systems using NX series architecture

Technical Specifications:

System Compatibility:

• Compatible with Omron NX series EtherCAT Coupler Units (NX-ECC20×) and EtherNet/IP Coupler Units (NX-EIC202)

• Requires NX series communication coupler unit or NX series CPU unit for operation

• Supports free-run, synchronous, and task period prioritized I/O refreshing

• Compatible with NJ/NX/NY series controllers

• Mounts on 35 mm DIN rail

• Terminal block coding pins (NX-AUX02) available for misinsertion prevention

Related Products:

• NX-ECC203 – NX series EtherCAT Coupler Unit, 2 ports, 125 µs cycle time

• NX-EIC202 – NX series EtherNet/IP Coupler Unit, 2 ports, local safety support

• NX-TBC162 – Replacement screwless push-in terminal block, 16 terminals

• NX-AUX02 – Terminal block coding pins for 10 units

• NX-RS1201-K – Load cell input unit with test and calibration certificate
