NX-SID800 8-Point Safety Input Unit PNP 24V SIL3 | Omron

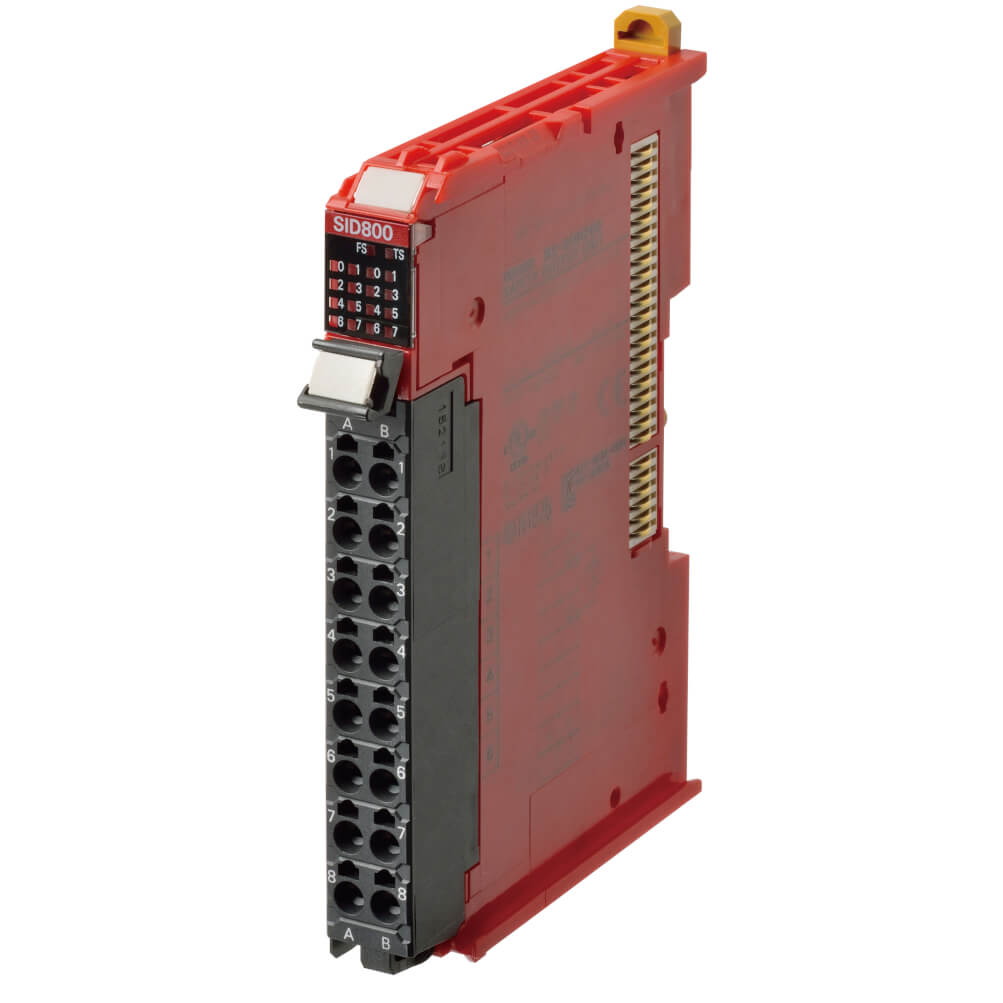

The Original New Omron NX-SID800 is an 8-point safety input unit for the NX series I/O system, designed for SIL 3 (IEC 61508) and PLe / Category 4 (ISO 13849-1) safety applications. It features 8 PNP (sourcing) safety inputs rated at 24 V DC, 2 test outputs for sensor diagnostics, and screwless push-in terminals for tool‑free wiring. As part of the NX series safety I/O system, it supports Free-Run refreshingand is compatible with NX-series EtherCAT Couplers and Safety CPU units for integrated safety control in machine automation.

Core Engineering Highlights:
8 PNP safety inputs | 2 test outputs | SIL 3 (IEC 61508) / PLe Cat.4 (ISO 13849-1) | 24 V DC (20.4–28.8 V permitted) | 3.0 mA typical input current | 0 ms OFF/ON delay | Screwless push-in terminal block | 12 mm width | IP20 protection | 0°C to +55°C operating temperature | Free-Run refreshing

Key Features:

• Original New Omron NX-SID800 safety input unit

• 8 safety inputs (PNP, 24 V DC)

• 2 test outputs for sensor power supply and diagnostics

• SIL 3 (IEC 61508) and PLe / Category 4 (ISO 13849-1) certified

• 0 ms OFF/ON delay for fast response

• 3.0 mA typical input current

• 4-wire connection method

• Screwless push-in terminal block for tool‑free wiring

• 12 mm width for high-density mounting

• Removable terminal block for easy maintenance

• Free-Run refreshing for flexible I/O timing

• IP20 protection for control cabinet installation

• 90 g weight

Applications:

• Emergency stop and safety gate monitoring

• Light curtain and safety sensor integration

• Two-hand control systems and enabling switches

• Robot cell and conveyor safety circuits

• Machine safety applications requiring SIL 3 / PLe

• Distributed safety I/O for NX series systems

• OMRON special safety input devices support (e.g., D40A, D41D non-contact door switches)

Technical Specifications:

System Compatibility:

• Compatible with Omron NX series EtherCAT Coupler Units (NX-ECC20×)

• Compatible with NX series Safety CPU Units (NX-SL3300)

• Supports up to 63 NX I/O units per coupler

• Compatible with NJ/NX/NY series controllers (via EtherCAT with Safety CPU)

• OMRON special safety input devices: D40A, D41D non-contact door switches can be connected

Related Products:

• NX-ECC203 – NX series EtherCAT Coupler Unit, 2 ports, 125 µs cycle time

• NX-SL3300 – NX series Safety CPU Unit, 32 safety master connections

• NX-SOD400 – 4-point PNP safety output unit, 0.5A/point

• NX-SOH200 – 2-point safety output unit, 2.0A/point

• NX-TBA162 – Replacement screwless push-in terminal block, 16 terminals

• NX-AUX02 – Terminal block coding pins for NX I/O units

• NX-TBA082 – Replacement terminal block, 8 terminals, 10A
