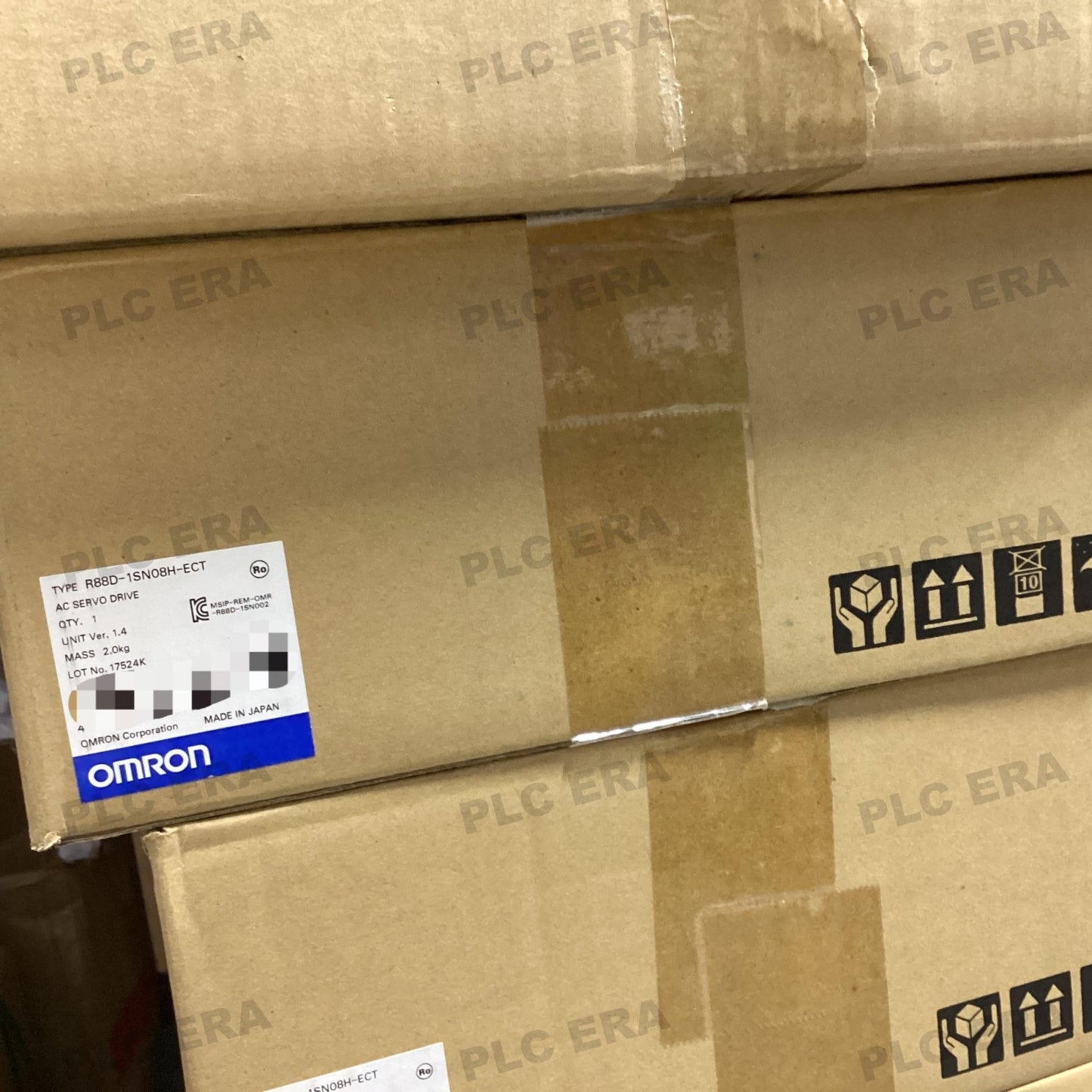

Omron R88D-1SN08H-ECT 1S Series 800W EtherCAT Servo Drive 230V Single‑Phase

Omron R88D‑1SN08H‑ECT is a high‑performance AC servo drive in the 1S series, featuring built‑in EtherCAT communications for precise motion control in industrial automation applications. Rated output 800 W (0.75 kW) at 230 V single‑phase input. Designed to work with 1S series AC servomotors (R88M‑1L and R88M‑1M series) for integrated motion control, the drive supports high‑resolution 23‑bit multi‑turn absolute encoder without battery backup, a new innovative control loop (TDF), and dual‑layer Safe Torque Off (STO) safety functions. Pluggable connectors and screwless push‑in terminals simplify pre‑wiring and system maintenance. IP20 enclosure.

Applications:

• Robotics and automated guided vehicles (AGVs)

• Machine tools and CNC machining

• Packaging machinery and material handling systems

• Conveyor speed and positioning control

• General factory automation requiring EtherCAT motion control

Technical Specifications:

Core Specifications

• Series: 1S (Sysmac 1S Series)

• Product type: AC servo drive

• Rated output power: 800 W (0.75 kW)

• Rated input current (single‑phase): 7.3 A

• Main circuit supply voltage: 200‑240 V AC, single‑phase (50/60 Hz)

• Control circuit supply voltage: 24 V DC (external)

• Encoder resolution: 23‑bit (8,388,608 pulses/revolution), multi‑turn absolute without battery backup

Performance & Communications

• Control method: EtherCAT (CoE, CiA402 drive profile)

• Communications cycle: 125 µs

• Control modes: CSP, CSV, CST (cyclic synchronous position/velocity/torque), PP, PV (profile position/velocity), homing

• Speed range: up to 6,000 rpm (motor‑dependent)

• Safety functions: Hardwired STO (PLe/SIL3), Safety over EtherCAT (FSoE) (PLd/SIL2)

I/O & Protection

• Digital inputs: general‑purpose I/O, configurable (detailed pin assignment in product manual)

• Digital outputs: general‑purpose I/O, configurable

• Built‑in relay for direct motor brake control

• Enclosure rating: IP20

• Overload protection: electronic

• Overheat protection: motor temperature monitoring (PTC thermistor)

• Overvoltage / undervoltage protection: standard

Mechanical Specifications

• Height: 226.5 mm (8.9 inches)

• Width: 65 mm (2.56 inches)

• Depth: 226.05 mm (8.9 inches)

• Weight: 2.0 kg (4.41 lbs)

Environmental Specifications

• Operating ambient temperature: 0 °C … 55 °C (derating may apply for side‑by‑side mounting)

• Operating humidity: 20% … 90% (non‑condensing)

• Storage temperature: –20 °C … +85 °C

• Altitude: 1,000 m max.

• Vibration resistance: 5.88 m/s² (0.6 G)

• Certifications: CE, UL, cUL, RoHS

System Integration:

• This servo drive belongs to the Omron Sysmac 1S series.

• Designed for use with Omron NJ/NX/NY‑series machine automation controllers via EtherCAT.

• Compatible with 1S series AC servomotors (R88M‑1L and R88M‑1M series) for a complete integrated motion system.

• The servo drive supports Sysmac Studio automation software for parameter setting, tuning, and maintenance.

• I/O signals are available via pluggable connectors.

Features & Benefits:

• 23‑bit high‑resolution absolute encoder: multi‑turn absolute without battery backup eliminates homing routines and battery maintenance

• Dual‑layer STO safety: hardwired STO up to PLe/SIL3, and Safety over EtherCAT (FSoE) up to PLd/SIL2

• Pluggable connectors: fast pre‑wiring and easy module replacement reduces downtime

• Built‑in relay for motor brake: direct brake control without external relay components

• Improved loop control: enhanced control algorithm reduces overshoot and settling time for better machine productivity

• 125 μs communications cycle: supports high‑speed synchronous motion control

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• R88M‑1L series – 1S series AC servomotors (various power ratings from 50 W to 15 kW)

• R88A‑CA1A003S – 3 m motor power cable with pre‑molded connectors (IP67)

• R88A‑CRKA003S – 3 m encoder feedback cable

• NJ501‑1300 – NJ‑series machine automation controller with EtherCAT

• NX‑ECC203 – EtherCAT Coupler Unit for NX I/O expansion

• Sysmac Studio – Integrated development environment for configuration and programming
