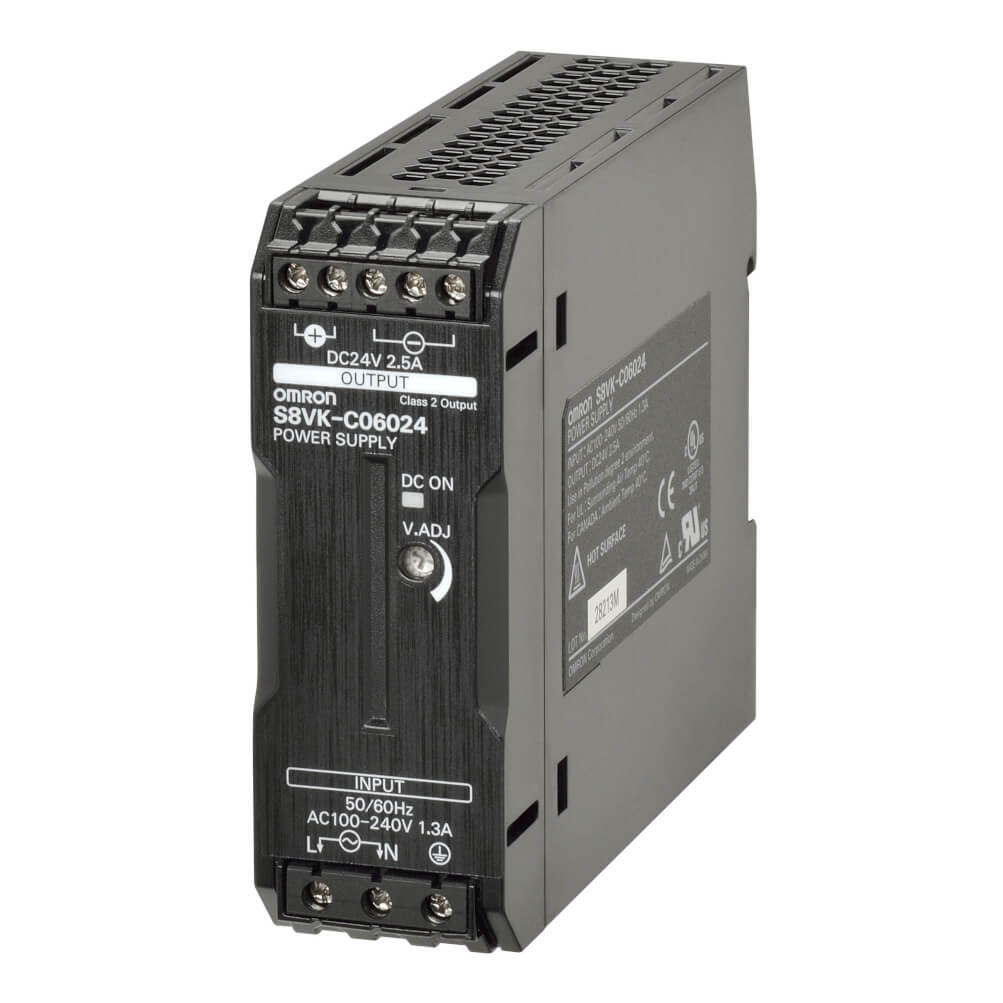

S8VK-C06024 Book Type Power Supply 60W 24V 2.5A DIN Rail | Omron

The Original New Omron S8VK-C06024 is a 60W single-output switch mode DIN rail power supply from the S8VK-C Lite series. It converts a wide range of AC or DC input voltages into a stable 24V DC output, providing reliable power for PLCs, sensors, HMIs, relays, and other industrial automation devices. With its compact 32mm wide book-type design, 88% efficiency, and global safety certifications, this power supply is ideal for cost-sensitive applications requiring dependable high-quality power.

Core Engineering Highlights:
60W output power | 24V DC output (2.5A) | 88% typical efficiency | 85–264V AC / 90–350V DC wide-range input | –25°C to +60°C operating temperature | 3kV isolation voltage | DIN rail mounting | 32mm width book-type design | IP20 protection | Adjustable output voltage via front potentiometer | Natural convection cooling (fanless)

Key Features:

• Original New Omron S8VK-C06024 power supply

• 60W rated output power with 24V DC @ 2.5A output

• Universal AC input: 85–264V AC, 47–63Hz

• DC input capability: 90–350V DC for flexible system integration

• 88% typical efficiency for reduced energy costs

• 3kV isolation voltage (input to output) for enhanced safety

• Adjustable output voltage via front panel potentiometer

• Built-in protections: overcurrent, overvoltage, short-circuit, overtemperature

• Compact book-type design: 32mm width for space-saving DIN rail mounting

• Natural convection cooling – no fan required

• IP20 protection rating (finger-safe)

• Screw terminal connections for secure wiring

• Wide operating temperature range: –25°C to +60°C

Applications:

• Power supply for PLC controllers and control systems

• Sensor and I/O module power distribution

• HMI panel power supply

• Relays and contactor coil energizing

• Factory automation systems (conveyors, packaging equipment, robotics)

• Building automation (HVAC, lighting controls)

• Process industry control cabinets

Technical Specifications:

System Compatibility:

• Compatible with Omron PLC systems (CP, CJ, CS, NJ, NX series)

• Suitable for powering Omron and third-party sensors, actuators, HMIs, and relays

• Compatible with 35mm DIN rail mounting systems

• Accepts universal AC input for global installation

• DC input capability allows integration with battery-backed or DC-supplied systems

Related Products:

• S8VK-C12024 – 120W / 24V / 5A (mid power)

• S8VK-C24024 – 240W / 24V / 10A (higher power)

• S8VK-C48024 – 480W / 24V / 20A (highest power)

• S82Y-VS10F – Front-mounting bracket (for 60W models)

• S82Y-VS10S – Side-mounting bracket (for 60W models)

• S8VK-C06024 – 60W / 24V / 2.5A (current model)

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Omron is a trademark of Omron Corporation.
