S8VK-C12024 120W 24V 5A DIN Rail Power Supply | Omron

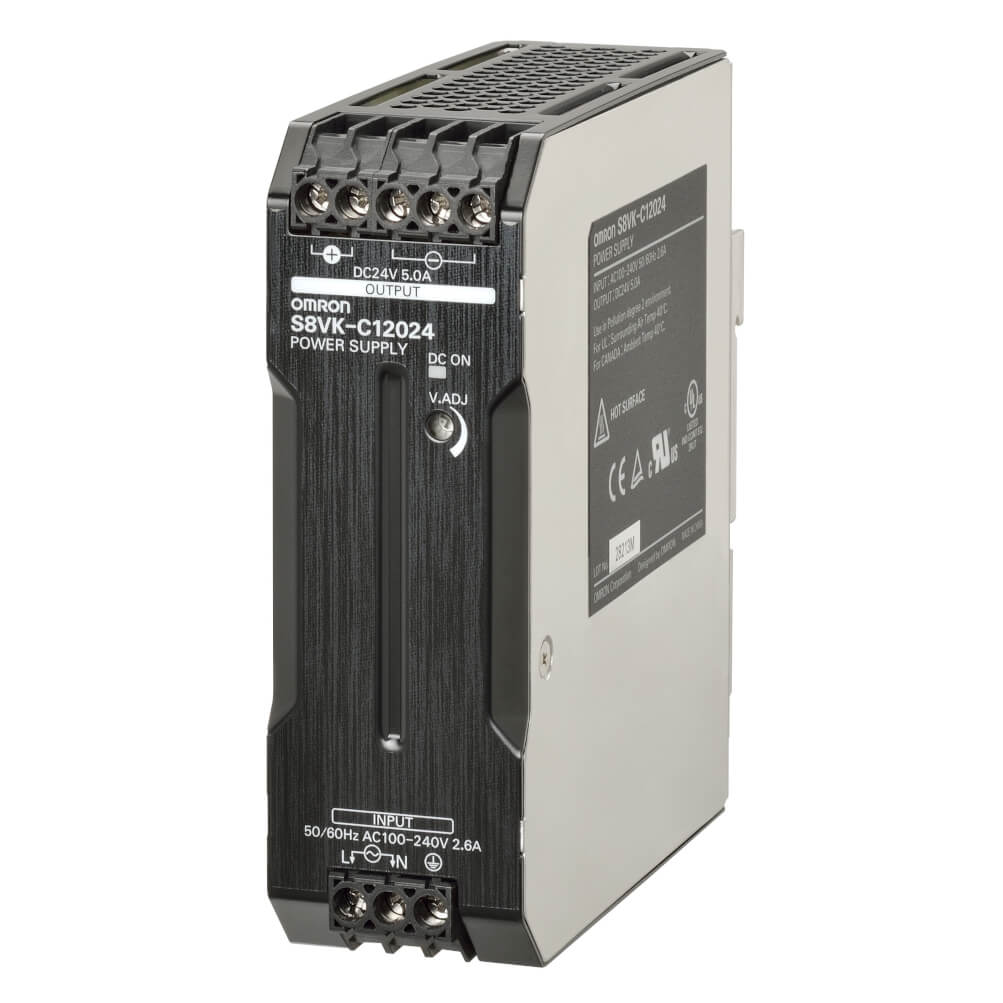

The Original New Omron S8VK-C12024 is a cost-effective single-phase DIN rail power supply from the S8VK-C Series, delivering 120W of stable 24V DC power at 5A. Engineered for industrial automation and control cabinet applications, this enclosed switch-mode power supply accepts a universal AC input (100‑240 VAC) and is also DC input capable (90‑350 VDC) for versatile global use. Featuring an impressive 88% typical efficiency, a wide -25°C to +60°C operating temperature range, and comprehensive protection circuits, the S8VK-C12024 provides reliable, maintenance-free power for PLCs, sensors, actuators, and other 24V DC industrial devices.

Core Engineering Highlights:
120W output power (24V DC, 5A) | 88% typical efficiency | Universal AC input: 100‑240 VAC (85‑264 VAC permissible) | DC input capable: 90‑350 VDC | Wide operating temperature: -25°C to +60°C | 3kV isolation voltage | Comprehensive protection: Overcurrent, Overvoltage, Short-circuit, Over-temperature | 10-year minimum life expectancy (at 40°C, 50% load) | MTBF: 490,000 hours | Compact book-type design | DIN rail mounting | Screw terminal block | IP20 protection

Key Features:

• Original New Omron S8VK-C12024 power supply

• Cost-effective S8VK-C Series for industrial automation

• 120W output power with 24V DC at 5A

• 88% typical efficiency for reduced energy consumption and heat generation

• Universal AC input: 100‑240 VAC (85‑264 VAC permissible)

• DC input capable: 90‑350 VDC for flexible system design

• 3kV isolation voltage for safety and reliability

• Comprehensive protection: Overcurrent, Overvoltage, Short-circuit, Over-temperature

• 10-year minimum life expectancy (at 40°C, 50% load)

• MTBF: 490,000 hours

• Wide operating temperature range: -25°C to +60°C

• Compact book-type design for space-saving installation in control cabinets

• DIN rail mounting for easy and secure installation

• Screw terminal block for reliable wiring

• IP20 protection for control cabinet environments

• CE, TUV, cURus, and RoHS compliant

Applications:

• Power supply for PLC, I/O modules, sensors, and actuators in control cabinets

• Industrial automation and machine control systems

• Conveyor and material handling equipment

• Packaging machinery and factory automation

• Control panel power distribution

• OEM equipment and general industrial applications requiring reliable 24V DC power

Technical Specifications:

System Compatibility:

• Compatible with Omron SYSMAC CJ, CS, CP, and NJ/NX series PLC systems

• Suitable for powering NX series I/O units, CJ-series modules, and CP-series controllers

• Can be used with a wide range of industrial automation devices requiring 24V DC power

• Works with any 35mm DIN rail system

Related Products:

• S8VK-C06024 – 60W / 24V / 2.5A (lower power variant)

• S8VK-C24024 – 240W / 24V / 10A (higher power variant)

• S8VK-C48024 – 480W / 24V / 20A (highest power variant)

• S82Y-VK10F – Front‑mounting bracket for 120W models

• S82Y-VK10S – Side‑mounting bracket for 120W models

• PFP-100N – DIN Rail (aluminum, 1m length)

• PFP-100N2 – DIN Rail (aluminum, 1m length, slotted)

• PFP-M – End plate for DIN rail

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Omron is a trademark of Omron Corporation.
