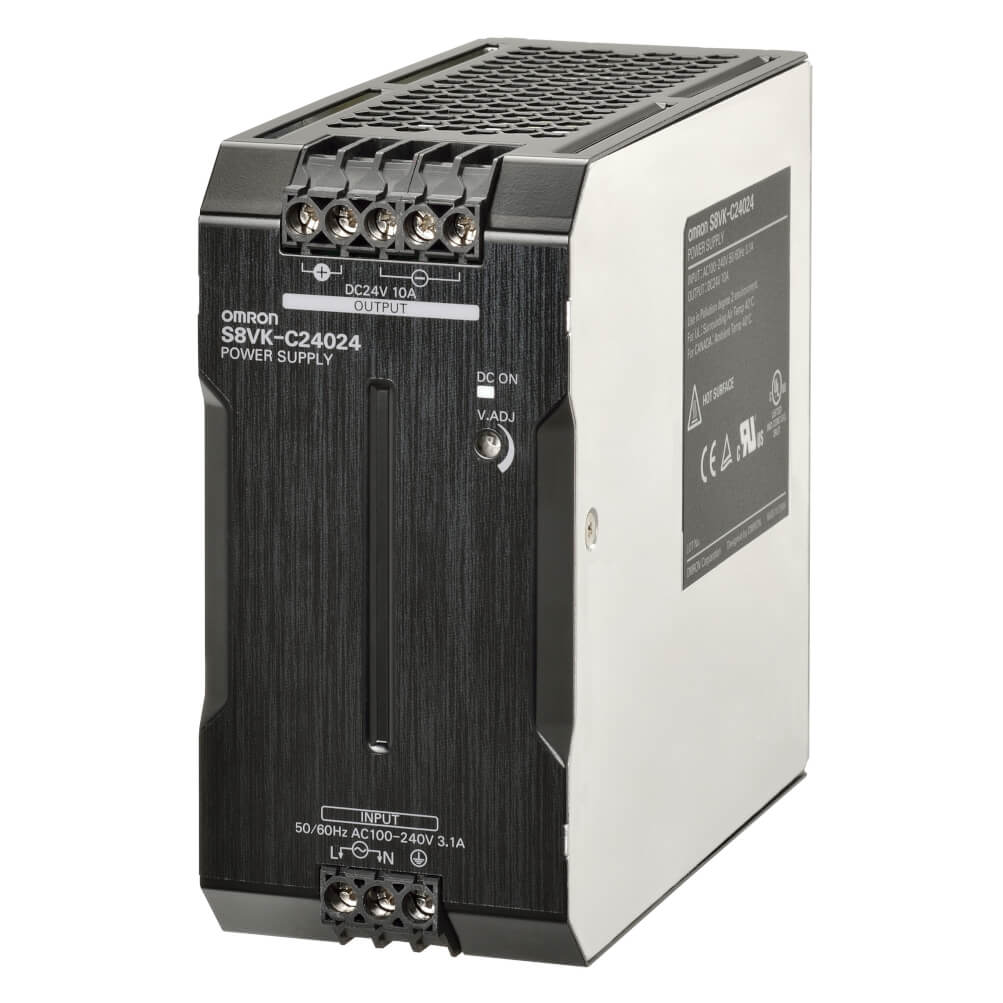

Omron S8VK-C24024 Book Type Power Supply 240W 24V 10A DIN Rail

Omron S8VK-C series is a cost-effective single-phase switch mode power supply for industrial control cabinets and automation systems. Rated output power 240W at 24V DC, 10A output current. Book-type design for space-saving DIN rail mounting. Universal input accepts 100‑240V AC (85‑264V AC range) or 90‑350V DC for worldwide applications. Efficiency 89% typical. Free‑air convection cooling. Wide operating temperature range –25°C to +60°C with appropriate derating.

Applications:

• Power supply for PLC, I/O modules, sensors and actuators in control cabinets

• Machine automation and industrial control panels

• Conveyor systems and material handling equipment

• Packaging machinery and factory automation

Core Specifications:

• Output power: 240W

• Output voltage: 24V DC (adjustable range 22.5‑28.8V)

• Output current: 10A

• Input voltage (AC): 100‑240V AC (85‑264V AC range), 50/60Hz

• Input voltage (DC): 90‑350V DC

• Efficiency: 89% typical (230V AC input)

• Isolation voltage: 3kV

• Protection rating: IP20

• Cooling: Free‑air convection (no fan)

• Mounting: DIN rail (35mm), book type

• Dimensions (H × W × D): 125mm × 60mm × 122.2mm

• Weight: approx. 850g

• Operating temperature: –25°C … +60°C (with derating above 40°C)

Advanced Specifications:

• Hold‑up time: 128ms at 230V AC / 27ms at 115V AC

• Ripple and noise: 120mV

• Output voltage adjustment range: 22.5‑28.8V DC

• Line regulation: 0.5% max

• Load regulation: 1.5% max

• Ambient operating humidity: 20‑90% (non‑condensing)

• Storage temperature: –25°C … +65°C

• MTBF: refer to manufacturer official documentation

• Approval agencies: CE, cURus, TÜV

Features:

• Double set of DC output terminals for easy parallel wiring

• Adjustable output voltage via built‑in potentiometer

• DC input capable (90‑350V DC) for flexible system design

• Universal input for worldwide use

• Improved DIN rail mounting clip for vibration resistance

• Cost‑effective book‑type design for space‑constrained panels

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• S8VK-C06024 – 60W / 24V / 2.5A (lower power)

• S8VK-C12024 – 120W / 24V / 5A (mid power)

• S8VK-C24024 – 240W / 24V / 10A (current model)

• S8VK-C48024 – 480W / 24V / 20A (higher power)

• S82Y-VK10F – Front mounting bracket for 120/240/480W models

• S82Y-VK10S – Side mounting bracket for 240W model
