XW2Z-100K 40-Pin MIL I/O Connecting Cable 1m Shielded | Omron

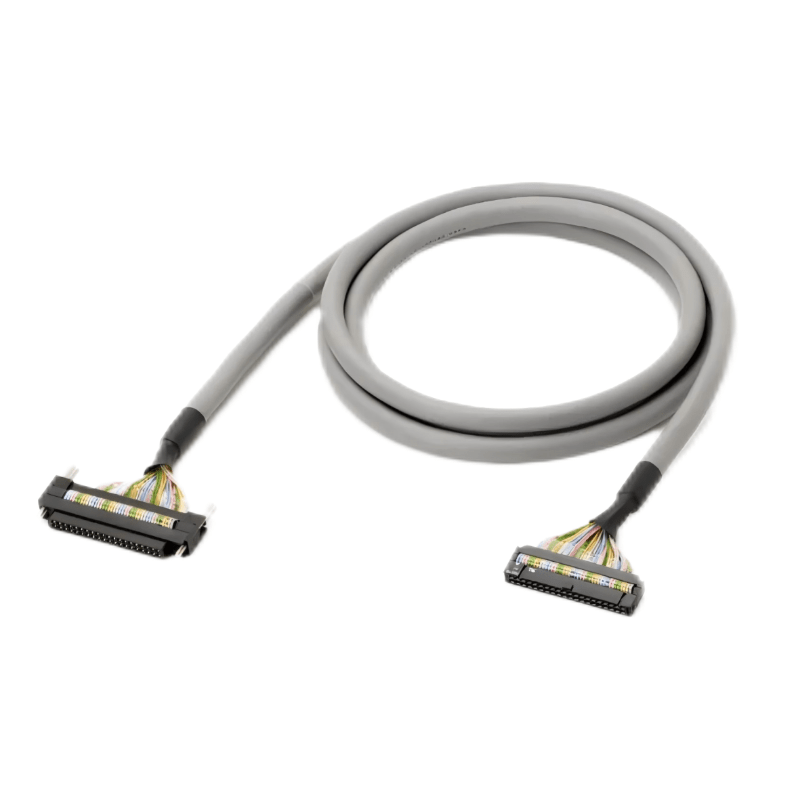

The Original New Omron XW2Z-100K is a shielded 40-pin MIL I/O connecting cable designed for Omron SYSMAC CJ/CS/NJ series PLC systems. It connects an I/O unit with a 40-pin MIL connector (Fujitsu-compatible) to a connector-terminal block conversion unit (XW2D-40G6). Featuring straight rectangular MIL connectors on both ends with 1m length, this cable is suitable for digital signal transmission in factory automation and machine control panels.

Core Engineering Highlights:
40-pin MIL to 40-pin MIL straight connection | 1m cable length (3.28 ft) | Shielded UL2464 interface cable | AWG28 conductors | 1A rated current | AC125V / DC30V rated voltage | 100 MΩ min insulation resistance | AC500V dielectric strength | –20°C to +75°C operating temperature | 167g weight | RoHS compliant | UL certified

Key Features:

• Original New Omron XW2Z‑100K cable

• 40‑pin MIL to 40‑pin MIL straight connection

• 1m (3.28 ft) cable length for flexible system layout

• Shielded construction for noise immunity in industrial environments

• UL2464 interface cable with AWG28 conductors

• 1A current rating for reliable signal transmission

• UL certified (File No. E103202) for safety compliance

• RoHS compliant for environmental standards

• Straight rectangular connectors on both ends for easy installation

• Supports digital signal transmission in high-density I/O applications

• Pre-assembled and tested for immediate use

• Active product with full factory support

Applications:

• Connection between CJ‑series I/O units and XW2D‑40G6 terminal block conversion units

• Field wiring for high‑density MIL connector I/O modules

• Machine automation and control panel wiring

• Replacement of existing XW2Z‑100K cables in system maintenance

• PLC system integration for CS1, CJ1, CJ2, NJ series controllers

• Digital signal transmission in factory automation environments

Technical Specifications:

System Compatibility:

• Compatible with Omron SYSMAC CJ/CS/NJ series PLC systems

• Compatible with Omron CJ1W‑ID231, CJ1W‑ID232, CJ1W‑ID262, CJ1W‑OD231, CJ1W‑OD232, CJ1W‑OD262, CJ1W‑MD231, CJ1W‑MD232, CJ1W‑MD233, CJ1W‑MD263, CJ1W‑OD261, CJ1W‑OD263 I/O units

• Suitable for CS1, CJ1, CJ2, NJ series controllers

• Connects to XW2D‑40G6 connector‑terminal block conversion units

Related Products:

• XW2D‑40G6 – Connector‑terminal block conversion unit (M3 screw terminals, 40‑pin MIL)

• XW2Z‑050K – I/O connecting cable, 0.5 m length

• XW2Z‑200K – I/O connecting cable, 2 m length

• CJ1W‑ID231 – 32‑point DC input unit (Fujitsu connector)

• CJ1W‑ID232 – 32‑point DC input unit (MIL connector)

• CJ1W‑OD262 – 64‑point PNP transistor output unit (MIL connector)

• XG4M-4030-T – MIL 40-pin connector replacement

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Omron and SYSMAC are trademarks of Omron Corporation.
