PK6524 Electronic Pressure Switch 0-10 bar PNP G1/4 | IFM

PK6524 Electronic Pressure Switch 0-10 bar PNP G1/4 | IFM

31 in stock

$129.00 USD
$129.00 USD
Sale Sold out
Shipping calculated at checkout.

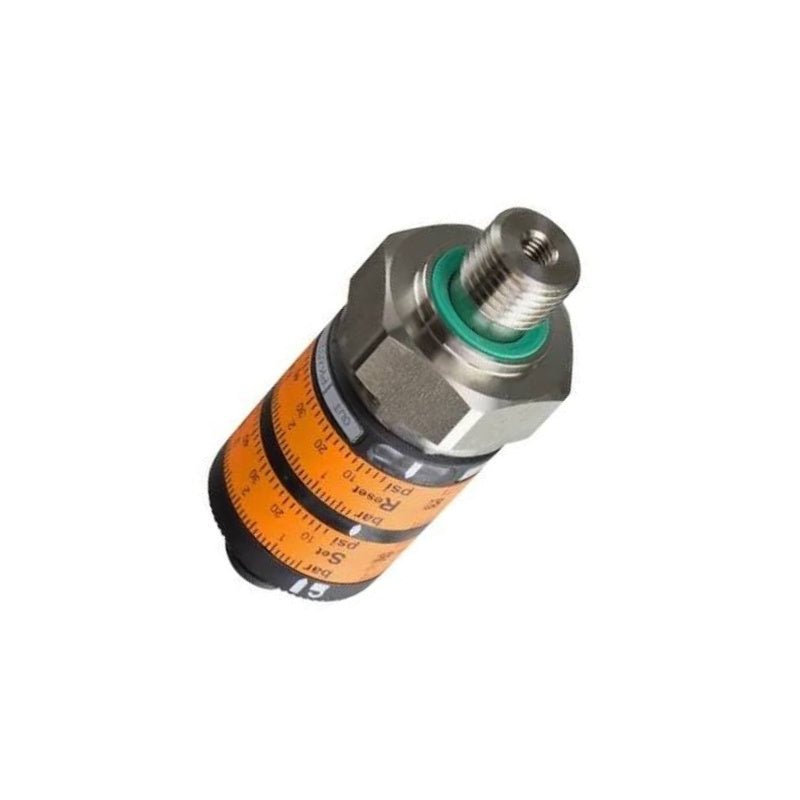

The Original New IFM PK6524 Electronic Pressure Monitor is a robust pressure switch designed for reliable system pressure detection in hydraulics, pneumatics, air-conditioning, and refrigeration applications. Featuring a 0 to 10 bar measuring range, G1/4 threaded process connection, and two complementary PNP switching outputs, this pressure monitor delivers precise and durable performance. Simple switch point setting by means of two setting rings allows optimum reading, while mechanical locking prevents inadvertent switch point manipulation.

Core Engineering Highlights:
0‑10 bar (0‑145 psi) measuring range | Two complementary PNP switching outputs | G1/4 external thread with M5 internal thread process connection | 25 bar pressure rating / 300 bar bursting pressure | ‑25°C to +80°C medium & ambient temperature | IP67 protection | 92.5 g weight | PBT, PC, FKM, stainless steel (1.4404/316L) construction | >50 million pressure cycle lifespan

Key Features:

  • Original New IFM PK6524 pressure monitor

  • Simple switch point setting by means of two setting rings allowing optimum reading

  • Mechanical locking prevents inadvertent switch point manipulation

  • High long‑term stability thanks to robust stainless steel measuring cell with high permissible pressure rating

  • Lifespan of more than 50 million pressure cycles

  • Two complementary PNP outputs (NO + NC)

  • 500 mA output current capacity per channel

  • IP67 protection for harsh industrial environments

  • 9.6‑32 V DC wide operating voltage range

  • Suitable for liquids and gases

  • Relative pressure measurement type

Applications:

  • Hydraulic system pressure monitoring

  • Pneumatic system pressure control

  • Air‑conditioning and refrigeration systems

  • Industrial machinery and equipment pressure detection

  • Liquid and gas pressure monitoring in industrial environments

  • OEM machine building and panel integration

Technical Specifications:



Attribute Specification
Catalog Number PK6524
Product Code PK-010-RFG14-HCPKG/US/ /W
Product Type Electronic pressure monitor (pressure switch)
Measuring Range 0‑10 bar / 0‑145 psi
Set Point (SP) 0.5‑10 bar / 7.5‑145 psi
Reset Point (rP) 0.3‑9.8 bar / 5‑142 psi
Switch Point Accuracy < ±2.5% of final value
Repeatability < ±0.5% of final value (with temperature fluctuation <10K)
Characteristics Deviation < ±1.5% (BFSL) / < ±2.5% (LS)
Temperature Drift < ±0.5% per 10K


Attribute Specification
Type of Pressure Relative pressure
Process Connection G 1/4 external thread with M5 internal thread
Pressure Rating 25 bar / 362 psi / 2.5 MPa
Min. Bursting Pressure 300 bar / 4350 psi / 30 MPa


Attribute Specification
Operating Voltage 9.6‑32 V DC
Current Consumption <25 mA
Output Type 2 x PNP (complementary NO/NC)
Output Current 500 mA per output
Switching Frequency 100 Hz
Short-circuit Protection Yes (non-latching)
Overload Protection Yes
Reverse Polarity Protection Yes
Insulation Resistance ≥100 MΩ (500 V DC)
Protection Class III


Attribute Specification
Medium Temperature –25°C to +80°C
Ambient Temperature –25°C to +80°C
Storage Temperature –40°C to +100°C
Protection Rating IP67
Material PBT, PC, FKM, stainless steel (1.4404/316L)
Wetted Parts Stainless steel (1.4404/316L), FKM
Weight 92.5 g
Dimensions Ø 27 mm / L = 71.6 mm
Tightening Torque 25 Nm
Min. Pressure Cycles 50 million
MTTF 500 years


Attribute Specification
EMC DIN EN 61000-6-2, DIN EN 61000-6-3
Shock Resistance 50 g (11 ms) per DIN EN 60068-2-27
Vibration Resistance 20 g (10‑2000 Hz) per DIN EN 60068-2-6
Pressure Equipment Directive Sound engineering practice; group 2 fluids, group 1 on request

System Compatibility:

  • Compatible with PLCs via PNP digital inputs (2 channels)

  • Suitable for 9.6‑32 V DC power supplies (Class 2 source recommended)

  • G1/4 process connection compatible with standard hydraulic and pneumatic fittings

  • M5 internal thread for additional mounting or connection options

Related Products:

  • EVC001 – M12 female cordset, 2m

  • EVC002 – M12 female cordset, 5m

  • EVC003 – M12 female cordset, 10m

  • EVC551 – M12 female cordset, 2m

  • PK6521 – 0‑10 bar, NPN output version

  • PK6534 – Alternative pressure range

  • Mounting adapters – For various process connection configurations

  • Calibration certificates – For traceable pressure calibration
