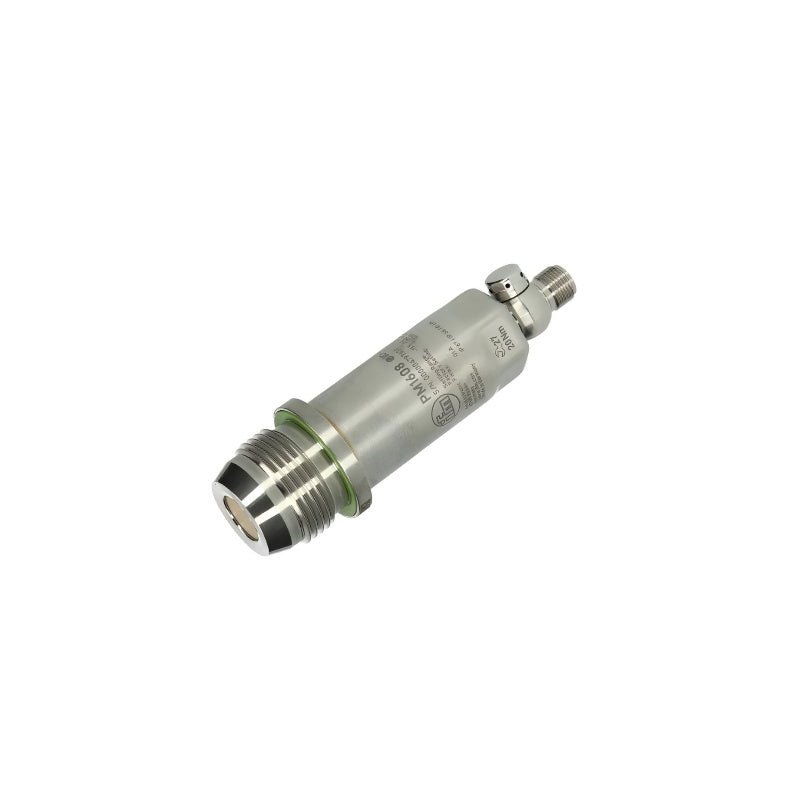

PM1608 Flush Pressure Transmitter -0.0125…0.25 bar 4‑20mA IO‑Link | IFM

The Original New IFM PM1608 Flush Pressure Transmitter is a hygienic, flush‑mount pressure sensor designed for the food and beverage industry. Featuring a ceramic‑capacitive measuring cell in a fully welded stainless steel housing with G1 external thread sealing cone process connection, it enables dead‑space‑free installation to prevent product buildup and bacterial growth. Resistant to high‑pressure cleaning with aggressive cleaning agents and high temperatures, the transmitter provides a scalable 4‑20 mA analog output with IO‑Link communication.

Core Engineering Highlights:
-0.0125…0.25 bar / -12.5…250 mbar measuring range | Ceramic‑capacitive measuring cell | 4‑20 mA scalable analog output + IO‑Link | G1 external thread sealing cone process connection | –25…150°C medium temperature | 6000 mbar pressure rating / 30000 mbar burst pressure | IP67 / IP68 / IP69K protection | 18–30V DC | 2‑wire or 3‑wire operation | Gold‑plated contacts | Fully welded stainless steel housing | Dead‑space‑free flush design

Key Features:

• Original New IFM PM1608 transmitter

• Hygienic flush‑mount design — no dead space, prevents product buildup and bacterial growth

• Robust stainless steel housing for food and beverage industry applications

• Resistant to high‑pressure cleaning with aggressive cleaning agents

• High temperature resistance up to 150°C medium temperature

• High protection rating: IP67, IP68, IP69K

• Ceramic‑capacitive measuring cell with high overload resistance and long‑term stability

• Scalable 4‑20 mA analog output with adjustable measuring range

• IO‑Link communication for parameter setting, diagnostics, and process data

• Gold‑plated contacts for reliable signal transmission

• Fully welded stainless steel housing prevents moisture ingress

• Vacuum resistance down to –1000 mbar

• Suitable for viscous media, liquids with suspended particles, liquids, and gases

• Relative pressure measurement for industrial applications

Applications:

• Pressure monitoring in food and beverage processing

• Hygienic level measurement in tanks and vessels

• Viscous and solid‑containing media (pastas, sauces, dairy products)

• CIP/SIP (Clean‑in‑Place / Sterilize‑in‑Place) processes

• Pharmaceutical and biotechnology applications

• Dairy and beverage production lines

• Hydrostatic level measurement in open tanks

Technical Specifications:

Electrical Data:

Outputs:

Measuring / Setting Ranges:

Accuracy / Deviations:

IO‑Link Communication:

Environmental & Physical:

System Compatibility:

• PLCs via 4–20 mA analog input (2‑wire loop power or 3‑wire)

• IO‑Link masters for advanced parameter setting and diagnostics

• M12 A‑coded connection cables (4‑pin)

• 18–30V DC power supplies

• IFM sanitary fittings and welding adapters

Typical System Architecture:
18–30V DC Power Supply
↓
PM1608 Flush Pressure Transmitter (Flush‑mounted in tank / pipeline)
│
├── 4–20 mA Analog Output → PLC Analog Input (Continuous pressure monitoring)
├── IO‑Link → IO‑Link Master (Parameter setting / Diagnostics / Process data)
│
↓
Ceramic‑Capacitive Measuring Cell (Flush, dead‑space‑free design)
↓
Food / Beverage / Pharmaceutical Process Media (Viscous, solid‑containing, CIP/SIP)

Related Products:

• EVC001 – M12 female cordset, 2m

• EVC002 – M12 female cordset, 5m

• EVC003 – M12 female cordset, 10m

• EVC551 – M12 female cordset, 2m

• Welding adapters – For G1 sealing cone process connection

• Mounting adapters – For flexible sensor positioning

• Calibration certificates – For documented traceability

• PM1707 – Flush pressure sensor, –0.05…1 bar, G1 Aseptoflex Vario

• PM1789 – Flush pressure sensor, –0.0125…0.25 bar, Aseptoflex Vario
