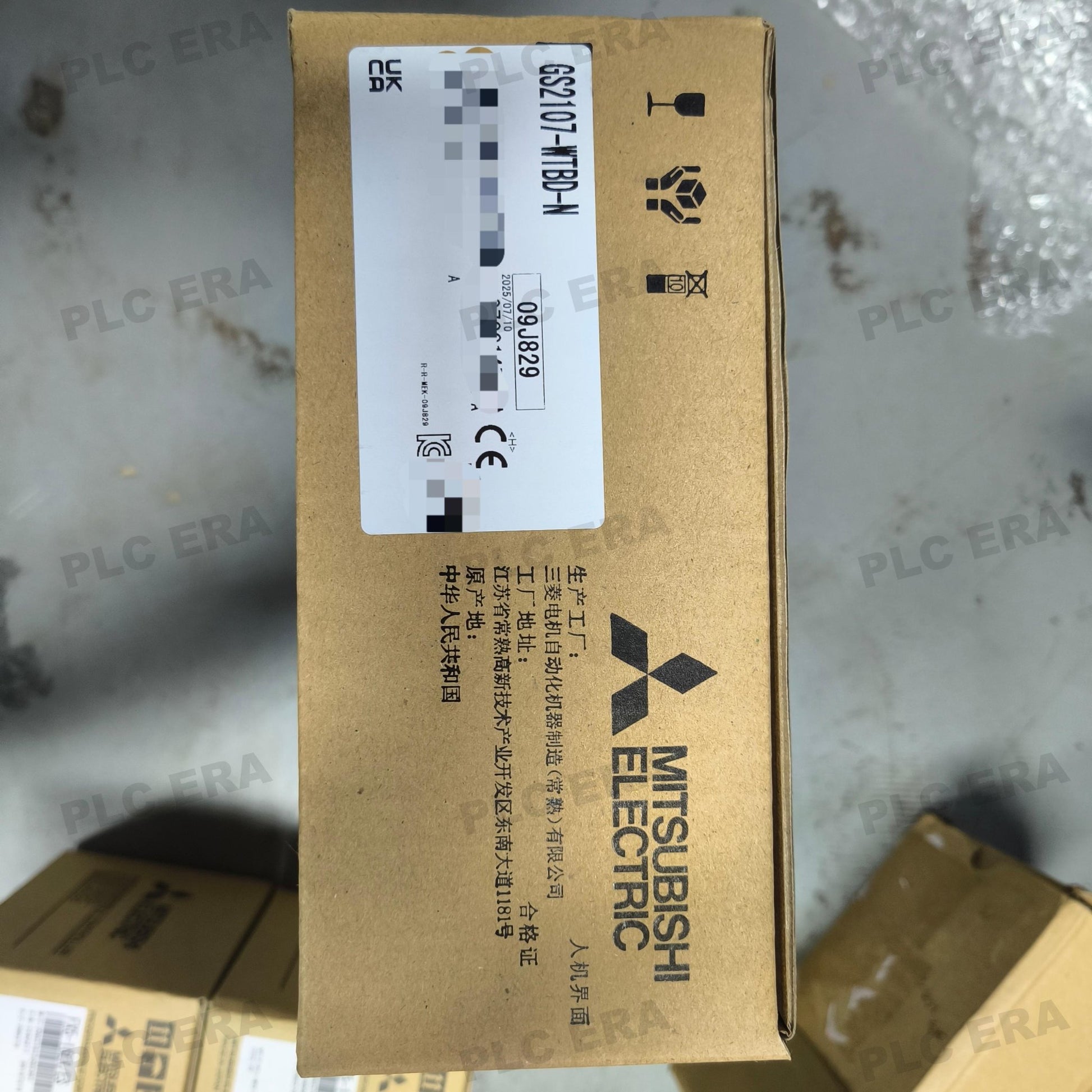

Mitsubishi GS2107‑WTBD‑N GS21 GOT Simple Series 7″ Touch Screen HMI

Mitsubishi Electric GS2107‑WTBD‑N is a cost‑effective graphic operation terminal (GOT) from the GS21 Simple series. It belongs to the GOT2000 family and is designed for small to medium industrial machine automation and OEM control systems. The device provides a 7‑inch widescreen TFT colour display with 800 × 480 WVGA resolution and an analogue resistive touch panel. 15 MB user memory (ROM) and 256 MB operation memory (RAM) support standard HMI applications. Built‑in Ethernet, RS‑232, RS‑422/485, USB device and SD card slot enable flexible connectivity. Front panel IP65F protection, flush mounting, 24 V DC power supply. Configured with GT Designer3 (GT Works3) software. This product is the current model in the GS21 series, replacing the discontinued GS2107‑WTBD.

Applications:

• Small to medium machine HMI and operator interface

• Conveyor control and material handling systems

• Packaging machinery and assembly line monitoring

• OEM equipment requiring Ethernet and serial connectivity

Technical Specifications:

Core Specifications

• Series: GOT2000, GS21 GOT Simple series

• Display size: 7.0″ TFT LCD

• Display resolution: 800 × 480 pixels (WVGA)

• Display area: 154 mm × 85.9 mm (6.06″ × 3.38″)

• Display colours: 65,536 colours (16‑bit)

• Backlight: White LED, 50,000 hours typical, non‑replaceable

• Touch panel: Analogue resistive film, 2 × 2 dots minimum detection, 1 million touches minimum (0.98 N operating force)

• User memory (ROM): 15 MB (Flash memory)

• Operation memory (RAM): 256 MB

• Power supply: 24 V DC (range 20.4 … 28.8 V DC)

• Power consumption: 6.5 W max. (approx. 271 mA at 24 V)

• Enclosure rating: IP65F (front panel only)

• Mounting: Flush panel mount

• Protection class: IP65F dust‑tight and water‑resistant

Physical Specifications

• External dimensions (W × H × D): 206 mm × 155 mm × 50 mm

• Panel cut‑out dimensions (W × H): 191 mm × 137 mm

• Weight: 0.9 kg (excluding fittings)

Communication Interfaces

• Ethernet: 1 channel, 100BASE‑TX / 10BASE‑T, RJ45, AUTO MDI/MDI‑X

• RS‑232: 1 channel, D‑Sub 9‑pin (male), transmission speeds 4800 … 115200 bps

• RS‑422/485: 1 channel, D‑Sub 9‑pin (female), terminating resistor selectable (330 Ω, 110 Ω, OPEN)

• USB (device): 1 channel (rear face), USB Mini‑B, Full‑Speed 12 Mbps

• SD memory card slot: 1 channel, SDHC compliant (max. 32 GB)

Performance Specifications

• Brightness adjustment: 32 levels

• Backlight life: 50,000 hours typical

• Touch panel durability: 1 million touches minimum (operating force 0.98 N)

• Buzzer: Single tone (LONG/SHORT/OFF adjustable)

Environmental Specifications

• Operating temperature: 0 °C … +50 °C

• Storage temperature: –20 °C … +60 °C

• Humidity: 10 % … 90 % RH (non‑condensing)

Software Compatibility

• Configuration software: GT Designer3 (GT Works3) version 1.250L or later

• GOT type setting in GT Designer3: GS2107‑WTBD‑N

Features

• VNC server support for remote monitoring via tablets or PCs

• Trend display and data logging functions

• SD memory card start‑up function

• FA transparent function for direct PLC program editing via GOT

• Supports CC‑Link IE Field Basic network

• Project data write endurance: 100,000 times

System Integration:

• This HMI belongs to the Mitsubishi Electric GOT2000 series, GS21 Simple series.

• Compatible with Mitsubishi Electric PLCs (MELSEC iQ‑R, iQ‑F, Q, L, FX series) and third‑party controllers via Ethernet, RS‑232 or RS‑422/485.

• Supports SDHC memory cards (up to 32 GB) for project data storage, data logging and OS updates.

• Front panel IP65F rating provides dust‑tight and water‑resistant protection for harsh industrial environments.

• Panel cut‑out dimensions 191 × 137 mm, external dimensions 206 × 155 × 50 mm.

Standards & Compliance:
Refer to manufacturer official documentation for certification and compliance details.

Related Products:

• GS2110‑WTBD‑N – 10″ WVGA version, similar specifications

• GT2107‑WTBD – GOT2000 series 7″ model with 9 MB ROM (discontinued)

• NZ1MEM‑4GBSD – SDHC memory card for GOT (4 GB)

• GT25‑VNCSKEY‑1 – VNC server function license
