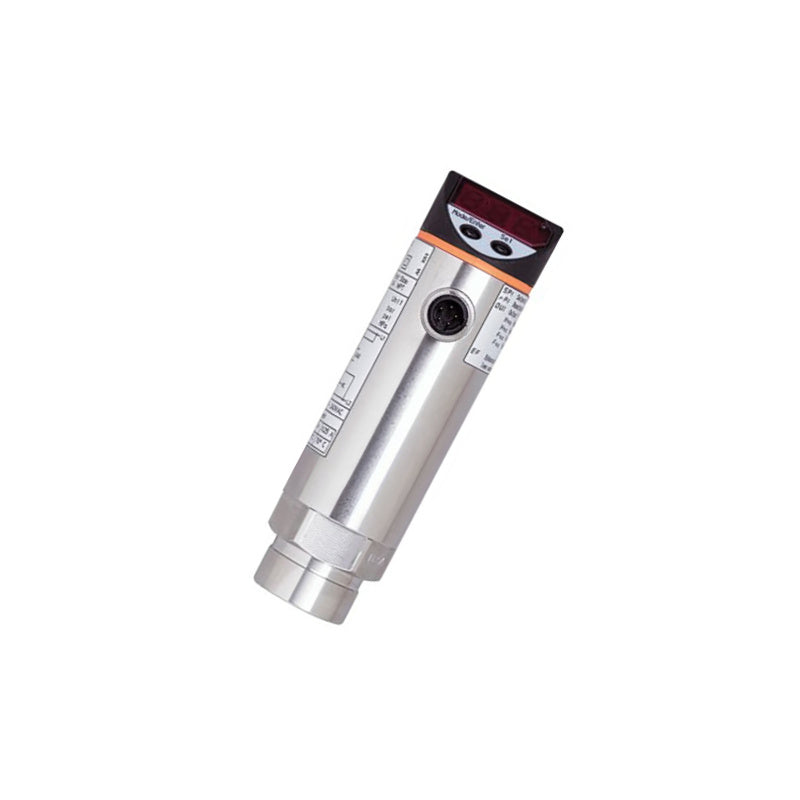

PS3208 Hydrostatic Submersible Pressure Transmitter 0.25 bar 4‑20mA | IFM

The Original New IFM PS3208 Hydrostatic Submersible Pressure Transmitter is a low‑cost, simple level measurement solution for liquids in tanks, wells, reservoirs, and open channels. Designed for hydrostatic level measurement, this submersible pressure transmitter features an internally vented cable for atmospheric pressure compensation, ensuring accurate readings regardless of ambient pressure fluctuations. The robust stainless steel housing (316Ti/1.4571) with IP68 protection provides high ingress resistance for reliable operation in demanding industrial and environmental applications. The 5m PUR cable with internal vent tube simplifies installation and reduces wiring complexity when operated as a two‑wire 4‑20 mA current loop.

Core Engineering Highlights:
0–0.25 bar / 0–250 mbar measuring range | 4‑20 mA analog output | Two‑wire current loop operation | Internally vented cable for pressure compensation | ±0.5% characteristics deviation (BFSL) | <0.1% repeatability | <0.2% long‑term stability per year | IP68 protection | Stainless steel 316Ti/1.4571 housing | 5m PUR cable | 10–30V DC operating voltage | 700Ω max load @ 24V | –10°C to +50°C medium temperature | 553.6g weight

Key Features:

• Original New IFM PS3208 submersible pressure transmitter

• Low-cost, simple hydrostatic level measurement for liquids

• Pressure compensation via internally vented cable (capillary tube)

• Two‑wire 4‑20 mA current loop operation reduces wiring complexity

• High overall accuracy and long‑term stability for reliable level monitoring

• Robust stainless steel housing (316Ti/1.4571) with high ingress resistance

• Relative pressure measurement for industrial applications

• Short‑circuit protection and reverse polarity protection

• Suitable for group 2 fluids (group 1 fluids on request)

• IP68 protection for permanent immersion applications

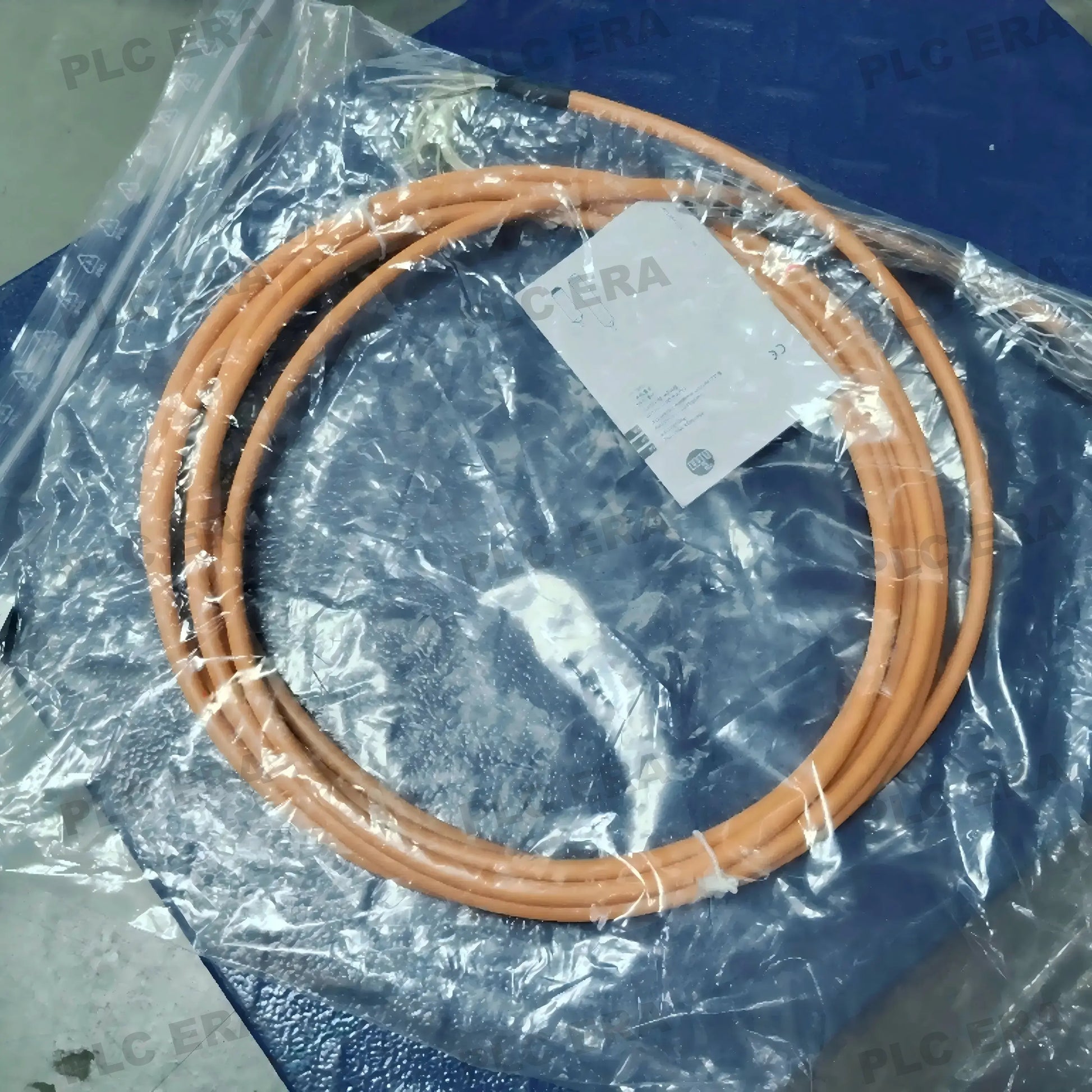

• 5m PUR cable with internal vent tube for pressure compensation

• MTTF: 403 years

Applications:

• Hydrostatic level measurement in tanks, reservoirs, and wells

• Open channel level monitoring for water and wastewater treatment

• Groundwater and borehole level monitoring

• Pump station level control and protection

• Industrial liquid level measurement for group 2 fluids

• Simple, cost‑effective level measurement in industrial and environmental applications

Technical Specifications:

Electrical Data:

Accuracy / Deviations:

Environmental & Physical:

System Compatibility:

• PLCs and controllers via 4‑20 mA analog input (two‑wire loop power)

• SCADA and process control systems

• Level monitoring and control instrumentation

• 10–30V DC power supplies (loop powered)

• M12 connectors and extension cables (accessories available)

Typical System Architecture:
10–30V DC Power Supply (Loop Power)
↓
PS3208 Submersible Pressure Transmitter (Submerged in liquid)
│
├── 4–20 mA Analog Output → PLC Analog Input Module
├── Internally Vented Cable → Atmospheric Pressure Compensation
│
↓
Level Measurement / Monitoring System
↓
Tank / Reservoir / Well / Open Channel

Related Products:

• Calibration certificates – For documented traceability

• Test reports / declarations of compliance – For regulatory requirements

• Mounting accessories for submersible pressure transmitters – For secure installation

• EVC001 – M12 female cordset, 2m (for extension)

• EVC002 – M12 female cordset, 5m (for extension)
