Schneider ATV320D11N4B 11kW 15hp 380-500V 3-Phase Book Drive VFD

Overview

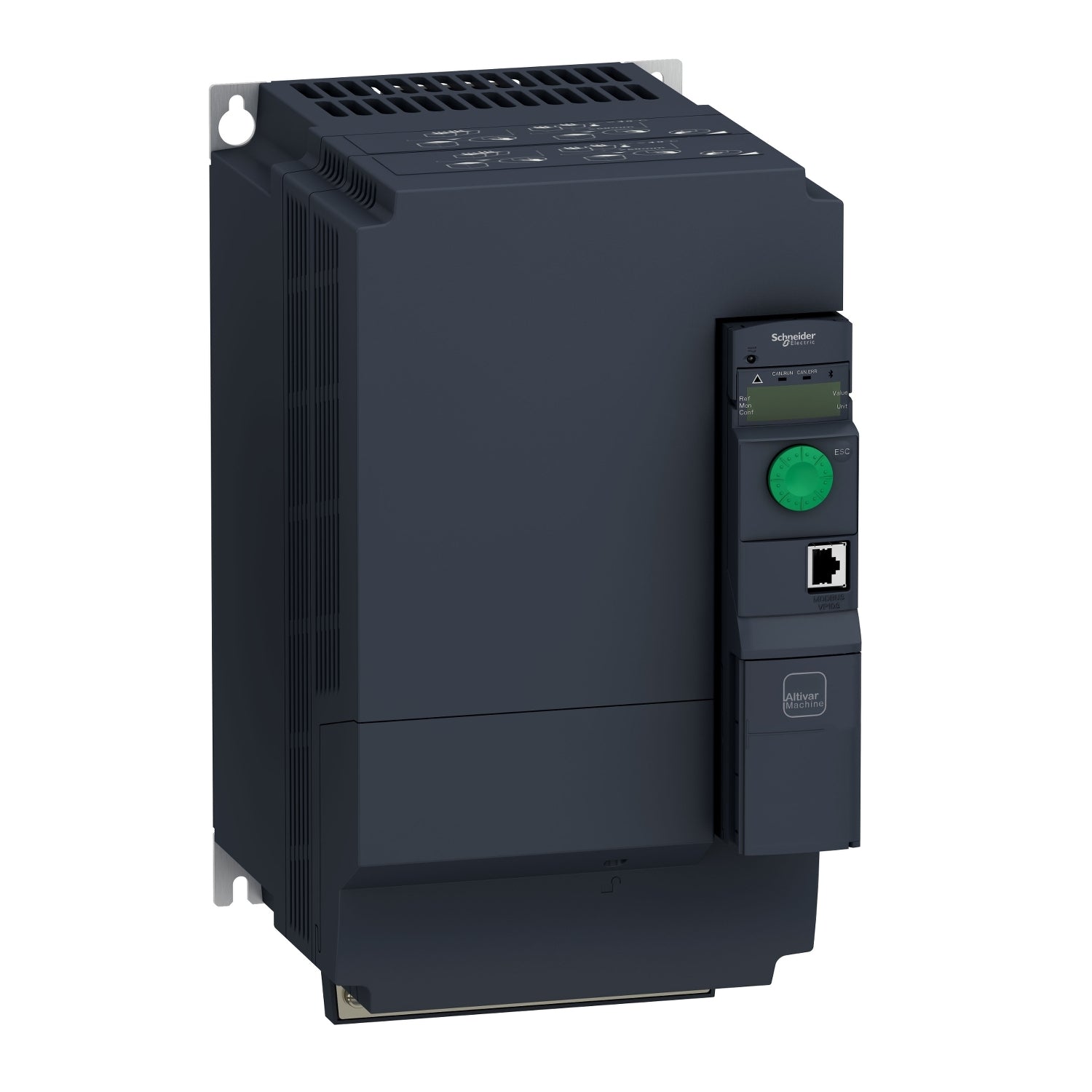

The Schneider Electric ATV320D11N4B is a high‑performance variable speed drive from the Altivar Machine ATV320 series, designed for both asynchronous and synchronous motors. With a rated power of 11 kW (15 hp) and a supply voltage range of 380 V to 500 V AC (three‑phase), this compact Book‑style drive delivers reliable motor control for demanding OEM and industrial automation applications.

The slim 180 mm width design allows for efficient side‑by‑side mounting in space‑constrained control cabinets, optimizing panel layout without sacrificing performance. The robust design features IEC 60721‑3‑3 class 3C3 coated printed circuit boards, allowing extended machine availability in harsh environmental conditions with ambient temperatures of up to 60 °C without additional cooling. It incorporates flux vector control without sensor, delivering torque and speed accuracy at very low speed, high dynamic performance, and energy saving for open‑loop synchronous motors. The drive is fully integrated into Schneider Electric‘s EcoStruxure Machine ecosystem and can be configured, controlled, and diagnosed via SoMachine and SoMove software.

Key Features

• Original brand new, within warranty period – Factory‑sealed, genuine Schneider Electric component with full manufacturer warranty.

• 100% Satisfaction Guarantee – Risk‑free purchase; if you are not completely satisfied, we will replace or refund.

• 11kW (15hp) rated power output – Delivers 11 kW / 15 hp for heavy duty applications with a nominal output current of 27.7 A, providing robust power delivery for demanding industrial motors.

• Ultra‑slim Book form factor for space‑saving installation – Only 180 mm width allows efficient side‑by‑side mounting in tight control cabinets, dramatically reducing panel footprint and simplifying cabinet layout.

• High temperature resistance – Operates from -10 °C to 50 °C without derating, and up to 60 °C with derating factor, eliminating the need for additional cooling in high‑temperature environments.

• Integrated safety functions – Drive software includes 5 safety functions (configurable via SoMove software) that help machines meet safety requirements, with integrated Safe Torque Off (STO) functionality.

• Robust environmental protection – IEC 60721‑3‑3 class 3C3 coated printed circuit boards with IP20 protection rating, designed for harsh industrial conditions with extended machine availability.

• Multiple communication protocols – Built‑in Modbus and CANopen communication protocols, with optional support for EtherNet/IP, EtherCAT, Profibus DP V1, PROFINET, DeviceNet, and Ethernet Powerlink, enhancing connectivity within control systems.

• Versatile I/O configuration – 6 discrete inputs, 3 analog inputs, 1 analog output, and 1 digital output, offering flexible control for diverse applications.

• Integrated EMC filter and braking chopper – Built‑in Class C3 EMC filter for electromagnetic compatibility compliance, plus an integrated braking chopper for energy efficiency during deceleration.

• High reliability with wide international certifications – Certified to CE, UL, CSA, TUV, KC, RCM, EAC, and ATEX standards, suitable for global deployment including hazardous area installations.

Technical Specifications

Applications

• Original Equipment Manufacturer (OEM) machinery requiring advanced motor control in space‑constrained panels.

• Packaging machinery, material handling systems, textile equipment, mechanical actuators, and hoisting applications.

• Ventilation, pumping, and fluid handling applications with up to 30% energy savings.

• Industrial automation systems requiring Book‑style side‑by‑side drive mounting.

• Harsh environment applications requiring coated PCB protection (class 3C3) and extended temperature operation.

• Systems requiring integrated safety functions (STO) and multiple communication protocols.

• ATEX hazardous area applications requiring international safety certifications.

Package Includes

• 1 × Schneider Electric ATV320D11N4B variable speed drive

• Removable screw terminal blocks for power and control connections

• Quick start guide

• Mounting accessories
