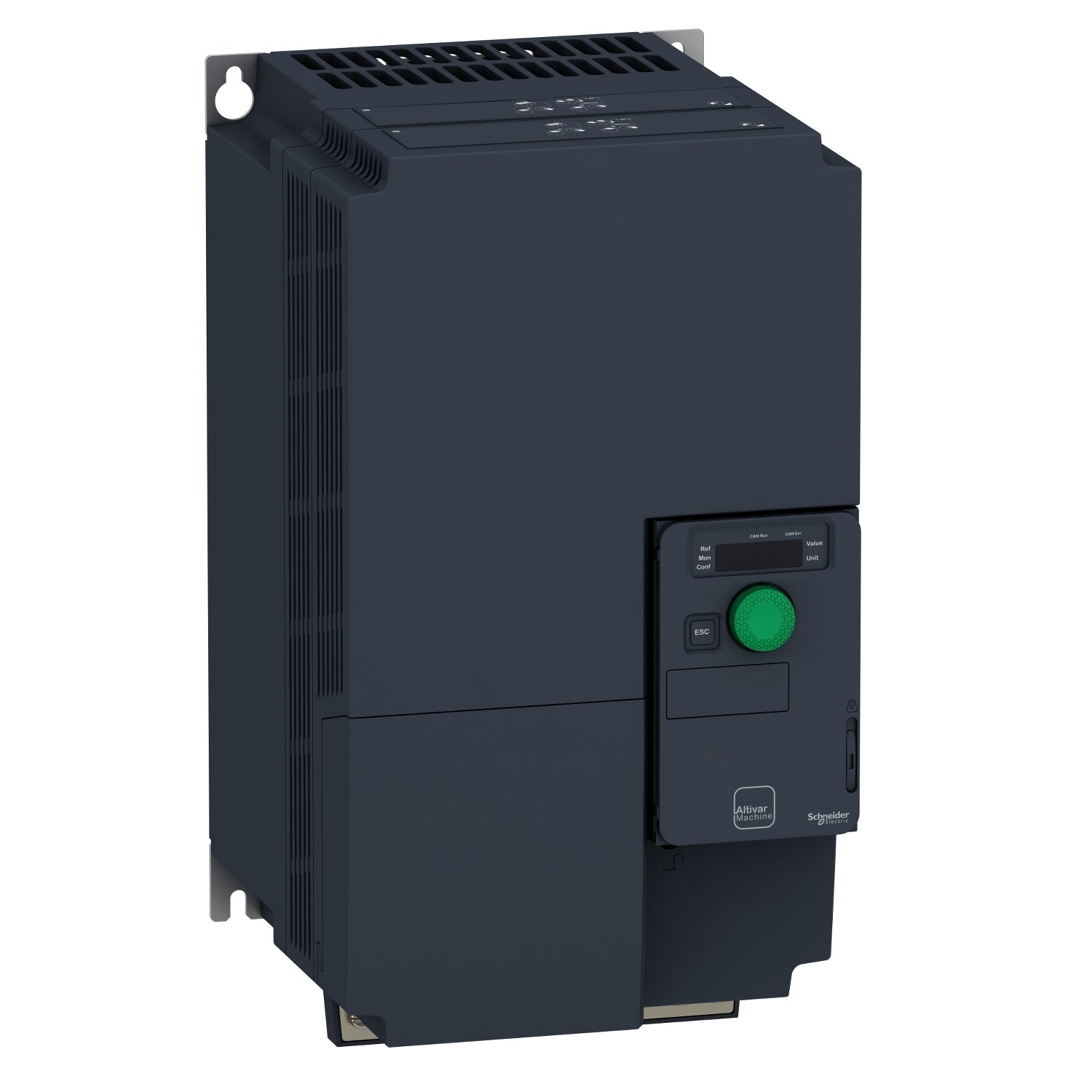

ATV320D11N4C Altivar Machine ATV320 11kW Compact AC Drive 380‑500V | Schneider Electric

The Original New Schneider Electric ATV320D11N4C is an 11 kW (15 HP) variable speed drive from the Altivar Machine ATV320 series, designed for three‑phase synchronous and asynchronous motors in complex machine applications. Its compact form factor allows vertical stacking of drives inside machine frames, saving valuable control cabinet space. Designed for Original Equipment Manufacturers (OEMs), it meets simple and advanced application requirements for packaging, material handling, textile, material working, mechanical actuators and hoisting. Robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards extends machine availability in harsh environmental conditions, with ambient temperatures up to 60°C without additional cooling. Fully integrated with Schneider Electric's EcoStruxure Machine ecosystem via DTM for seamless configuration in SoMove and SoMachine software.

Core Engineering Highlights:
11 kW (15 HP) heavy duty | 27.7 A output current | 380‑500 V AC, 3‑phase input | Compact format (180 × 330 × 198 mm) | Integrated Class C3 EMC filter | 5 integrated safety functions (STO, SS1, SLS, SMS, GDL) | Modbus + CANopen built‑in | IP20 protection | 0.1‑599 Hz output frequency | 7 DI / 3 DO / 3 AI / 1 AO | Flux vector control without sensor | 6.8 kg weight | 0‑599 Hz output frequency

Key Features:

• Original New Schneider Electric ATV320D11N4C drive

• 11 kW (15 HP) heavy duty motor power with 27.7 A nominal output current

• 380‑500 V AC, 3‑phase input (–15% / +10%)

• Compact form factor (180 mm width) for space‑optimized wall mounting

• Integrated Class C3 EMC filter for reduced electromagnetic emissions

• 5 integrated safety functions: STO (Safe Torque Off), SS1 (Safe Stop 1), SLS (Safe Limited Speed), SMS (Safe Maximum Speed), GDL (Guard Door Locking)

• Built‑in Modbus serial and CANopen communication protocols

• Support for optional communication modules: PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet, CANopen, Ethernet Powerlink

• 7 discrete inputs (24 V DC, sink/source configurable) including STO input

• 3 discrete outputs (open collector, 30 V DC, 100 mA)

• 3 analog inputs (voltage: 0-10 V, ±10 V; current: 0-20 mA, 4-20 mA)

• 1 configurable analog output (0-20 mA or 0-10 V)

• Configurable relay outputs (R1A, R1B, R1C, R2A, R2C)

• Flux vector control without sensor for high dynamic performance at very low speeds

• Extended frequency range up to 599 Hz for high‑speed motors

• Coated printed circuit boards (IEC 60721-3-3 class 3C3) for harsh environments up to 60°C

• IP20 protection for indoor control cabinet installation

• Wall mounting with vertical orientation (±10°)

• 4‑quadrant operation capability

• Parallel connection of motors and special drives using voltage/frequency ratio

• Static speed accuracy and energy saving for open‑loop synchronous motors

• 170‑200% transient overtorque capability

• Adjustable switching frequency: 2‑16 kHz (4‑16 kHz with derating)

• Conforms to IEC/EN 61800-5-1 and IEC/EN 61800-3 standards

• CE, UL, CSA, NOM, EAC, RCM certified

Applications:

• Conveyor speed control and material handling systems

• Packaging machinery and OEM equipment

• Textile and woodworking machinery

• Material working and mechanical actuators

• Hoisting applications

• Fan and pump applications

• Gantry cranes and carton packers

• Complex machine applications

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M221, M241, M251, M340 controllers via Modbus or CANopen

• EcoStruxure Machine Expert (SoMachine) and SoMove software via DTM

• Optional communication modules for PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet

• Preventa safety modules for extended safety functionality

• External braking resistors, line chokes, motor chokes, additional EMC filters (depending on drive rating)

Related Products:

• ATV320U75N4C – 7.5 kW compact version (lower power)

• ATV320D11N4C – 11 kW compact version (current model)

• ATV320D15N4C – 15 kW compact version (higher power)

• VW3A3608 – CANopen communication module

• VW3A3627 – PROFINET communication module

• VW3A3621 – PROFIBUS DP V1 communication module

• VW3A9533 – EMC conformity kit
