ATV320D15N4B Altivar Machine ATV320 15kW Book AC Drive 380‑500V | Schneider Electric

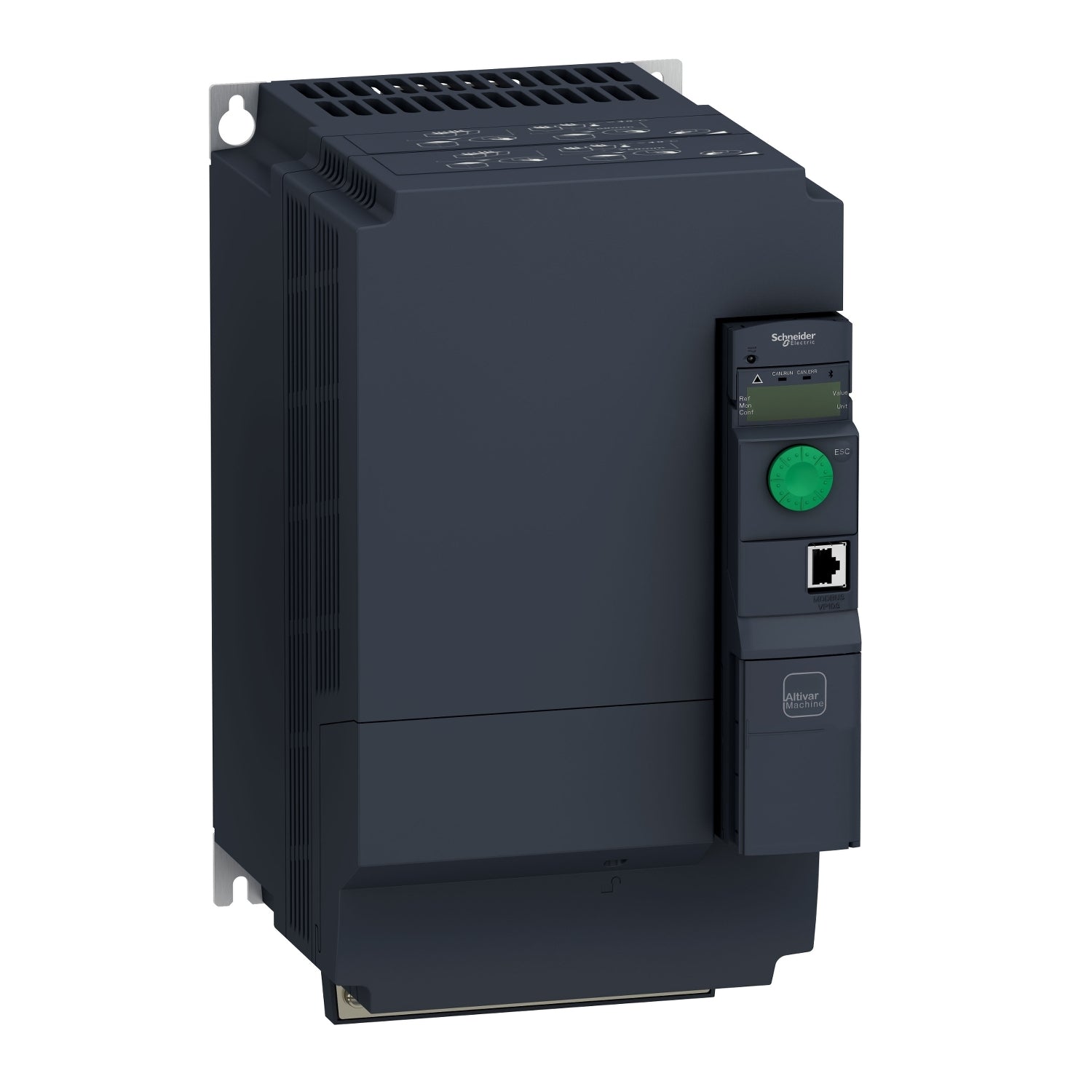

The Original New Schneider Electric ATV320D15N4B is a 15 kW (20 HP) variable speed drive from the Altivar Machine ATV320 series, designed for three‑phase synchronous and asynchronous motors. Its book form factor enables space‑optimized vertical stacking in automation cabinets, reducing panel footprint while delivering high power density for demanding OEM and industrial automation applications. Integrated EMC filter, robust design, and comprehensive safety functions make this drive suitable for packaging, material handling, textile, hoisting, conveying, and mechanical actuator applications. Fully integrated with Schneider Electric's EcoStruxure Machine ecosystem via DTM for seamless configuration in SoMove and SoMachine software.

Core Engineering Highlights:
15 kW (20 HP) heavy duty| 33 A output current| 380‑500 V AC, 3‑phase input| Book format (180 × 404 × 232 mm)| Integrated Class C3 EMC filter| 5 integrated safety functions (STO, SS1, SLS, SMS, GDL) | Modbus + CANopen built‑in| IP20 protection| 0.1‑599 Hz output frequency| 8.8 kg weight| Frame size 5B

Key Features:

• Original New Schneider Electric ATV320D15N4B drive

• 15 kW (20 HP) heavy duty motor power with 33 A nominal output current

• Book form factor for space‑optimized vertical stacking in automation cabinets

• Integrated Class C3 EMC filter for reduced electromagnetic emissions

• 5 integrated safety functions: STO (Safe Torque Off), SS1 (Safe Stop 1), SLS (Safe Limited Speed), SMS (Safe Maximum Speed), GDL (Guard Door Locking)

• Built‑in Modbus serial and CANopen communication protocols

• Support for optional communication modules: PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet

• 9 digital inputs, 4 digital outputs, 3 analog inputs, 1 analog output

• Flux vector control without sensor for high dynamic performance at very low speeds

• Extended frequency range up to 599 Hz for high‑speed motor applications

• Integrated braking chopper for dynamic braking applications

• IP20 protection for indoor control cabinet installation

• Wall mounting with vertical orientation (±10°)

• Controls asynchronous and synchronous motors

• 150% starting torque at 0.1 Hz for demanding low‑speed applications

• 0‑10V, 4‑20mA, 0‑20mA analog input capability

• Keypad and PC programming methods

• CE, UL, CSA, NOM, EAC, RCM certified

• Conforms to IEC/EN 61800-5-1 and IEC/EN 61800-3 standards

• DIN rail or wall mounting options

• Screw terminal connections

• 4 kHz nominal switching frequency

Applications:

• Conveyor speed control and material handling systems

• Packaging machinery and OEM equipment

• Textile and woodworking machinery

• Hoisting and mechanical actuators

• Material working and processing equipment

• Fan and pump applications

• Gantry cranes and carton packers

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M221, M241, M251, M340 controllers via Modbus or CANopen

• EcoStruxure Machine Expert (SoMachine) and SoMove software via DTM

• Optional communication modules for PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet

• Preventa safety modules for extended safety functionality

Related Products:

• ATV320U75N4B – 7.5 kW book version (lower power)

• ATV320D11N4B – 11 kW book version (lower power, same frame)

• ATV320D15N4B – 15 kW book version (current model)

• ATV320D18N4B – 18.5 kW book version (higher power, same frame)

• VW3A3608 – CANopen communication module

• VW3A3627 – PROFINET communication module

• VW3A3621 – PROFIBUS DP V1 communication module

• VW3A9533 – EMC conformity kit

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Altivar, and EcoStruxure are trademarks of Schneider Electric SE.
