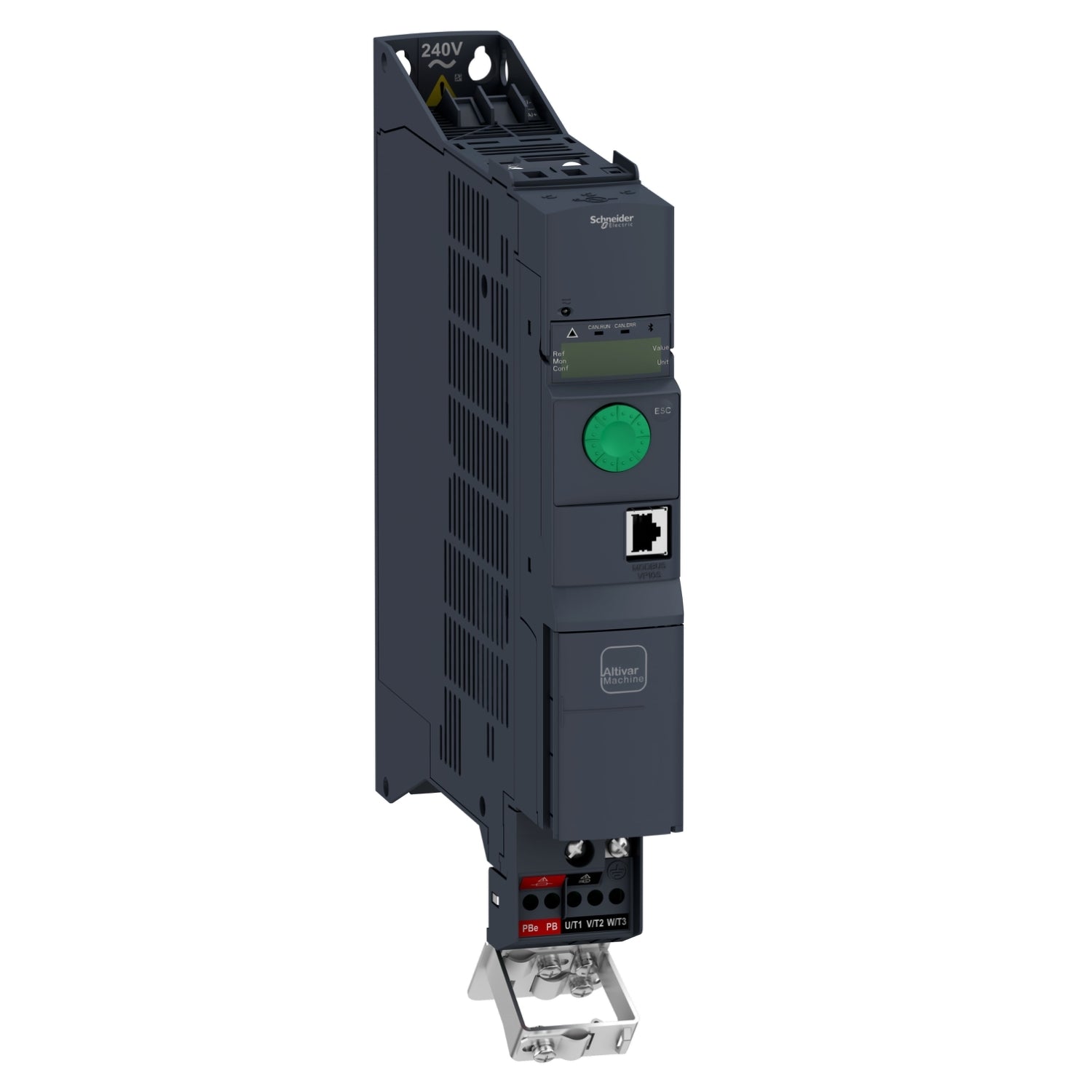

ATV320U04N4B Altivar Machine ATV320 0.37kW Book AC Drive 380‑500V | Schneider Electric

The Original New Schneider Electric ATV320U04N4B is a 0.37 kW (0.5 HP) variable speed drive from the Altivar Machine ATV320 series, designed for three‑phase synchronous and asynchronous motors. Its book form factor enables space‑optimized vertical stacking in automation cabinets, reducing panel footprint while delivering reliable motor control for compact OEM and industrial automation applications. Featuring coated printed circuit boards (IEC 60721-3-3 class 3C3), it extends machine availability in harsh environments up to 60°C without additional cooling. Designed for Original Equipment Manufacturers (OEMs), it meets simple and advanced application requirements for packaging, material handling, textile, material working, mechanical actuators and hoisting. Fully integrated with Schneider Electric's EcoStruxure Machine ecosystem via DTM for seamless configuration in SoMove and SoMachine software.

Core Engineering Highlights:
0.37 kW (0.5 HP) heavy duty | 1.5 A output current | 380‑500 V AC, 3‑phase input | Book format (325 × 45 × 245 mm) | 5 integrated safety functions (STO, SS1, SLS, SMS, GDL) | Modbus + CANopen built‑in | IP20 protection | 0.1‑599 Hz output frequency | Coated PCBs for harsh environments up to 60°C

Key Features:

• Original New Schneider Electric ATV320U04N4B drive

• 0.37 kW (0.5 HP) heavy duty motor power with 1.5 A nominal output current

• Book form factor for space‑optimized vertical stacking in automation cabinets

• 5 integrated safety functions: STO (Safe Torque Off), SS1 (Safe Stop 1), SLS (Safe Limited Speed), SMS (Safe Maximum Speed), GDL (Guard Door Locking)

• Built‑in Modbus serial and CANopen communication protocols

• Support for optional communication modules: PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet

• 6 discrete inputs, 1 discrete output, 3 analog inputs, 1 analog output

• Flux vector control without sensor for high dynamic performance and speed accuracy at very low speeds

• Extended frequency range up to 599 Hz for high‑speed motors

• Coated printed circuit boards (IEC 60721-3-3 class 3C3) for harsh environments up to 60°C

• IP20 protection for indoor control cabinet installation

• Wall mounting with vertical orientation (±10°)

• Parallel connection of motors and special drives using voltage/frequency ratio

• Static speed accuracy and energy saving for open‑loop synchronous motors

• 4‑quadrant operation capability

• CE, UL, CSA, NOM, EAC, RCM certified

• Conforms to IEC/EN 61800-5-1 and IEC/EN 61800-3 standards

Applications:

• Conveyor speed control and material handling systems

• Packaging machinery and OEM equipment

• Textile and woodworking machinery

• Mechanical actuators and hoisting applications

• Material working and processing equipment

• Fan and pump applications

• Compact machine automation requiring space‑saving installation

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M221, M241, M251, M340 controllers via Modbus or CANopen

• EcoStruxure Machine Expert (SoMachine) and SoMove software via DTM

• Optional communication modules for PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet

• Preventa safety modules for extended safety functionality

Related Products:

• ATV320U04N4B – 0.37 kW book version (current model)

• ATV320U07N4B – 0.75 kW book version (higher power)

• ATV320U11N4B – 1.1 kW book version (higher power)

• VW3A3608 – CANopen communication module

• VW3A3627 – PROFINET communication module

• VW3A3621 – PROFIBUS DP V1 communication module

• VW3A9533 – EMC conformity kit
