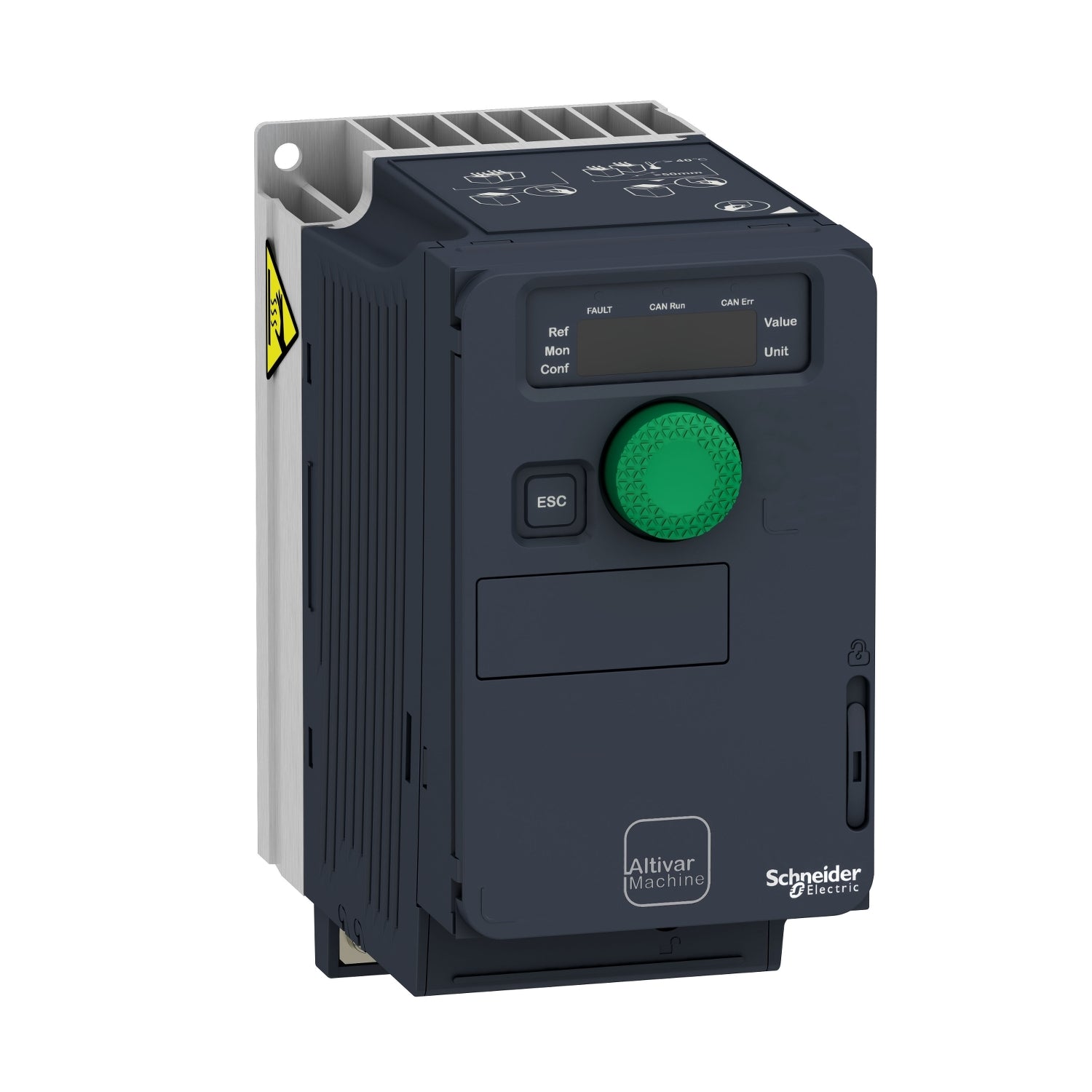

ATV320U07M2C Altivar Machine ATV320 0.75kW Compact AC Drive 200‑240V 1‑Phase | Schneider Electric

The Original New Schneider Electric ATV320U07M2C is a 0.75 kW (1 HP) variable speed drive from the Altivar Machine ATV320 series, designed for single‑phase synchronous and asynchronous motors. Its compact form factor allows vertical stacking of drives inside machine frames, saving valuable control cabinet space. Integrated Class C2 EMC filter, robust design, and comprehensive safety functions (STO, SS1, SLS, SMS, GDL) make this drive suitable for demanding OEM and industrial automation applications including packaging, material handling, textile, conveying systems, and single‑phase machine retrofits. Fully compatible with Schneider Electric's EcoStruxure Machine ecosystem via DTM for seamless configuration in SoMove and SoMachine software.

Core Engineering Highlights:
0.75 kW (1 HP) heavy duty | 4.8 A output current | 200‑240 V AC, 1‑phase input | Compact format (143 × 72 × 138 mm) | Integrated Class C2 EMC filter | Safe Torque Off (STO), SS1, SLS, SMS, GDL | Modbus + CANopen built‑in | IP20 protection | 0.1‑599 Hz output frequency | 7 DI / 3 DO / 3 AI / 1 AO | 7.2 kVA apparent power | Up to 30% energy savings

Key Features:

• Original New Schneider Electric ATV320U07M2C drive

• 0.75 kW (1 HP) heavy duty motor power with 4.8 A nominal output current

• 200‑240 V AC single‑phase input (170‑264 V AC range)

• Compact form factor (72 mm width) for space‑optimized wall mounting

• Integrated Class C2 EMC filter for reduced electromagnetic emissions

• 5 integrated safety functions: STO (Safe Torque Off), SS1 (Safe Stop 1), SLS (Safe Limited Speed), SMS (Safe Maximum Speed), GDL (Guard Door Locking)

• Built‑in Modbus serial and CANopen communication protocols

• Support for optional communication modules: PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet

• 7 discrete inputs (24 V DC, sink/source configurable)

• 3 discrete outputs (open collector)

• 3 analog inputs (voltage, bipolar differential voltage, current)

• 1 configurable analog output (current or voltage)

• Configurable relay outputs (R1A, R1B, R1C, R2A, R2C)

• Sensorless flux vector control for high dynamic performance and speed accuracy at very low speeds

• Extended frequency range up to 599 Hz for high‑speed motor applications

• Natural convection cooling (fanless)

• IP20 protection for indoor control cabinet installation

• Wall mounting with vertical orientation (±10°)

• Integrated braking chopper for dynamic braking applications

• 150% starting torque at 0.1 Hz for demanding low‑speed applications

• Controls asynchronous and synchronous motors, including IE2, IE3, and PM motors

• Optimized for ventilation and pumping applications: up to 30% energy savings

• 4‑quadrant operation capability

• CE, UL, CSA, NOM, EAC, RCM certified

Applications:

• Small conveyor speed control and material handling systems

• Pump and fan regulation with energy savings up to 30%

• Packaging machinery and OEM equipment

• Textile and woodworking machinery

• Single‑phase machine retrofits requiring 200‑240 V input

• Mechanical actuators and conveying applications

• Material working and processing equipment

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M221, M241, M251, M340 controllers via Modbus or CANopen

• EcoStruxure Machine Expert (SoMachine) and SoMove software via DTM

• Optional communication modules for PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet

• Preventa safety modules for extended safety functionality

Related Products:

• ATV320U04M2C – 0.37 kW compact version (lower power)

• ATV320U07M2C – 0.75 kW compact version (current model)

• ATV320U15M2C – 1.5 kW compact version (higher power)

• VW3A3608 – CANopen communication module

• VW3A3627 – PROFINET communication module

• VW3A3621 – PROFIBUS DP V1 communication module

• VW3A9533 – EMC conformity kit
