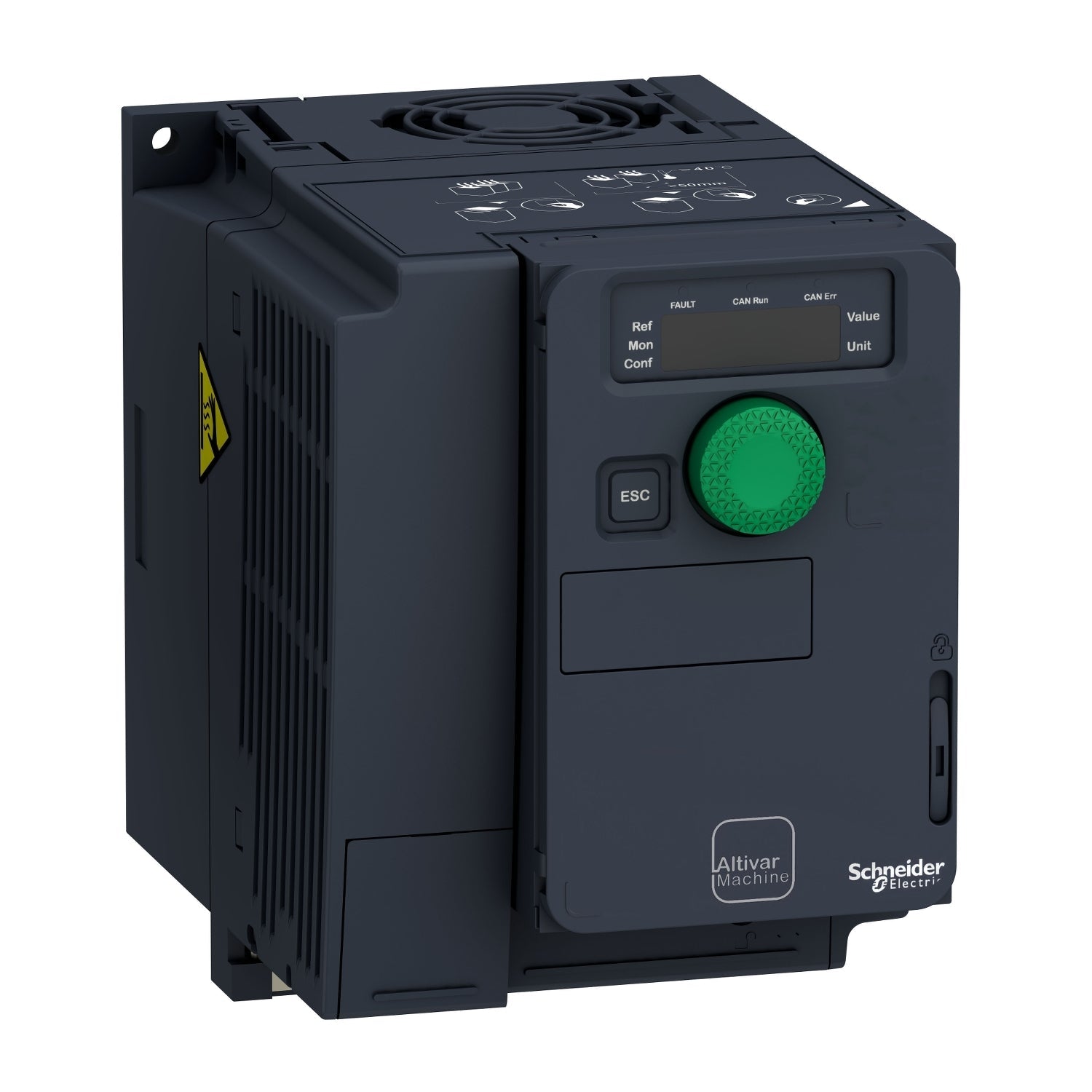

ATV320U07N4C Altivar Machine ATV320 0.75kW Compact AC Drive 380‑500V | Schneider Electric

The Original New Schneider Electric ATV320U07N4C is a 0.75 kW (1 HP) variable speed drive from the Altivar Machine ATV320 series, designed for three-phase synchronous and asynchronous motors. Its compact form factor allows vertical stacking of drives inside machine frames, saving valuable control cabinet space. Integrated Class C2 EMC filter, robust coated PCBs (IEC 60721-3-3 class 3C3), and comprehensive safety functions make this drive suitable for demanding OEM and industrial automation applications including packaging, material handling, textile, conveying, and mechanical actuators. Fully integrated with Schneider Electric's EcoStruxure Machine ecosystem via DTM for seamless configuration in SoMove and SoMachine software.

Core Engineering Highlights:
0.75 kW (1 HP) heavy duty | 2.3 A output current | 380‑500 V AC, 3‑phase input (±10-15%) | Compact format (72 × 143 × 136 mm) | Integrated Class C2 EMC filter | Safe Torque Off (STO) and Safe Stop 1 (SS1) | Modbus + CANopen built‑in | IP20 protection | 0.1‑599 Hz output frequency | 7 DI / 3 DO / 3 AI / 1 AO | Extended temperature range up to 60°C without additional cooling

Key Features:

• Original New Schneider Electric ATV320U07N4C drive

• 0.75 kW (1 HP) heavy duty motor power with 2.3 A nominal output current

• Compact form factor for space‑optimized wall mounting

• Integrated Class C2 EMC filter for reduced electromagnetic emissions

• 2 integrated safety functions: STO (Safe Torque Off) and SS1 (Safe Stop 1)

• Built‑in Modbus serial and CANopen communication protocols

• Support for optional communication modules: PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet

• 7 discrete inputs, 3 discrete outputs, 3 analog inputs, 1 analog output

• Flux vector control without sensor for high dynamic performance and speed accuracy at very low speeds

• Extended frequency range up to 599 Hz for high‑speed motor applications

• Coated printed circuit boards (IEC 60721-3-3 class 3C3) for operation in harsh environments up to 60°C

• IP20 protection for indoor control cabinet installation

• Wall mounting with vertical orientation (±10°)

• Integrated braking chopper for dynamic braking applications

• Controls asynchronous and synchronous motors, including IE2, IE3, and PM motors

• Optimized for ventilation and pumping applications: up to 30% energy savings

• Parallel connection of motors and special drives using voltage/frequency ratio

• Static speed accuracy and energy saving for open‑loop synchronous motors

• CE, UL, CSA, NOM, EAC, RCM certified

Applications:

• Conveyor speed control and material handling systems

• Pump and fan regulation with energy savings up to 30%

• Packaging machinery and OEM equipment

• Textile and woodworking machinery

• Mechanical actuators and conveying applications

• Material working and processing equipment

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M221, M241, M251, M340 controllers via Modbus or CANopen

• EcoStruxure Machine Expert (SoMachine) and SoMove software via DTM

• Optional communication modules for PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet

• Preventa safety modules for extended safety functionality

Related Products:

• ATV320U04N4C – 0.37 kW compact version (lower power)

• ATV320U11N4C – 1.1 kW compact version (higher power)

• ATV320U15N4C – 1.5 kW compact version (higher power)

• VW3A3608 – CANopen communication module

• VW3A3627 – PROFINET communication module

• VW3A3621 – PROFIBUS DP V1 communication module

• VW3A9533 – EMC conformity kit
