ATV320U11N4B Altivar Machine 1.1kW Book AC Drive 380-500V | Schneider Electric

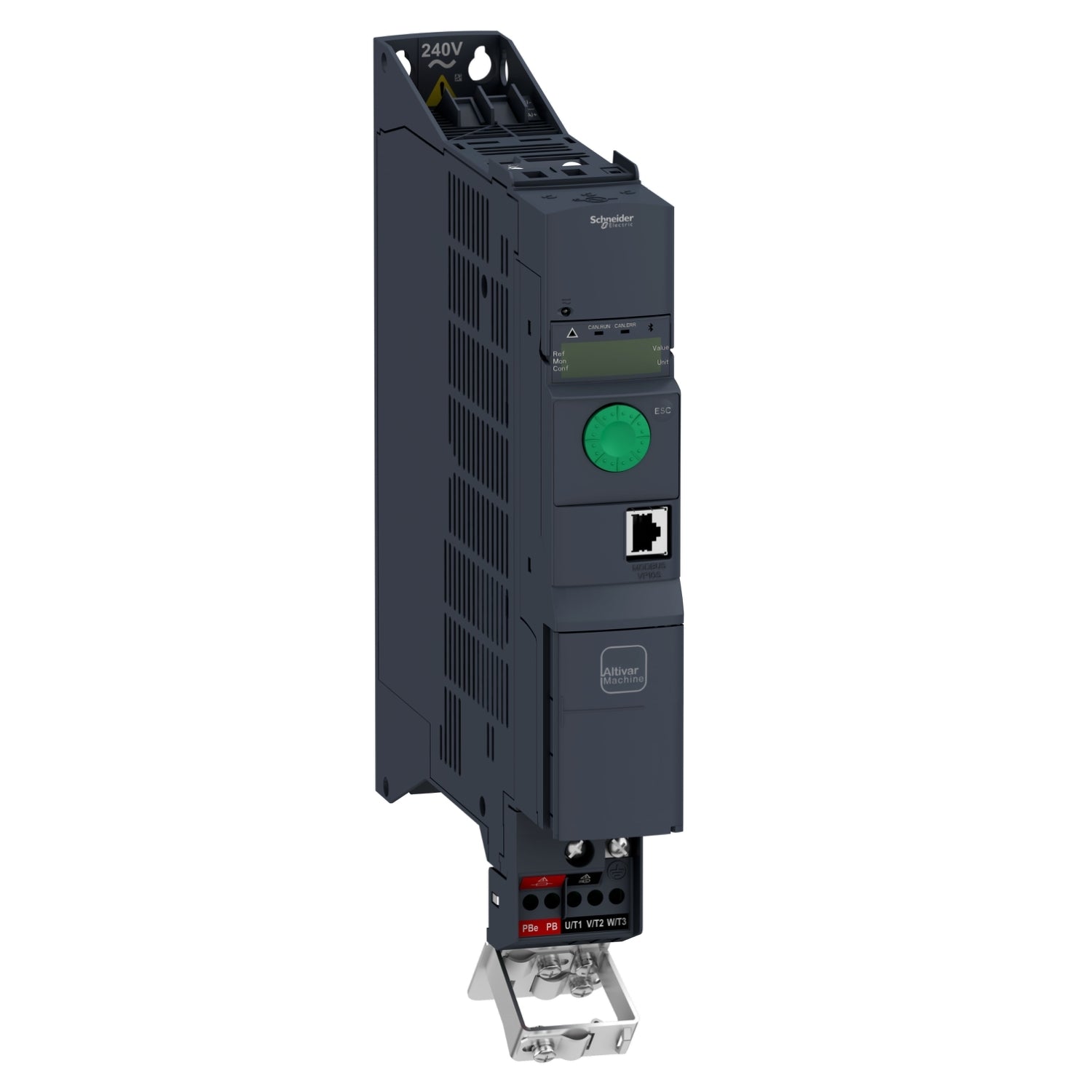

The Original New Schneider Electric ATV320U11N4B Altivar Machine ATV320 is a compact variable speed drive for three‑phase synchronous and asynchronous motors. Rated power 1.1 kW (1.5 HP) at 380‑500 V, 3‑phase. Book form factor for space‑optimized vertical stacking in control cabinets. Features integrated Class C2 EMC filter, embedded Modbus and CANopen communication, and advanced safety functions including STO (Safe Torque Off). Its robust design with IEC 60721‑3‑3 class 3C3 coated printed circuit boards extends machine availability in harsh environmental conditions. Designed for simple to advanced machine requirements in packaging, material handling, textile, and OEM applications.

Core Engineering Highlights:
1.1 kW (1.5 HP) heavy duty output | 3.0 A nominal output current | 380‑500 V 3‑phase input (±10%) | Book form factor (45 mm width) | Integrated Class C2 EMC filter | STO (Safe Torque Off) safety function | 7 discrete inputs / 3 discrete outputs / 3 analog inputs / 1 analog output | Modbus + CANopen built‑in | IP20 protection | –10°C to +60°C operating temperature | 4‑quadrant operation

Key Features:

• Original New Schneider Electric ATV320U11N4B drive

• Book form factor for space‑optimized vertical stacking in control cabinets

• Integrated Class C2 EMC filter for reduced electromagnetic emissions

• Built‑in Modbus serial and CANopen communication protocols

• Safe Torque Off (STO) safety function for machine protection

• 7 discrete inputs (positive/negative logic) + 3 discrete outputs (open collector)

• 3 analog inputs (voltage 0‑10V, bipolar ±10V, current 0‑20mA/4‑20mA)

• 1 configurable analog output (0‑20mA or 0‑10V)

• Configurable relay outputs (R1A/R1B/R1C/R2A/R2C) with up to 5A switching capacity

• IP20 protection for control cabinet installation

• Class 3C3 coated printed circuit boards for harsh environments

• 4‑quadrant operation with flux vector control without sensor

• Supports asynchronous and synchronous motor control profiles

• CANopen slave access

• Optional communication modules: CANopen, EtherCAT, Profibus DP V1, PROFINET, Ethernet Powerlink, EtherNet/IP, DeviceNet

Applications:

• Packaging machinery and material handling systems

• Conveyor speed control and OEM equipment

• Pump and fan control with energy‑saving operation (up to 30% energy savings)

• Textile and woodworking machinery

• General industrial automation and machine control

• Complex machines and OEM integration

Technical Specifications:

System Compatibility:

• Compatible with Schneider Electric Modicon M221, M241, M251, M340 controllers via Modbus or CANopen

• Supports third‑party controllers via Modbus serial or CANopen communication

• Configuration using SoMove software or integrated keypad (optional)

• Optional communication modules for extended fieldbus integration (EtherNet/IP, PROFINET, EtherCAT, etc.)

• Suitable for use with Altivar Machine ATV320 series accessories and options

Related Products:

• ATV320U07N4B – 0.75 kW book version (lower power)

• ATV320U11N4B – 1.1 kW book version (current model)

• ATV320U15N4B – 1.5 kW book version (higher power)

• ATV320U11N4C – 1.1 kW compact version (different form factor)

• VW3A3608 – CANopen communication module (optional)

• VW3A3627 – PROFINET communication module (optional)

• VW3A3621 – Profibus DP V1 communication module (optional)

• VW3A9533 – EMC conformity kit

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Altivar, and Modicon are trademarks of Schneider Electric SE.
