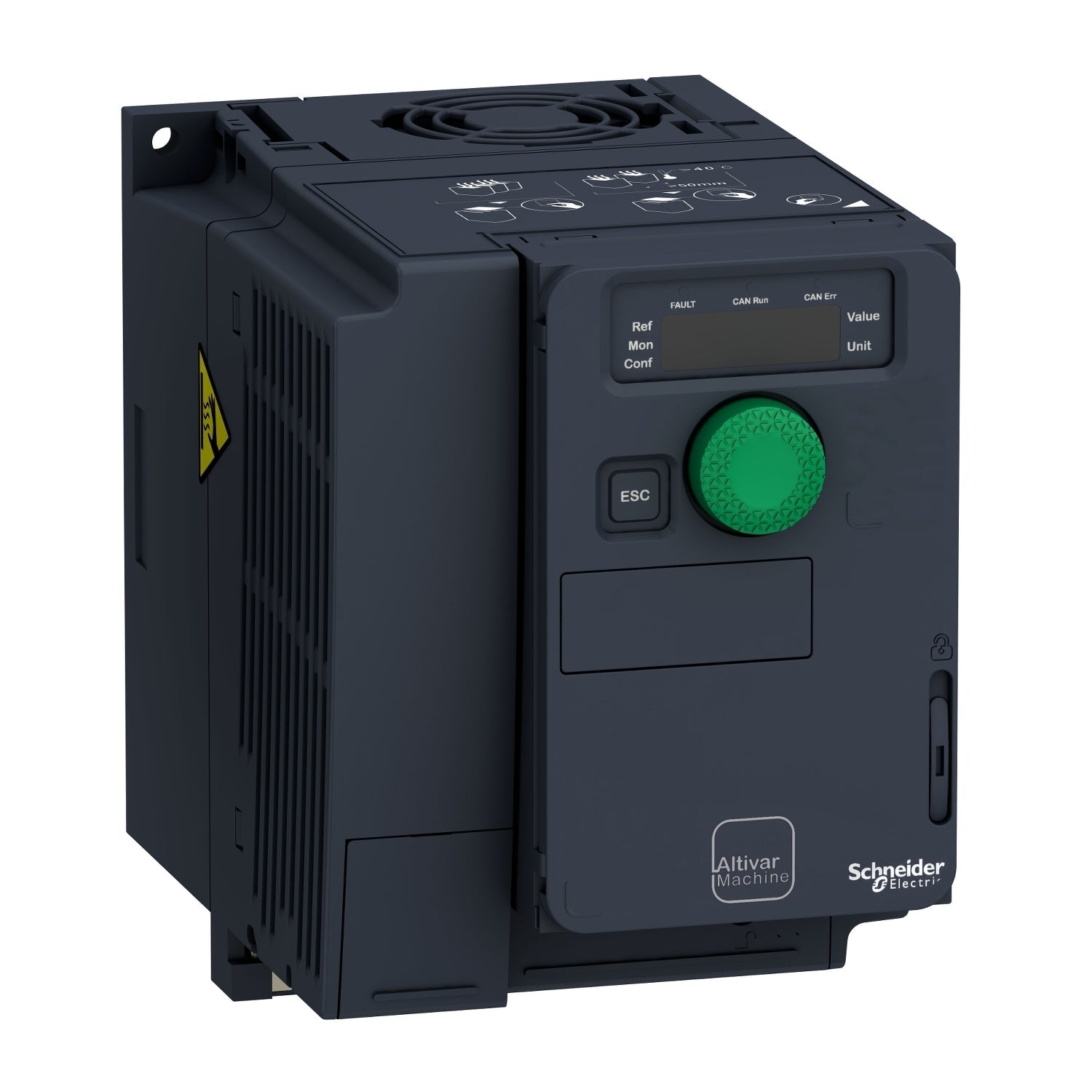

ATV320U11N4C Altivar Machine ATV320 1.1kW Compact AC Drive 380‑500V 3‑Phase | Schneider Electric

The Original New Schneider Electric ATV320U11N4C is a 1.1 kW (1.5 HP) variable speed drive from the Altivar Machine ATV320 series, designed for three‑phase synchronous and asynchronous motors. Its compact form factor enables space‑efficient wall mounting in OEM machinery and industrial automation systems. Designed for Original Equipment Manufacturers (OEMs), it meets simple and advanced application requirements for packaging, material handling, textile, material working, mechanical actuators, and conveying. Robust design with coated printed circuit boards extends machine availability in harsh environmental conditions, with ambient temperatures up to 60°C without additional cooling. Fully integrated with Schneider Electric's EcoStruxure Machine ecosystem via DTM for seamless configuration in SoMove and SoMachine software.

Core Engineering Highlights:
1.1 kW (1.5 HP) heavy duty | 3.0 A output current | 380‑500 V AC, 3‑phase input (±10-15%) | Compact format (105 × 142 × 158 mm) | Integrated Class C2 EMC filter | STO (Safe Torque Off) safety function | Modbus + CANopen built‑in | IP20 protection | 0.1‑599 Hz output frequency | 7 DI / 3 DO / 3 AI / 1 AO | Flux vector control without sensor | 1.3 kg weight

Key Features:

• Original New Schneider Electric ATV320U11N4C drive

• 1.1 kW (1.5 HP) heavy duty motor power with 3.0 A nominal output current

• Compact form factor (105 mm width) for space‑optimized wall mounting

• Integrated Class C2 EMC filter for reduced electromagnetic emissions

• STO (Safe Torque Off) safety function

• Built‑in Modbus serial and CANopen communication protocols

• Support for optional communication modules: PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet

• 7 discrete inputs (24 V DC, sink/source configurable)

• 3 discrete outputs (open collector)

• 3 analog inputs (voltage: 0-10 V, ±10 V; current: 0-20 mA, 4-20 mA)

• 1 configurable analog output (0-20 mA or 0-10 V)

• Flux vector control without sensor for high dynamic performance at very low speeds

• Extended frequency range up to 599 Hz for high‑speed motors

• Coated printed circuit boards for harsh environments up to 60°C

• IP20 protection for indoor control cabinet installation

• Wall mounting with vertical orientation (±10°)

• 4‑quadrant operation capability

• Controls asynchronous and synchronous motors, including IE2, IE3, and PM motors

• Conforms to IEC/EN 61800-5-1 and IEC/EN 61800-3 standards

• CE, UL, CSA, NOM, EAC, RCM certified

Applications:

• Conveyor speed control and material handling systems

• Packaging machinery and OEM equipment

• Textile and woodworking machinery

• Mechanical actuators and conveying applications

• Material working and processing equipment

• Fan and pump applications

• Compact machine automation requiring space‑saving installation

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M221, M241, M251, M340 controllers via Modbus or CANopen

• EcoStruxure Machine Expert (SoMachine) and SoMove software via DTM

• Optional communication modules for PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet

• Preventa safety modules for extended safety functionality

Related Products:

• ATV320U07N4C – 0.75 kW compact version (lower power)

• ATV320U11N4C – 1.1 kW compact version (current model)

• ATV320U15N4C – 1.5 kW compact version (higher power)

• VW3A3608 – CANopen communication module

• VW3A3627 – PROFINET communication module

• VW3A3621 – PROFIBUS DP V1 communication module

• VW3A9533 – EMC conformity kit
