ATV320U15N4B Altivar Machine ATV320 1.5kW Book AC Drive 380‑500V | Schneider Electric

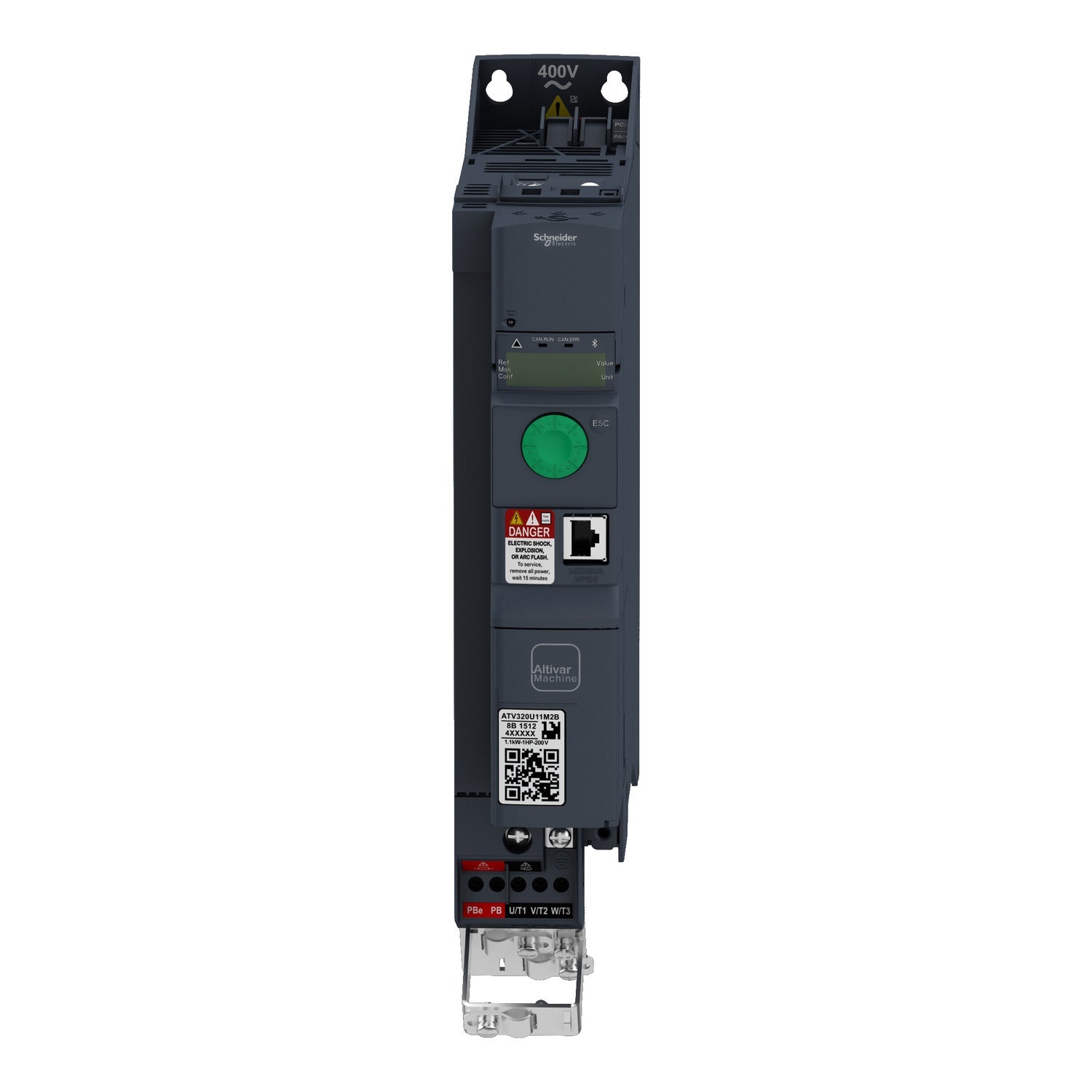

The Original New Schneider Electric ATV320U15N4B is a 1.5 kW (2 HP) variable speed drive from the Altivar Machine ATV320 series, designed for three-phase synchronous and asynchronous motors. Its book form factor enables space‑optimized vertical stacking in control cabinets, reducing panel footprint while delivering high power density. Integrated Class C2 EMC filter, robust coated PCBs (IEC 60721-3-3 class 3C3), and comprehensive safety functions (STO, SS1, SLS, SMS, GDL) make this drive suitable for demanding OEM and industrial automation applications. Fully integrated with Schneider Electric's EcoStruxure Machine ecosystem via DTM for seamless configuration in SoMove and SoMachine software.

Core Engineering Highlights:
1.5 kW (2 HP) heavy duty | 4.1 A output current | 380‑500 V AC, 3‑phase input (±10-15%) | Book format (45 × 325 × 245 mm) | Integrated Class C2 EMC filter | Safe Torque Off (STO), SS1, SLS, SMS, GDL | Modbus + CANopen built‑in | IP20 protection | 0.1‑599 Hz output frequency | 7 DI / 3 DO / 3 AI / 1 AO

Key Features:

• Original New Schneider Electric ATV320U15N4B drive

• 1.5 kW (2 HP) heavy duty motor power with 4.1 A nominal output current

• Book form factor for space‑optimized vertical stacking in automation cabinets

• Integrated Class C2 EMC filter for reduced electromagnetic emissions

• 5 integrated safety functions: STO (Safe Torque Off), SS1 (Safe Stop 1), SLS (Safe Limited Speed), SMS (Safe Maximum Speed), GDL (Guard Door Locking)

• Built‑in Modbus serial and CANopen communication protocols

• Support for optional communication modules: PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet

• 7 discrete inputs, 3 discrete outputs, 3 analog inputs, 1 configurable analog output

• Flux vector control without sensor for high dynamic performance and speed accuracy at very low speeds

• Extended frequency range up to 599 Hz for high‑speed motor applications

• Coated printed circuit boards (IEC 60721-3-3 class 3C3) for operation in harsh environments up to 60°C

• IP20 protection for indoor control cabinet installation

• Vertical panel mounting with 4 fixing holes

• Integrated braking chopper for dynamic braking applications

• Controls asynchronous and synchronous motors, including IE2, IE3, and PM motors

• Optimized for ventilation and pumping applications: up to 30% energy savings

• CE, UL, CSA, NOM, EAC, RCM certified

Applications:

• Conveyor speed control and material handling systems

• Pump and fan regulation with energy savings up to 30%

• Packaging machinery and OEM equipment

• Textile and woodworking machinery

• Mechanical actuators and hoisting applications

• Material working and processing equipment

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M221, M241, M251, M340 controllers via Modbus or CANopen

• EcoStruxure Machine Expert (SoMachine) and SoMove software via DTM

• Optional communication modules for PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet

• Preventa safety modules for extended safety functionality

Related Products:

• ATV320U11N4B – 1.1 kW book version (lower power)

• ATV320U15N4B – 1.5 kW book version (current model)

• ATV320U22N4B – 2.2 kW book version (higher power)

• VW3A3608 – CANopen communication module

• VW3A3627 – PROFINET communication module

• VW3A3621 – PROFIBUS DP V1 communication module

• VW3A9533 – EMC conformity kit

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Altivar, and EcoStruxure are trademarks of Schneider Electric SE.
