ATV320U30N4B Altivar Machine ATV320 3kW Book AC Drive 380‑500V | Schneider Electric

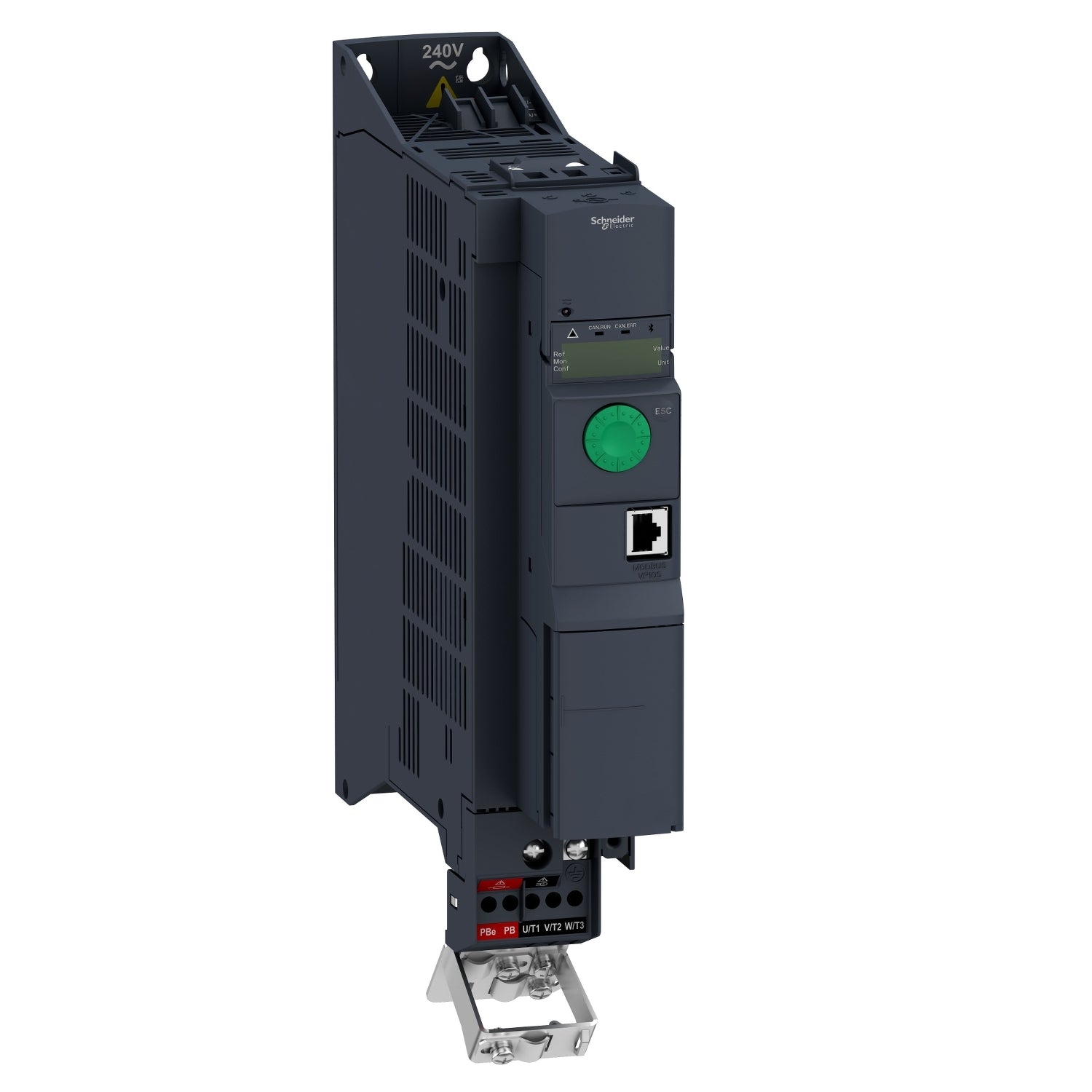

The Original New Schneider Electric ATV320U30N4B is a 3 kW (4 HP) variable speed drive from the Altivar Machine ATV320 series, designed for three‑phase synchronous and asynchronous motors. Its book form factor enables space‑optimized vertical stacking in automation cabinets, reducing panel footprint. Designed for Original Equipment Manufacturers (OEMs), it meets simple and advanced application requirements for packaging, material handling, textile, material working, mechanical actuators and hoisting. Robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards extends machine availability in harsh environmental conditions, with ambient temperatures up to 60°C without additional cooling. Fully integrated with Schneider Electric's EcoStruxure Machine ecosystem through DTM for seamless configuration in SoMove and SoMachine software.

Core Engineering Highlights:
3 kW (4 HP) heavy duty | 7.1 A output current | 380‑500 V AC, 3‑phase input | Book format (60 × 325 × 245 mm) | Integrated EMC filter (Class C2) | 5 integrated safety functions (STO, SS1, SLS, SMS, GDL) | Modbus + CANopen built‑in | IP20 protection | 0.1‑599 Hz output frequency | 7 DI / 3 DO / 3 AI / 1 AO

Key Features:

• Original New Schneider Electric ATV320U30N4B drive

• 3 kW (4 HP) heavy duty motor power with 7.1 A nominal output current

• Book form factor (60 mm width) for space‑optimized vertical stacking in automation cabinets

• Integrated EMC filter (Class C2) for reduced electromagnetic emissions

• 5 integrated safety functions: STO (Safe Torque Off), SS1 (Safe Stop 1), SLS (Safe Limited Speed), SMS (Safe Maximum Speed), GDL (Guard Door Locking)

• Built‑in Modbus serial and CANopen communication protocols

• Support for optional communication modules: PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet

• 7 discrete inputs (24 V DC, sink/source configurable)

• 3 discrete outputs (open collector)

• 3 analog inputs (voltage, differential voltage, current)

• 1 configurable analog output (current or voltage)

• Flux vector control without sensor for high dynamic performance at very low speeds

• Extended frequency range up to 599 Hz for high‑speed motors

• Coated printed circuit boards (IEC 60721-3-3 class 3C3) for harsh environments up to 60°C

• IP20 protection for indoor control cabinet installation

• Wall mounting with vertical orientation (±10°)

• 4‑quadrant operation capability

• Controls asynchronous and synchronous motors, including IE2, IE3, and PM motors

• Optimized for ventilation and pumping applications: up to 30% energy savings

• CE, UL, CSA, NOM, EAC, RCM certified

• Conforms to IEC/EN 61800-5-1 and IEC/EN 61800-3 standards

Applications:

• Conveyor speed control and material handling systems

• Packaging machinery and OEM equipment

• Textile and woodworking machinery

• Mechanical actuators and hoisting applications

• Material working and processing equipment

• Fan and pump applications

• Gantry cranes and carton packers

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M221, M241, M251, M340 controllers via Modbus or CANopen

• EcoStruxure Machine Expert (SoMachine) and SoMove software via DTM

• Optional communication modules for PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet

• Preventa safety modules for extended safety functionality

Related Products:

• ATV320U22N4B – 2.2 kW book version (lower power)

• ATV320U30N4B – 3 kW book version (current model)

• ATV320U40N4B – 4 kW book version (higher power)

• VW3A3608 – CANopen communication module

• VW3A3627 – PROFINET communication module

• VW3A3621 – PROFIBUS DP V1 communication module

• VW3A9533 – EMC conformity kit
