ATV320U55N4B Altivar Machine ATV320 5.5kW Book AC Drive 380‑500V | Schneider Electric

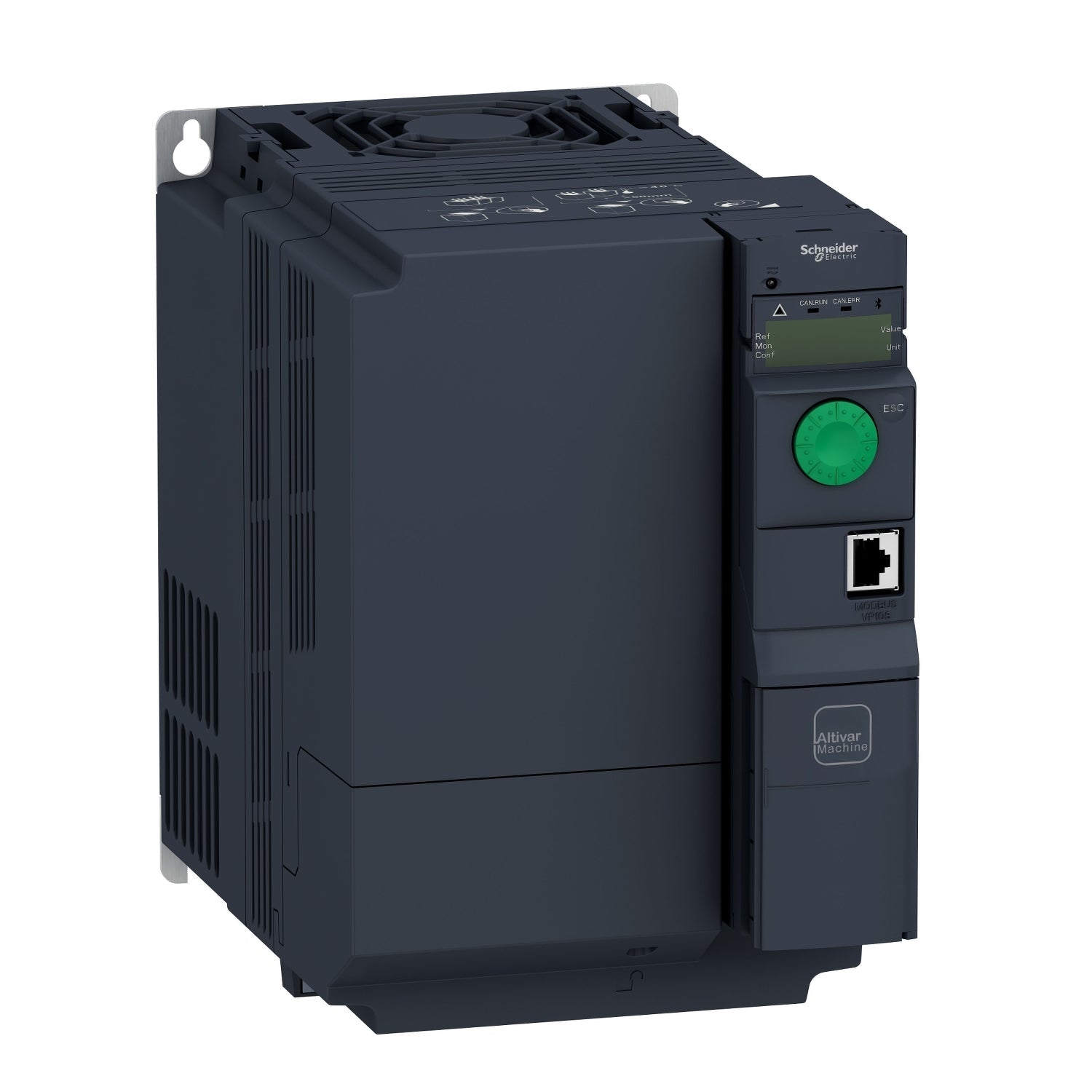

The Original New Schneider Electric ATV320U55N4B is a 5.5 kW (7.5 HP) variable speed drive from the Altivar Machine ATV320 series, designed for three‑phase synchronous and asynchronous motors. Its book form factor enables space‑optimized vertical stacking in automation cabinets, reducing panel footprint while delivering high power density for demanding OEM and industrial automation applications. Featuring coated printed circuit boards (IEC 60721-3-3 class 3C3), it extends machine availability in harsh environments up to 60°C without additional cooling. Designed for Original Equipment Manufacturers (OEMs), it meets simple and advanced application requirements for packaging, material handling, textile, material working, mechanical actuators and hoisting. Fully integrated with Schneider Electric's EcoStruxure Machine ecosystem via DTM for seamless configuration in SoMove and SoMachine software.

Core Engineering Highlights:
5.5 kW (7.5 HP) heavy duty | 14.3 A output current| 380‑500 V AC, 3‑phase input| Book format | Integrated Class C2 EMC filter| 5 integrated safety functions (STO, SS1, SLS, SMS, GDL)| Modbus + CANopen built‑in| IP20 protection| 0.1‑599 Hz output frequency| 7 DI / 3 DO / 3 AI / 1 AO| Coated PCBs for harsh environments up to 60°C

Key Features:

• Original New Schneider Electric ATV320U55N4B drive

• 5.5 kW (7.5 HP) heavy duty motor power with 14.3 A nominal output current

• Book form factor for space‑optimized vertical stacking in automation cabinets

• Integrated Class C2 EMC filter for reduced electromagnetic emissions

• 5 integrated safety functions: STO (Safe Torque Off), SS1 (Safe Stop 1), SLS (Safe Limited Speed), SMS (Safe Maximum Speed), GDL (Guard Door Locking)

• Built‑in Modbus serial and CANopen communication protocols

• Support for optional communication modules: PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet

• 7 discrete inputs (24 V DC, sink/source configurable)

• 3 discrete outputs (open collector)

• 3 analog inputs (voltage, bipolar differential voltage, current)

• 1 software‑configurable analog output (current or voltage)

• Configurable relay outputs (R1A, R1B, R1C, R2A, R2C)

• Flux vector control without sensor for high dynamic performance at very low speeds

• Extended frequency range up to 599 Hz for high‑speed motor applications

• Coated printed circuit boards (IEC 60721-3-3 class 3C3) for harsh environments up to 60°C

• IP20 protection for indoor control cabinet installation

• Wall mounting with vertical orientation (±10°)

• Integrated braking chopper for dynamic braking applications

• Controls asynchronous and synchronous motors, including IE2, IE3, and PM motors

• Optimized for ventilation and pumping applications: up to 30% energy savings

• Conforms to IEC/EN 61800-5-1 and IEC/EN 61800-3 standards

• CE, UL, CSA, NOM, EAC, RCM certified

Applications:

• Conveyor speed control and material handling systems

• Packaging machinery and OEM equipment

• Textile and woodworking machinery

• Mechanical actuators and hoisting applications

• Material working and processing equipment

• Fan and pump applications

• Gantry cranes and carton packers

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M221, M241, M251, M340 controllers via Modbus or CANopen

• EcoStruxure Machine Expert (SoMachine) and SoMove software via DTM

• Optional communication modules for PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet

• Preventa safety modules for extended safety functionality

Related Products:

• ATV320U40N4B – 4 kW book version (lower power)

• ATV320U55N4B – 5.5 kW book version (current model)

• ATV320U75N4B – 7.5 kW book version (higher power)

• VW3A3608 – CANopen communication module

• VW3A3627 – PROFINET communication module

• VW3A3621 – PROFIBUS DP V1 communication module

• VW3A9533 – EMC conformity kit

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Altivar, and EcoStruxure are trademarks of Schneider Electric SE.
