ATV320U55N4C Altivar Machine ATV320 5.5kW Compact AC Drive 380‑500V | Schneider Electric

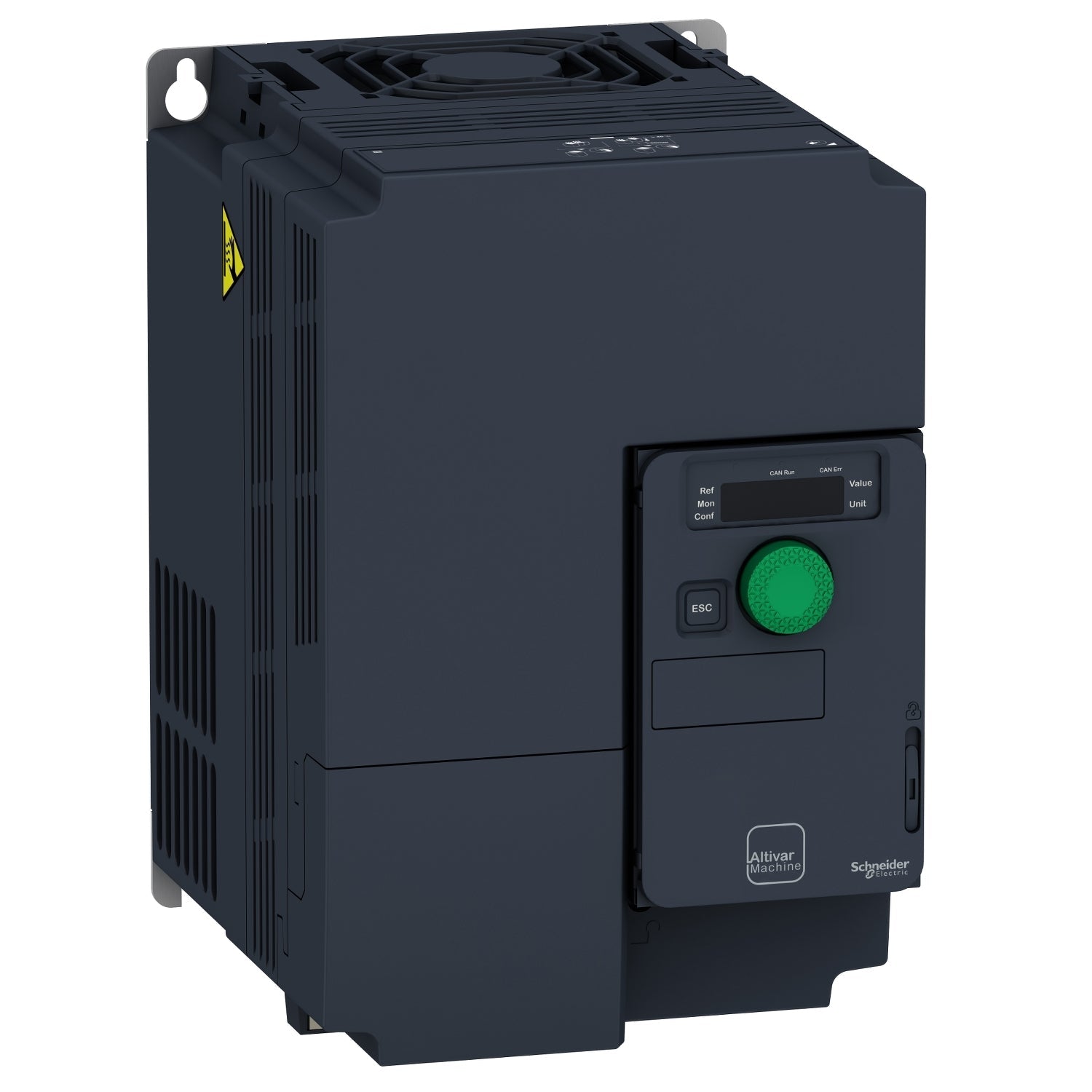

The Original New Schneider Electric ATV320U55N4C is a 5.5 kW (7.5 HP) variable speed drive from the Altivar Machine ATV320 series, designed for three‑phase synchronous and asynchronous motors. Its compact form factor allows vertical stacking of drives inside machine frames, saving valuable control cabinet space. Designed for Original Equipment Manufacturers (OEMs), it meets simple and advanced application requirements for packaging, material handling, textile, material working, mechanical actuators, and hoisting. Robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards extends machine availability in harsh environmental conditions, with ambient temperatures up to 60°C without additional cooling. Fully integrated with Schneider Electric's EcoStruxure Machine ecosystem via DTM for seamless configuration in SoMove and SoMachine software.

Core Engineering Highlights:
5.5 kW (7.5 HP) heavy duty | 14.3 A output current | 380‑500 V AC, 3‑phase input | Compact format (150 × 232 × 172 mm) | Integrated Class C2 EMC filter | Flux vector control without sensor | Modbus + CANopen built‑in | IP20 protection | 0.1‑599 Hz output frequency | 7 DI / 3 DO / 3 AI / 1 AO | 2.2 kg weight | Forced convection cooling

Key Features:

• Original New Schneider Electric ATV320U55N4C drive

• 5.5 kW (7.5 HP) heavy duty motor power with 14.3 A nominal output current

• 380‑500 V AC, 3‑phase input (‑15% / +10%)

• Compact form factor (150 mm width) for space‑optimized wall mounting

• Integrated Class C2 EMC filter for reduced electromagnetic emissions

• Flux vector control without sensor for high dynamic performance at very low speeds

• Extended frequency range up to 599 Hz for high‑speed motors

• Coated printed circuit boards (IEC 60721-3-3 class 3C3) for harsh environments up to 60°C

• Built‑in Modbus serial and CANopen communication protocols

• Support for optional communication modules: PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet, Ethernet Powerlink

• 7 discrete inputs (24 V DC, sink/source configurable)

• 3 discrete outputs (open collector, 30 V DC, 100 mA)

• 3 analog inputs (voltage: 0-10 V, ±10 V; current: 0-20 mA, 4-20 mA)

• 1 configurable analog output (0-20 mA or 0-10 V)

• Configurable relay outputs (R1/R2) with up to 5A switching capacity

• 4‑quadrant operation capability

• Forced convection cooling for reliable operation in demanding environments

• IP20 protection for indoor control cabinet installation

• Wall mounting with vertical orientation (±10°)

• 4‑quadrant operation

• Parallel connection of motors and special drives using voltage/frequency ratio

• Static speed accuracy and energy saving for open‑loop synchronous motors

• 170‑200% transient overtorque capability

• Adjustable switching frequency: 2‑16 kHz

• Conforms to IEC/EN 61800-5-1 and IEC/EN 61800-3 standards

• CE, UL, CSA, NOM, EAC, RCM certified

Applications:

• Conveyor speed control and material handling systems

• Packaging machinery and OEM equipment

• Textile and woodworking machinery

• Material working and mechanical actuators

• Hoisting applications

• Fan and pump applications

• Material handling systems

• Gantry cranes and carton packers

Technical Specifications:

System Compatibility:

• Schneider Electric Modicon M221, M241, M251, M340 controllers via Modbus or CANopen

• EcoStruxure Machine Expert (SoMachine) and SoMove software via DTM

• Optional communication modules for PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet, Ethernet Powerlink

• Preventa safety modules for extended safety functionality

• External braking resistors, line chokes, motor chokes, additional EMC filters (depending on drive rating)

Related Products:

• ATV320U40N4C – 4 kW compact version (lower power)

• ATV320U75N4C – 7.5 kW compact version (higher power)

• ATV320U55N4B – 5.5 kW book format version

• VW3A3608 – CANopen communication module

• VW3A3627 – PROFINET communication module

• VW3A3621 – PROFIBUS DP V1 communication module

• VW3A9533 – EMC conformity kit
