ATV320U75N4C Altivar Machine ATV320 7.5kW Compact AC Drive 380‑500V | Schneider Electric

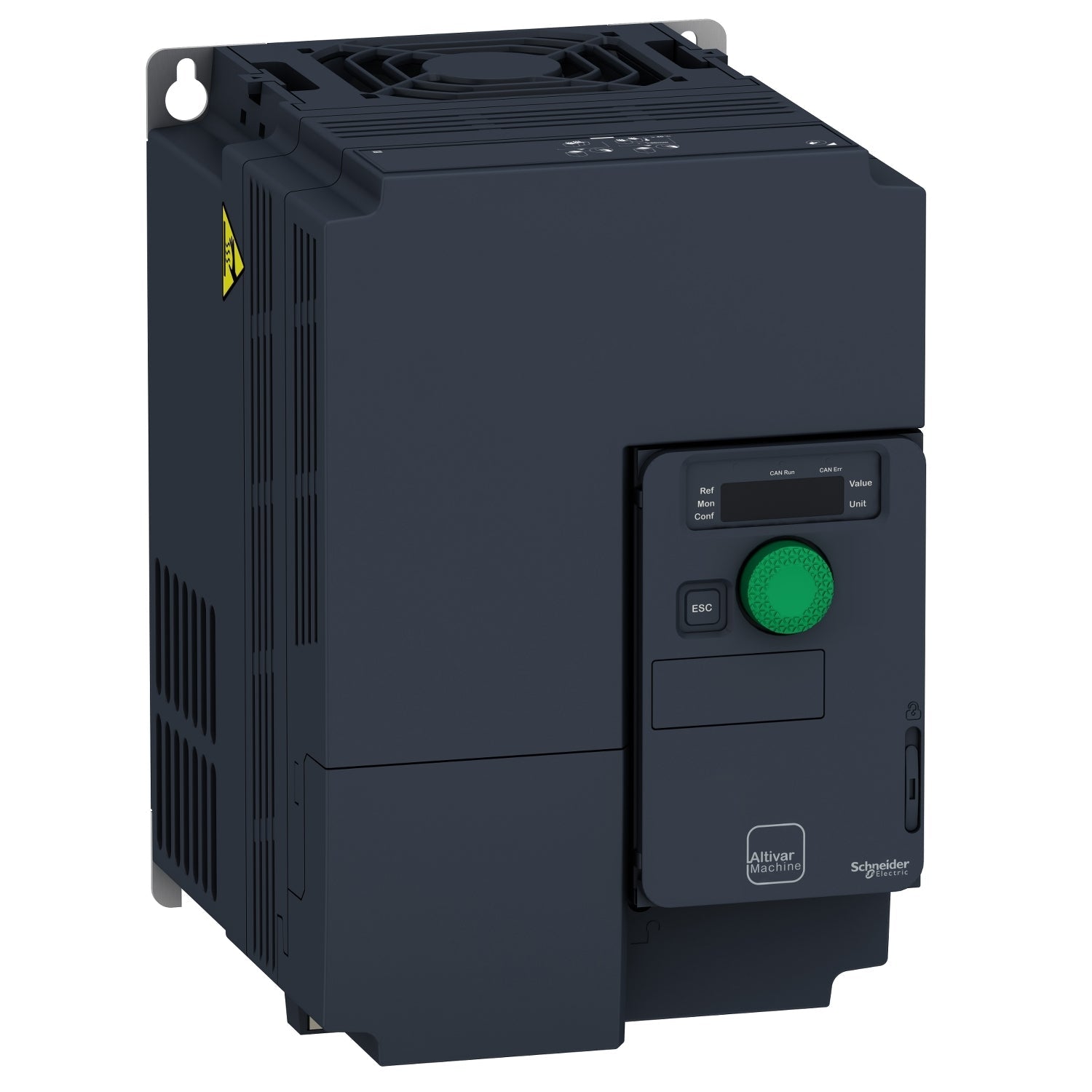

The Original New Schneider Electric ATV320U75N4C is a 7.5 kW (10 HP) variable speed drive from the Altivar Machine ATV320 series, designed for three‑phase synchronous and asynchronous motors. Its compact form factor allows vertical stacking of drives inside machine frames, saving valuable control cabinet space. Designed for Original Equipment Manufacturers (OEMs), it meets simple and advanced application requirements for packaging, material handling, textile, material working, mechanical actuators, and hoisting. Robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards extends machine availability in harsh environmental conditions, with ambient temperatures up to 60°C without additional cooling. Fully integrated with Schneider Electric's EcoStruxure Machine ecosystem via DTM for seamless configuration in SoMove and SoMachine software.

Core Engineering Highlights:
7.5 kW (10 HP) heavy duty | 17 A output current | 380‑500 V AC, 3‑phase input | Compact format (150 × 232 × 172 mm) | Integrated EMC filter | STO (Safe Torque Off) safety function | Modbus + CANopen built‑in | IP20 protection | 0.1‑599 Hz output frequency | 7 DI / 3 DO / 3 AI / 1 AO | Flux vector control without sensor | 2.2 kg weight

Key Features:

• Original New Schneider Electric ATV320U75N4C drive

• 7.5 kW (10 HP) heavy duty motor power with 17 A nominal output current

• Compact form factor for space‑optimized wall mounting (150 mm width)

• Integrated EMC filter for reduced electromagnetic emissions

• STO (Safe Torque Off) safety function

• Built‑in Modbus serial and CANopen communication protocols

• Support for optional communication modules: PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet

• 7 discrete inputs, 3 discrete outputs, 3 analog inputs, 1 analog output

• Flux vector control without sensor for high dynamic performance at very low speeds

• Extended frequency range up to 599 Hz for high‑speed motors

• Coated printed circuit boards (IEC 60721-3-3 class 3C3) for harsh environments up to 60°C

• IP20 protection for indoor control cabinet installation

• Wall mounting with vertical orientation (±10°)

• 4‑quadrant operation

• Parallel connection of motors and special drives using voltage/frequency ratio

• Static speed accuracy and energy saving for open‑loop synchronous motors

• Adjustable switching frequency: 2‑16 kHz (4‑16 kHz with derating)

• CE, UL, CSA, NOM, EAC, RCM certified

• Conforms to IEC/EN 61800-5-1 and IEC/EN 61800-3 standards

Applications:

• Conveyor speed control and material handling systems

• Packaging machinery and OEM equipment

• Textile and woodworking machinery

• Mechanical actuators and hoisting applications

• Material working and processing equipment

• Fan and pump applications

• Gantry cranes and carton packers

Technical Specifications:

I/O Specifications:

Communication:

• Modbus serial (built‑in)

• CANopen (built‑in)

• Optional: PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet, Ethernet Powerlink

Operating Conditions:

System Compatibility:

• Schneider Electric Modicon M221, M241, M251, M340 controllers via Modbus or CANopen

• EcoStruxure Machine Expert (SoMachine) and SoMove software via DTM

• Optional communication modules for PROFINET, EtherNet/IP, EtherCAT, PROFIBUS DP V1, DeviceNet

• Preventa safety modules for extended safety functionality

Related Products:

• ATV320U55N4C – 5.5 kW compact version (lower power)

• ATV320U75N4C – 7.5 kW compact version (current model)

• ATV320D11N4C – 11 kW compact version (higher power)

• VW3A3608 – CANopen communication module

• VW3A3627 – PROFINET communication module

• VW3A3621 – PROFIBUS DP V1 communication module

• VW3A9533 – EMC conformity kit
