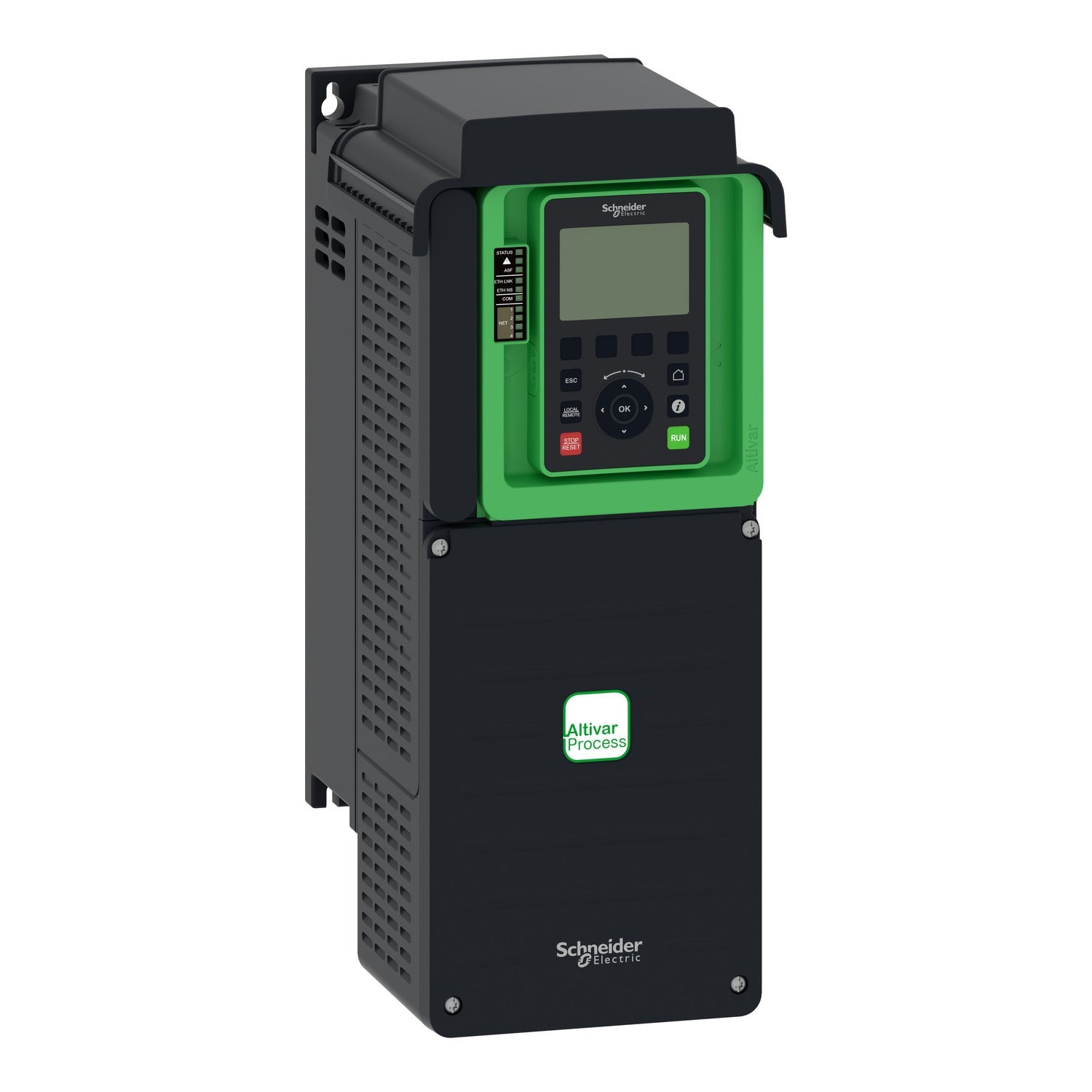

ATV630D11N4 Altivar Process ATV630 11kW 15hp IP21 VFD | Schneider Electric

The Original New Schneider Electric ATV630D11N4 is an 11 kW (15 hp) variable speed drive from the Altivar Process ATV600 series, engineered for demanding industrial process applications including pumps, fans, and compressors. Part of the Altivar Process ATV600 family, this drive delivers embedded process monitoring, energy efficiency, and reliable motor performance for three-phase asynchronous, synchronous, permanent magnet, and synchronous reluctance motors. Featuring an IP21 enclosure with UL Type 1 rating, integrated EMC filter, and built-in Ethernet with Modbus TCP, it provides seamless integration into industrial automation systems for water/wastewater, oil and gas, mining, and food and beverage applications.

Core Engineering Highlights:
11 kW (15 hp) normal duty / 7.5 kW (10 hp) heavy duty | 23.5A continuous output current (Normal Duty) / 16.5A (Heavy Duty) at 4 kHz | 380-480V 3-phase input (–15% / +10%) | IP21 / UL Type 1 enclosure | Integrated EMC filter (Category C2/C3) | STO (Safe Torque Off) SIL3 safety function | 0.1-599 Hz output frequency | Built-in Ethernet + Modbus serial | 6.5 kg weight | 171 x 409 x 233 mm (W x H x D) | Forced convection cooling

Key Features:

• Original New Schneider Electric ATV630D11N4 drive

• 11 kW (15 hp) normal duty and 7.5 kW (10 hp) heavy duty power rating

• 380-480V 3-phase input, 50/60 Hz

• 23.5A continuous output current at 4 kHz (Normal Duty)

• IP21 enclosure conforming to IEC 61800-5-1 and UL Type 1 conforming to UL 508C

• Integrated EMC filter (Category C2 up to 50m, Category C3 up to 150m)

• Built-in Ethernet port with Modbus TCP and Modbus serial communication

• STO (Safe Torque Off) safety function certified to SIL3

• Forced convection cooling for reliable operation in demanding environments

• Supports asynchronous, synchronous, permanent magnet, and synchronous reluctance motors

• Embedded process monitoring with energy dashboard and Stop and Go function reducing energy consumption

• Asset monitoring and protection with drift detection

• Wall mounting design with vertical orientation

• 0.1-599 Hz output frequency range

• Switching frequency adjustable 2-12 kHz (4-12 kHz with derating)

• Operating temperature: –15°C to +50°C (up to 60°C with derating)

• CE, UL, CSA, TÜV, DNV-GL, ATEX zone 2/22 certified

• Conforms to IEC/EN 61800-5-1 and IEC/EN 61800-3 standards

Applications:

• Pump speed regulation in water/wastewater treatment

• Fan and ventilation systems

• Compressor control

• Industrial process automation

• Material handling and conveyor systems

• Oil and gas industry applications

• Mining and minerals processing

• Food and beverage processing

Technical Specifications:

• Rated Supply Voltage: 380-480V (–15% / +10%), 3-phase

• Supply Frequency: 50/60 Hz (±5%)

• Prospective Line Isc: 50 kA

• Output Voltage: ≤ power supply voltage

• Output Frequency: 0.1-599 Hz

Control & Protection:

Physical & Environmental:

Communication:

Certifications & Compliance:

• CE, UL, CSA, TÜV, DNV-GL, ATEX zone 2/22 certified

• Green Premium product, RoHS and REACH compliant

• Meets IEC 61800-5-1, UL 508C, EN/IEC 61800-3 standards

• Total lifecycle Carbon footprint: 3,765 kg CO₂ eq.

• Packaging made with minimum 70% recycled cardboard

System Compatibility:

• Schneider Electric Modicon M340, M580, and other controllers via Ethernet/Modbus

• EcoStruxure Control Expert and SoMove configuration software

• PROFIBUS DP V1, PROFINET, DeviceNet, CANopen, and other fieldbus networks (via option cards)

Related Products:

• ATV630D07N4 – 7.5 kW (10 hp) version (lower power)

• ATV630D11N4 – 11 kW (15 hp) version (current model)

• ATV630D15N4 – 15 kW (20 hp) version (higher power)

• ATV630D18N4 – 18.5 kW (25 hp) version (higher power)

• VW3A1111 – Ethernet/IP communication module

• VW3A3608 – CANopen communication module

• VW3A3627 – PROFINET communication module

• VW3A3621 – PROFIBUS DP V1 communication module

• VW3A9533 – EMC conformity kit
