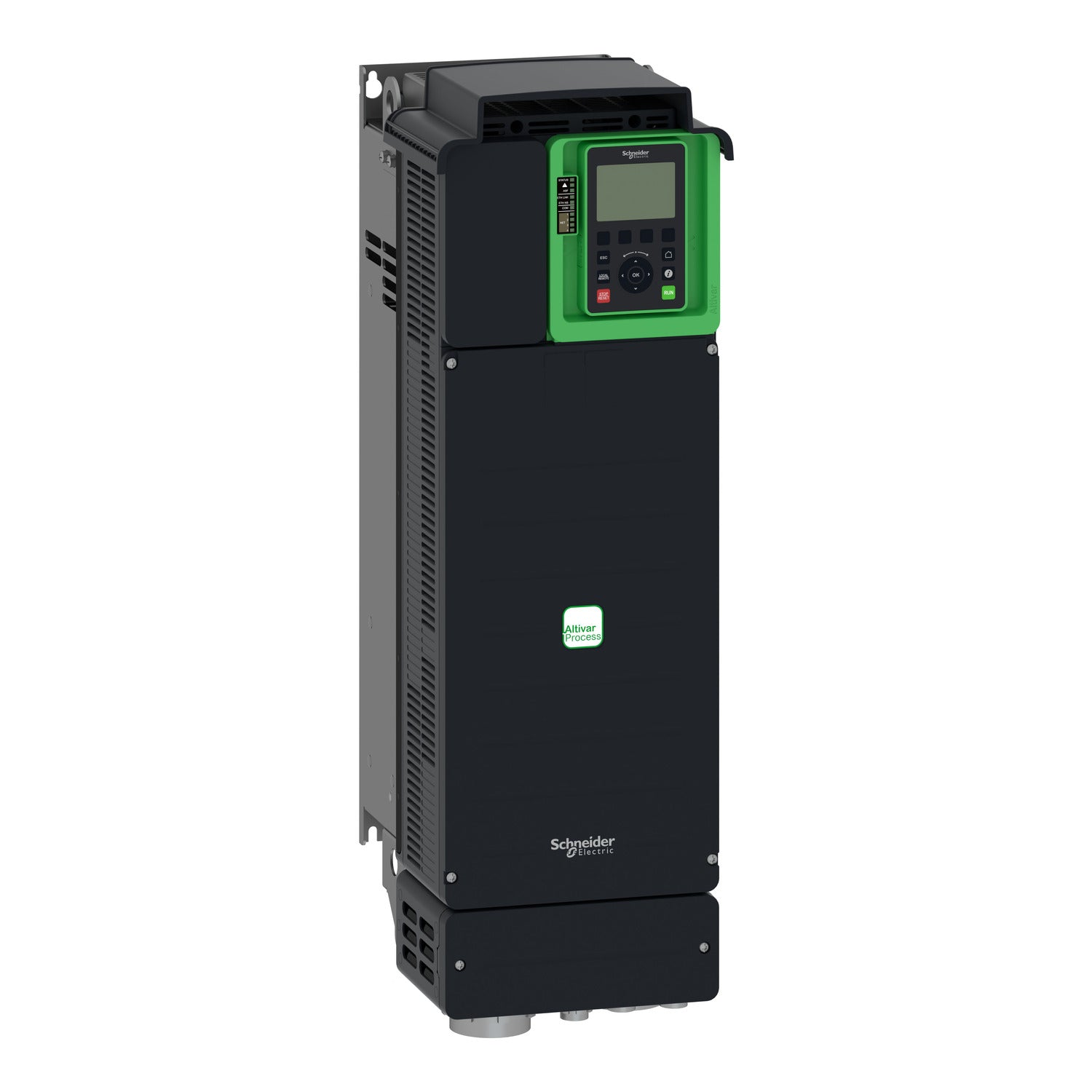

Schneider ATV630D30N4 Altivar Process 30kW Variable Speed Drive

Schneider Electric Altivar Process ATV630 is a variable speed drive for three‑phase asynchronous and synchronous motors. Rated power 30 kW (40 hp) at 380‑480 V, 3‑phase. Designed for industrial process applications requiring pump, fan, and compressor control. IP21 / UL Type 1 enclosure.

Applications:

• Pump speed regulation

• Fan and ventilation systems

• Compressor control

• Industrial process automation

Technical Specifications:

• Product type: Variable speed drive (VFD)

• Rated motor power: 30 kW (40 hp)

• Output current: 57 A

• Supply voltage: 3-phase 380–480 V AC, 50/60 Hz

• Output frequency: 0.1–500 Hz

• Overload capability: up to 120% for 60 seconds (heavy duty)

• EMC filter: Integrated

• Safety function: STO (Safe Torque Off)

• Communication interfaces: Modbus, Ethernet (built‑in)

• Digital inputs: 6

• Analogue inputs: 3

• Relay outputs: 3

• Protection rating: IP21 / UL Type 1

• Dimensions (H × W × D): approx. 710 × 310 × 290 mm

• Weight: approx. 38 kg

• Operating temperature: -10°C to +50°C

System Integration:

• This drive belongs to the Altivar Process ATV600 series.

• Configuration is performed using Schneider Electric SoMove software or the integrated graphic display terminal.

• Detailed wiring, parameter settings, and installation requirements are described in the product hardware manual.

Standards & Compliance:
Refer to manufacturer official documentation for certification and compliance details.

Related Products:

• ATV630D22N4 – 22 kW (30 hp) version

• ATV630D30N4 – 30 kW (40 hp) version (current model)

• ATV630D37N4 – 37 kW (50 hp) version

• VW3A1111 – Ethernet/IP communication module (optional)
