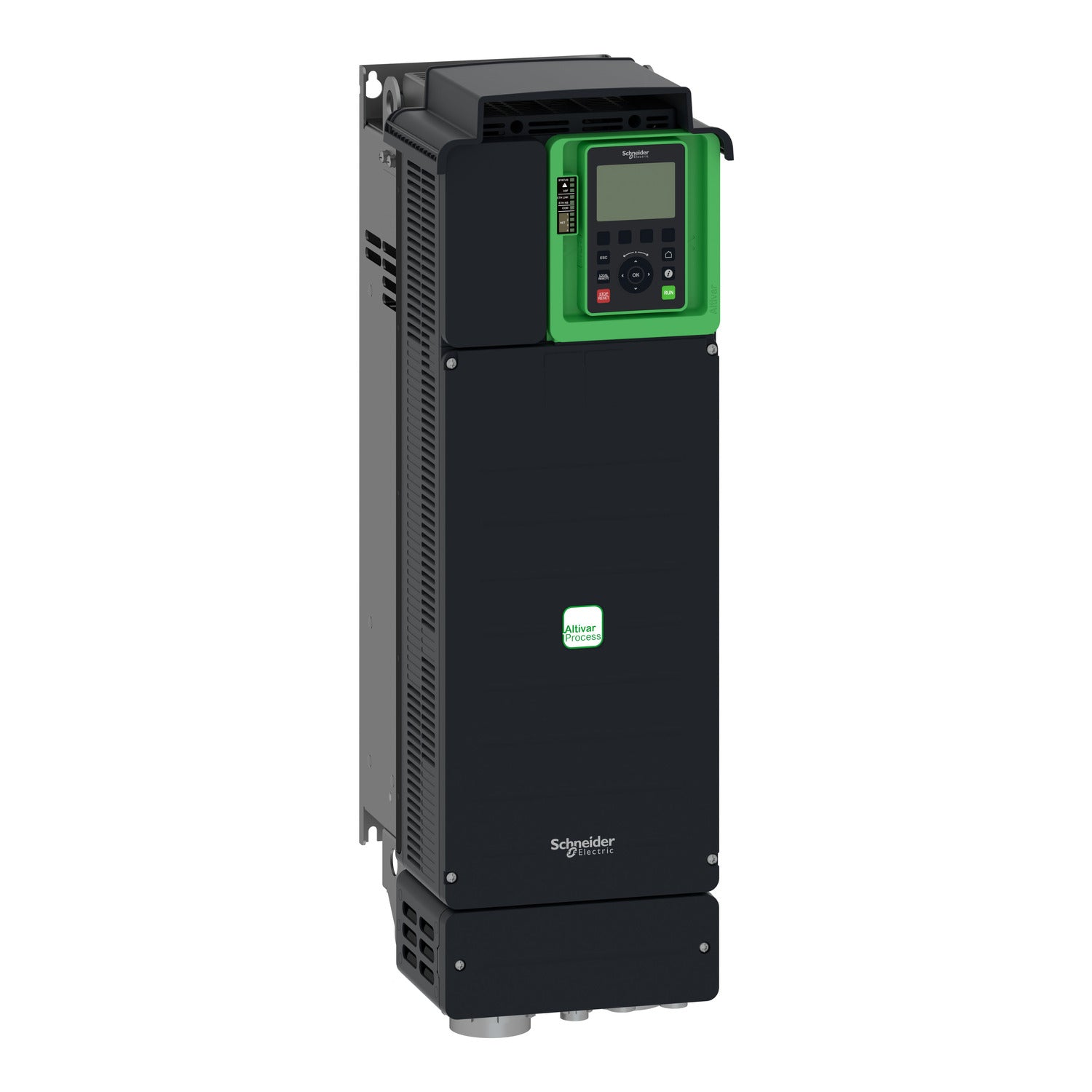

ATV630D45N4 Altivar Process ATV630 45kW 60hp IP21 VFD | Schneider Electric

The Original New Schneider Electric ATV630D45N4 is a 45 kW (60 hp) variable speed drive from the Altivar Process ATV600 series, engineered for demanding industrial process applications including pumps, fans, and compressors. Part of the Altivar Process ATV600 family, this drive delivers embedded process monitoring, energy efficiency, and reliable motor performance for three-phase asynchronous, synchronous, permanent magnet, and synchronous reluctance motors. Featuring an IP21 enclosure with UL Type 1 rating, integrated EMC filter, and built‑in Ethernet with Modbus TCP, it provides seamless integration into industrial automation systems for water/wastewater, oil and gas, mining, and food and beverage applications.

Core Engineering Highlights:

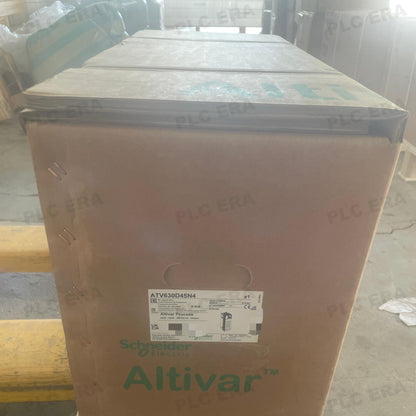

45 kW (60 hp) normal duty / 37 kW (50 hp) heavy duty | 380‑480V 3‑phase input | 88A continuous output current (Normal Duty) / 74.5A (Heavy Duty) at 4 kHz | IP21 / UL Type 1 enclosure | Integrated EMC filter (Category C2/C3) | STO (Safe Torque Off) SIL3 safety function | 0.1‑599 Hz output frequency | Built‑in Ethernet + Modbus serial | 28.7 kg weight | 226 x 673 x 271 mm (W x H x D)

Key Features:

• Original New Schneider Electric ATV630D45N4 drive

• 45 kW (60 hp) normal duty and 37 kW (50 hp) heavy duty power rating

• 380‑480V 3‑phase input, 50/60 Hz

• 88A continuous output current at 4 kHz (Normal Duty)

• IP21 enclosure conforming to IEC 61800-5-1 and UL Type 1 conforming to UL 508C

• Integrated EMC filter (Category C2 up to 50m, Category C3 up to 150m)

• Built‑in Ethernet port with Modbus TCP and Modbus serial communication

• STO (Safe Torque Off) safety function certified to SIL3

• Forced convection cooling for reliable operation in demanding environments

• Supports asynchronous, synchronous, permanent magnet, and synchronous reluctance motors

• Embedded process monitoring with energy dashboard and Stop and Go function reducing energy consumption up to 30%

• Wall mounting design with vertical orientation (±10°)

• 6 digital inputs, 3 analog inputs, 2 analog outputs

• Supports optional communication modules: PROFIBUS DP V1, PROFINET, DeviceNet, CANopen, BACnet MS/TP, Ethernet Powerlink

• ATEX zone 2/22, CSA, TÜV, DNV-GL, UL certified

• Operating temperature: –15°C to +50°C (up to 60°C with derating)

• Conforms to IEC/EN 61800-5-1 and IEC/EN 61800-3 standards

Applications:

• Pump speed regulation in water/wastewater treatment

• Fan and ventilation systems

• Compressor control

• Industrial process automation

• Material handling and conveyor systems

• Oil and gas industry applications

• Mining and minerals processing

• Food and beverage processing

Technical Specifications:

Power & Voltage:

• Rated Supply Voltage: 380‑480V (–15% / +10%), 3‑phase

• Supply Frequency: 50/60 Hz (±5%)

• Prospective Line Isc: 50 kA

• Output Voltage: ≤ power supply voltage

• Output Frequency: 0.1‑599 Hz

Control & Protection:

Physical & Environmental:

Communication:

Certifications & Compliance:

• CE, UL, CSA, TÜV, DNV‑GL, ATEX zone 2/22 certified

• Green Premium product, RoHS and REACH compliant

• Meets IEC 61800-5-1, UL 508C, EN/IEC 61800-3 standards

• GTIN: 3606480701436

System Compatibility:

• Schneider Electric Modicon M340, M580, and other controllers via Ethernet/Modbus

• EcoStruxure Control Expert and SoMove configuration software

• PROFIBUS DP V1, PROFINET, DeviceNet, CANopen, and other fieldbus networks (via option cards)

Related Products:

• ATV630D37N4 – 37 kW (50 hp) version (lower power)

• ATV630D45N4 – 45 kW (60 hp) version (current model)

• ATV630D55N4 – 55 kW (75 hp) version (higher power)

• VW3A1111 – Ethernet/IP communication module

• VW3A3608 – CANopen communication module

• VW3A3627 – PROFINET communication module

• VW3A3621 – PROFIBUS DP V1 communication module

• Fan kit and graphic display terminal accessories

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Schneider Electric, Altivar, and EcoStruxure are trademarks of Schneider Electric SE.
